Color Can Be Customized Insert Tricone Bit Rock Bit Drill Mining TCI Bits

YANTAI PANDA EQUIPMENT CO., LTD.
  • Warranty：1year
  • Type：Drill Tools
  • Application：Water or Oil Well Drilling,
  • Certification：CE, ISO9001: 2000, API
  • Condition：New
  • Diameter：3 3,4"~26"

Base Info

  • Bearing Type：Sealed and Non-Sealed Bearing
  • Material：Tungsten Carbide, High Manganese Steel
  • Processing Type：Forging
  • Pressure：High Pressure
  • Transfer：Air,Sea,Express
  • Color：Request
  • Advantage：High Performance
  • Product Name：Tricone Bit
  • Inserts Design：Spherical; Ballistic; Parabolic
  • Transport Package：Wooden Box or as Customers Inquire
  • Specification：TCI or Steel Tooth
  • Trademark：PANDA
  • Origin：Shandong China
  • HS Code：82071990
  • Production Capacity：2000 Pieces , Week

Description

 WOBRPMApplication(KN/mm)(r/min)IADC 0.3-0.75200-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk111/114/115   116/117 0.35-0.8150-80very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk121 0.3-0.85200-80soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone124/125  180-60131 0.3-0.95180-80soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds136/137 0.35-1.0120-60211/241 0.3-0.95180-80medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.216/217 0.4-1.0100-60246/247 0.4-1.080-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite321 0.4-1.0150-70medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble324 0.4-1.0120-50437/447/435 0.35-0.9240-70very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone517/527/515 0.35-1.0220-60soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone537/547/535 0.45-1.0220-50soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds617/615 0.45-1.1200-50medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite637/635 0.5-1.1180-40hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marbleNote: Above limits of WOB and RRPM should not be used simultaneously
Diameter:SizeSteel tooth bitTCI bitinmmWeight(kgs)Weight(kgs)3 7/898.4564 5/8117.566.55 7/8149.217186152.41819.56 1/2165.119227 7/82002929.58 1/2215.935388 3/4222.236409 1/2241.357599 7/8250.8586010 5/8269.9667412 1/4311.18511113 5/8346.111812014 3/4374.614016017 1/2444.52302552050842844322558.852056026660.4720810

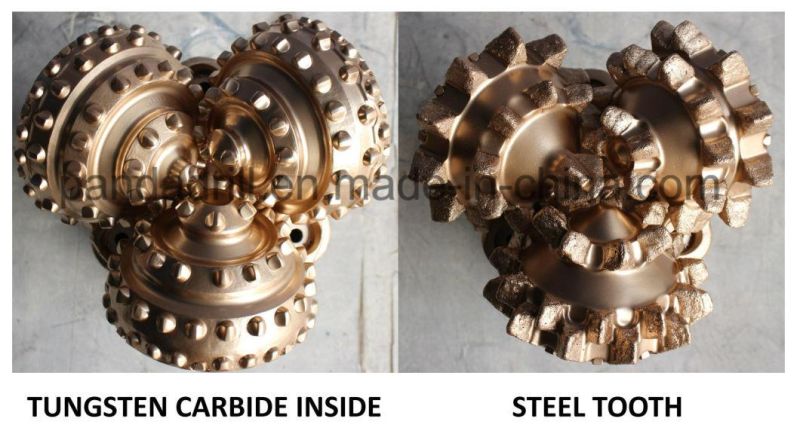

Different Type:
Color Can Be Customized Insert Tricone Bit Rock Bit Drill Mining TCI Bits

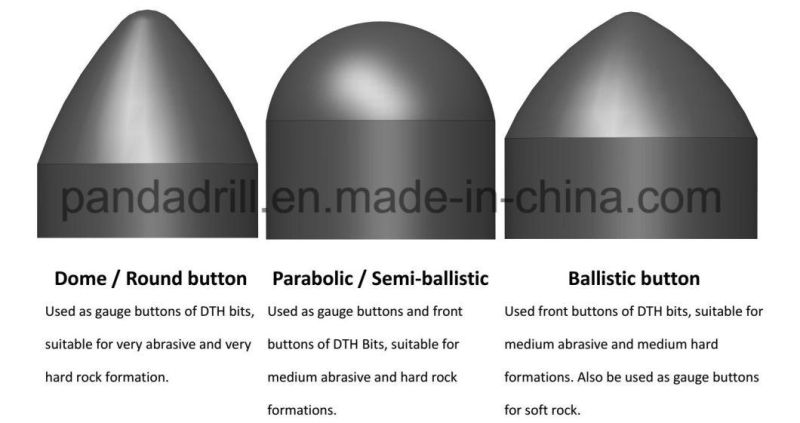

Different Button Shapes:
Color Can Be Customized Insert Tricone Bit Rock Bit Drill Mining TCI Bits
Color Can Be Customized Insert Tricone Bit Rock Bit Drill Mining TCI Bits
Color Can Be Customized Insert Tricone Bit Rock Bit Drill Mining TCI Bits
FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?


A: Sure, welcome, here is our address: Yantai, Shandong.
