• Transport Package：Export Package
• Trademark：UT
• Origin：Shandong China
• Production Capacity：1500 Sets, Month

Basic Info.

Transport Package Export Package Trademark UT Origin Shandong China Production Capacity 1500 Sets/ Month

Product Description

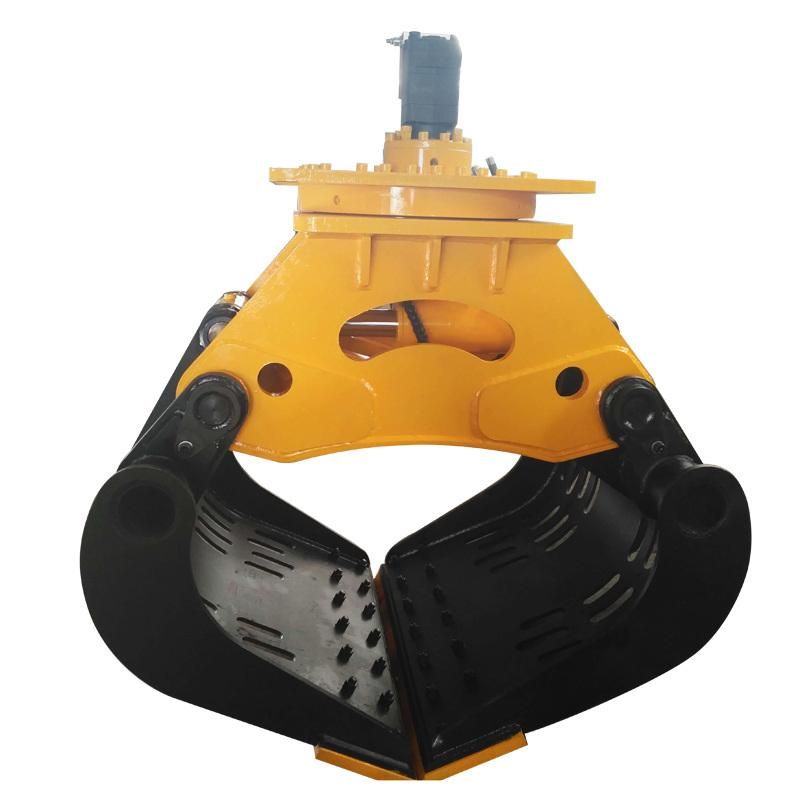

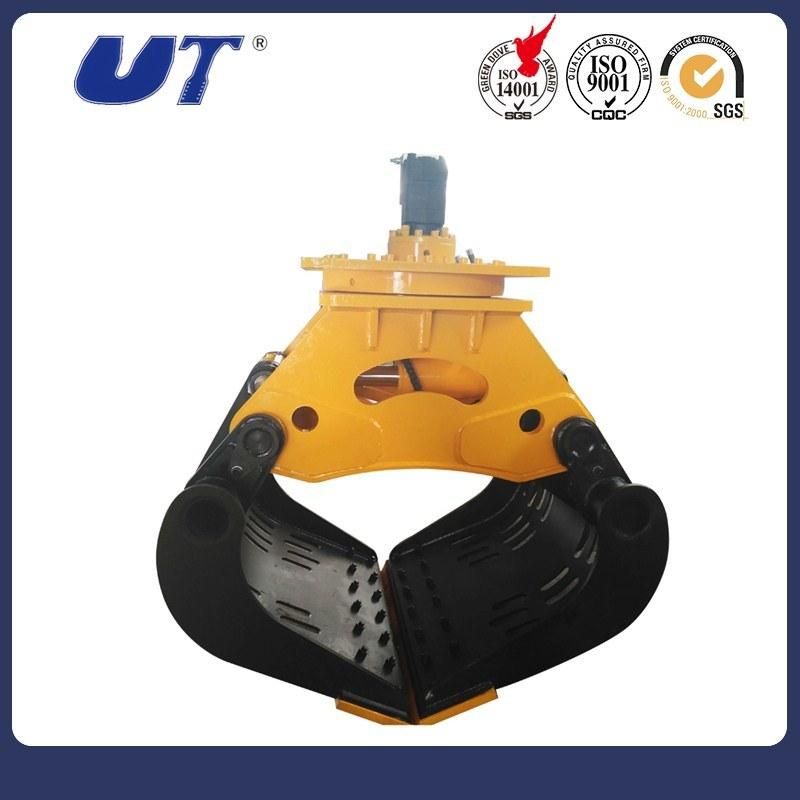

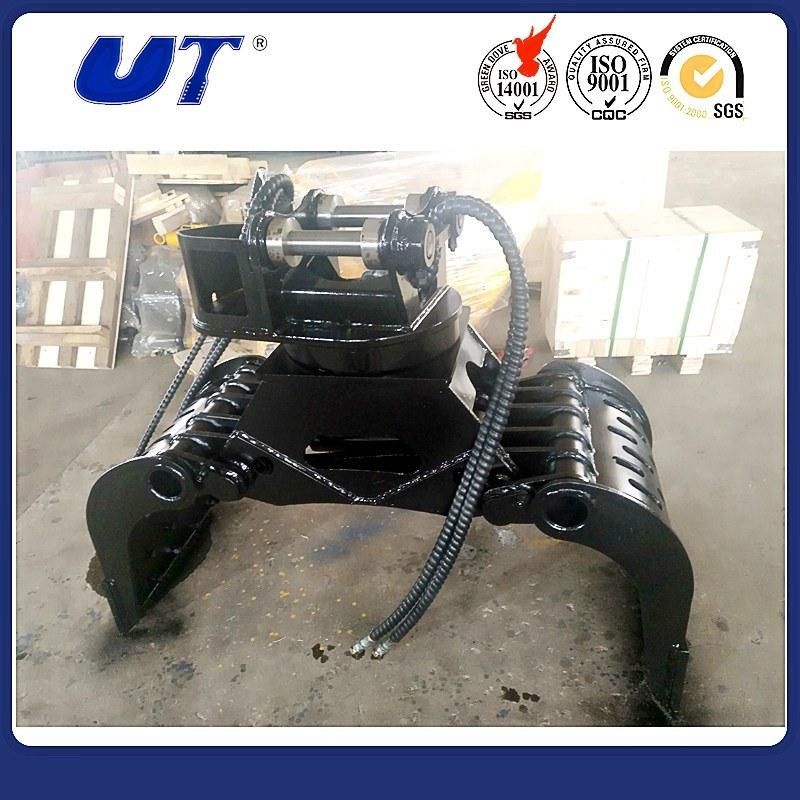

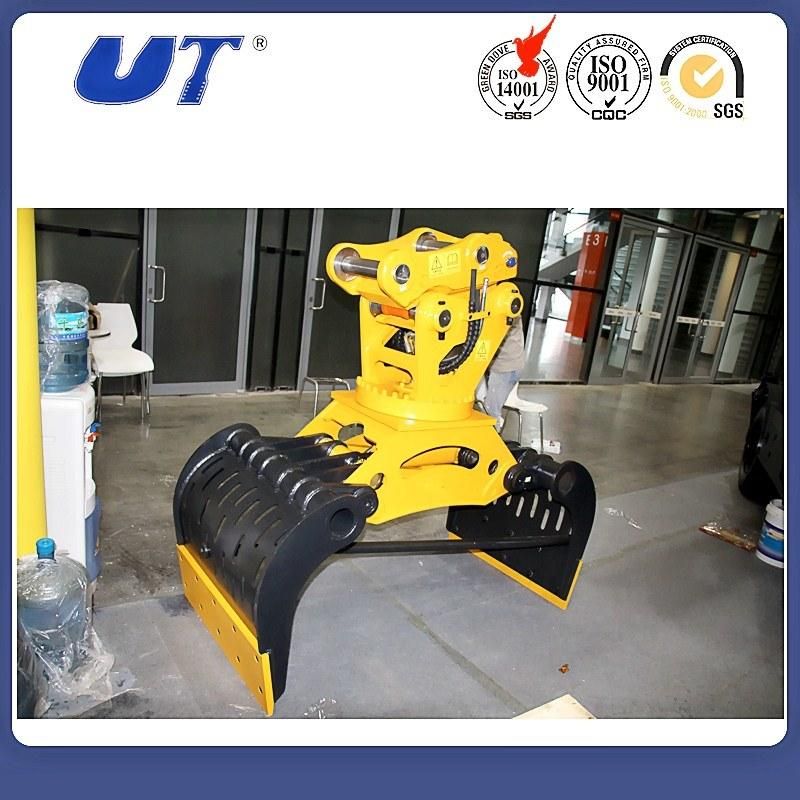

High-Strength Hydraulic Grapple
Features :
1.Special steel material with high ductility and high resistance
2.Imported balance valve motor with buffering and braking kinetic energy.
3.The cylinder is equipped with non-return valve, more safety for grabbing
4.High strength rotating support device, the operator can manipulates the swinging speed and its rotating direction for 360 degree clockwise and anticlockwise.
5.With soft tube in the high pressure cylinder, the soft tube is under protection
6.The product can also be designed with no swinging rotation in accordance with customers' different requirements.
7.Widely used in sand plant, stone-crushing plant, dock, industries like renewable resources and coal recycle, auto decomposition and waste transfer.
8.It can be installed in excavator. One machine has multiple applications and higher efficiency.


Item/Model	Unit	UTHSG02	UTHSG04	UTHSG06	UTHSG08	UTHSG10	UTHSG12
Rotation angle	°	360	360	360	360	360	360
Oil pressure	bar	110-140	120-160	150-180	160-180	200-280	200-280
Operating flow	lpm	30-55	50-100	90-110	100-140	-	-
Suit excavator	ton	4-6	6-9	12-16	17-23	18-28	28-35
Open width	mm	1150	1200	1550	1850	2094	2172
Height	mm	860	860	1100	1350	-	-
Width	mm	550	600	700	950	-	-
Weight	kg	280	350	950	1350	1500	1700
