• Model NO.：SD90-C5
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：106260
• Transport Package：Roro
• Specification：11500*5265*4590mm
• Trademark：shantui
• Origin：China
• HS Code：8429191000
• Production Capacity：500,Month

Basic Info.

Model NO. SD90-C5 Engine Power 147~515kw Certification CE, ISO9001: 2000 Condition New Color Yellow Operating Weight (Kg) 106260 Transport Package Roro Specification 11500*5265*4590mm Trademark shantui Origin China HS Code 8429191000 Production Capacity 500/Month

Product Description

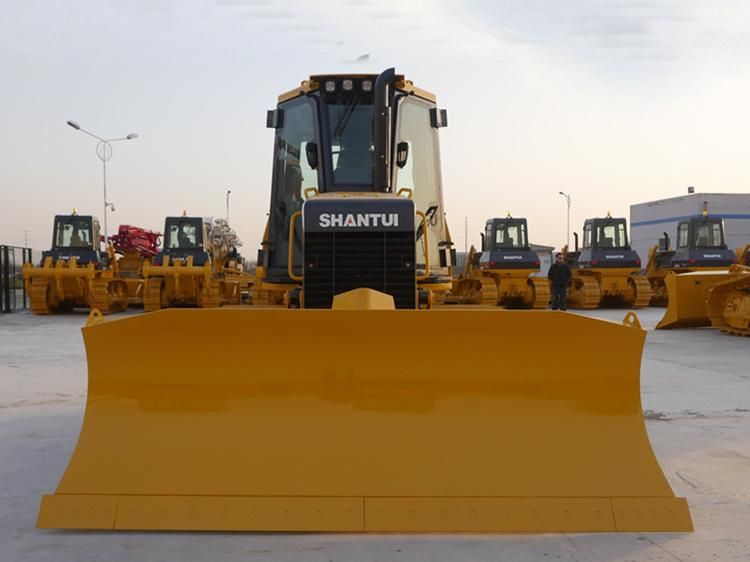

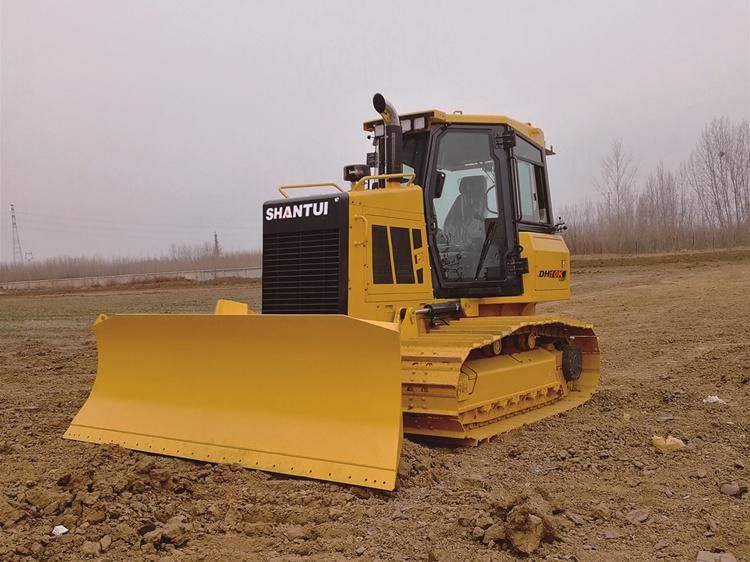

Chinese Bulldozer Brand SHANTUI Earthmoving Machine Dozer Cheap Price SD90-C5 For Hot Sale




Product Description

Power System

The electronic control engine meets the China-III non-road machinery emission regulation, featuring high reliability.

The air suction type temperature controlled fan incorporates the reverse self-cleaning function, featuring high efficiency and energy-saving.

Operating performance

The traveling system is controlled by single electronic control joystick to realize the "AMT fingertip gearshift";

The working device is operated by single pilot joystick, featuring flexible operations, high handiness and comfort, and high reliability.

Driving/Riding Environment

The ergonomic cab features large space and excellent vision.

The cab is integrally sealed to effectively isolate the noise and lower the driver's parotic noise to 80dB, wich meets the EU regulation.

The high-power A/C and heating system features excellent cooling and heating performances and the arrangement of A/C air vents is better humanized to achieve better driving/riding comfort.

The upholstery adopts rapid formed parts (ABS+PVC vacuum formed parts on the top), featuring high grade and environmental-friendliness and good driving/riding experience.

Working adaptability

The heavy-duty chassis is matched to adapt to more severe working condition and achieve longer life.

Featuring long ground length, high ground clearance, stable driving, and good trafficability, it can be installed with semi-U blade and U-blade.

The track rollers adopt type K elastic suspension to achieve higher ground area of tracks and realize higher traction force and more stable working on uneven roads.

The standard high-illumination LED working lamps improve the illumination capability during nighttime operations to achieve higher operating safety and reliability.

Easy maintenances

The wraparound safety passage design guarantees higher maintenance safety and convenience.

The machine adopts modular design, featuring easy assembling and disassembling and easy maintenances.

The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.

The core electric and hydraulic parts are globally procured to ensure high reliability.



Parameter name	SD90-C5 RS (Rock version)
Performance parameters
Operating weight (Kg)	106260
Ground pressure (kPa)	143.7
Engine
Engine model	QST30
Rated power/rated speed (kW/rpm)	708/2100
Overall dimensions
Overall dimensions of machine (mm)	11500*5265*4590
Driving performance
Forward speed (km/h)	F1:0-3.5 F2:0-6.3 F3:0-10.9
Reversing speed (km/h)	F1:0-4.7 F2:0-8.4 F3:0-14.3
Chassis System
Center distance of track (mm)	2770
Width of track shoes (mm)	710
Ground length(mm)	4520
Tank capacity
Fuel tank (L)	1638
Working device
Blade type	Semi-U blade
Digging depth (mm)	1010
Ripper type	Single-shank
Ripping depth (mm)	1670
