Top Grade Quarry Stone Plugs and Feathers, Stone Splitting Wedges, Rock Shims and Wedges

YANTAI PANDA EQUIPMENT CO., LTD.
  • Type：Splitting Tools
  • Application：Stone Splitting and Construction
  • Certification：CE, ISO9001: 2000, API
  • Condition：New
  • Diameter：14mm to 38mm
  • Length：125-620mm

Base Info

  • Material：High Manganese Steel
  • Processing Type：Forging
  • Pressure：High Pressure
  • Transfer：Air,Sea,Express
  • Color：Request
  • Advantage：High Performance
  • Product Name：Shims and Wedges
  • Inserts Design：Spherical; Ballistic; Parabolic
  • Transport Package：Wooden Box or as Customers Inquire
  • Specification：Customized, Customized
  • Trademark：PANDA
  • Origin：Shandong China
  • HS Code：82071990
  • Production Capacity：20000 Pieces , Week

Description

Basic Info.

Material High Manganese Steel Processing Type Forging Pressure High Pressure Transfer Air/Sea/Express Color Request Advantage High Performance Product Name Shims and Wedges Inserts Design Spherical; Ballistic; Parabolic Transport Package Wooden Box or as Customers Inquire Specification Customized, Customized Trademark PANDA Origin Shandong China HS Code 82071990 Production Capacity 20000 Pieces / Week

Product Description

Product Description:

Shims and wedges are Used in conjunction with hammer, (compressor) drilling machine bits for stone blocks billet were split..Used to split the hard stone, rock, granite, marble, concrete.

Instruction for use:

Consists of a Central wedge and 2 wedges, first with quarrying dedicated drill holes in the hole to clear the residual powder, the two big wedge head-down, plane put in the hole, then placed upside the small wedge in the middle of the wedge. Finally, beat with a hammer.

A hole is placed a pair of wedge quarrying, the actual number use according to the workload of the decision. Usually the distance between the two holes about 10cm, depending on the actual use depending on the workload, it can be reused many times.

Specification:

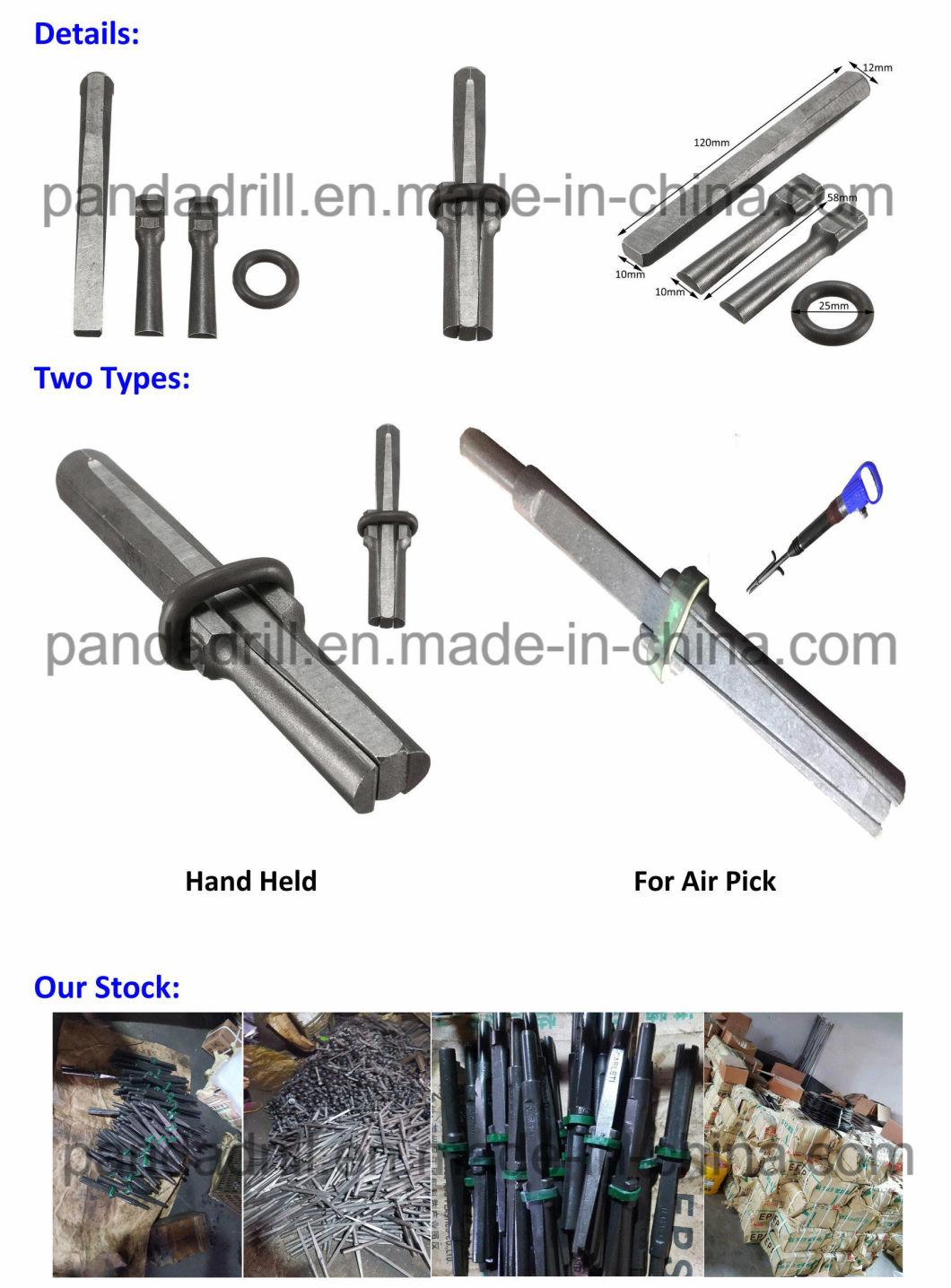

Hand Held:
TYPEDIA(MM)LENGTH(MM)
PAH-14-12514125
PAH-16-12516125
PAH-24-19024190
PAH-32-27032270
PAH38-32538325
PAH38-60038600

For Air Pick:
TYPEDIA(MM)LENGTH(MM)
PAG-20-27020270
PAG-30-36530365
PAG-32-36532365
PAG-32-39532395
PAG-34-36534395
PAG-34-39534395
PAG-36-36536365
PAG-36-39536395
PAG-38-36538365
PAG-38-39538395
Top Grade Quarry Stone Plugs and Feathers, Stone Splitting Wedges, Rock Shims and Wedges
Top Grade Quarry Stone Plugs and Feathers, Stone Splitting Wedges, Rock Shims and Wedges
Top Grade Quarry Stone Plugs and Feathers, Stone Splitting Wedges, Rock Shims and Wedges
FAQ:

Q1: Can I have a sample for testing?

A:Samples are still to be paid but discounted price can be provided.

Q2: Do you have the inspection procedures?

A:100% strict inspection and testing for every order before packing.

Q3: How can i get the after sale services?

A:Free replacement will provide once the problems casued by our product quality.

Q4: Can I have a visit to your factory before the order?


A: Sure, welcome, here is our address: Yantai, Shandong.
