• Model NO.：LG930
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine：Weichai
• Axle：Awd, Small Hub Reduction Gear
• Steering：Multi-Layers Articulation Steering
• Attachment：Kinds of Attachments
• Payload：1.8ton
• Tyre：20.5,70-16
• Engine Power：65kw
• Transport Package：Container
• Specification：5500x1850x2760mm
• Trademark：LUGONG
• Origin：China
• HS Code：84295100
• Production Capacity：40000 Sets,Year

Basic Info.

Model NO. LG930 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Weichai Axle Awd, Small Hub Reduction Gear Steering Multi-Layers Articulation Steering Attachment Kinds of Attachments Payload 1.8ton Tyre 20.5/70-16 Engine Power 65kw Transport Package Container Specification 5500x1850x2760mm Trademark LUGONG Origin China HS Code 84295100 Production Capacity 40000 Sets/Year

Product Description

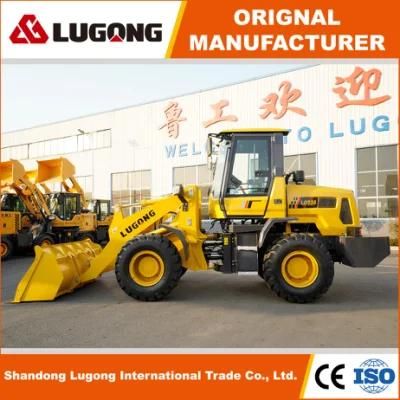

Professional Compact wheel loader manufacturer-LUGONG GROUP

Product Details for mini loader

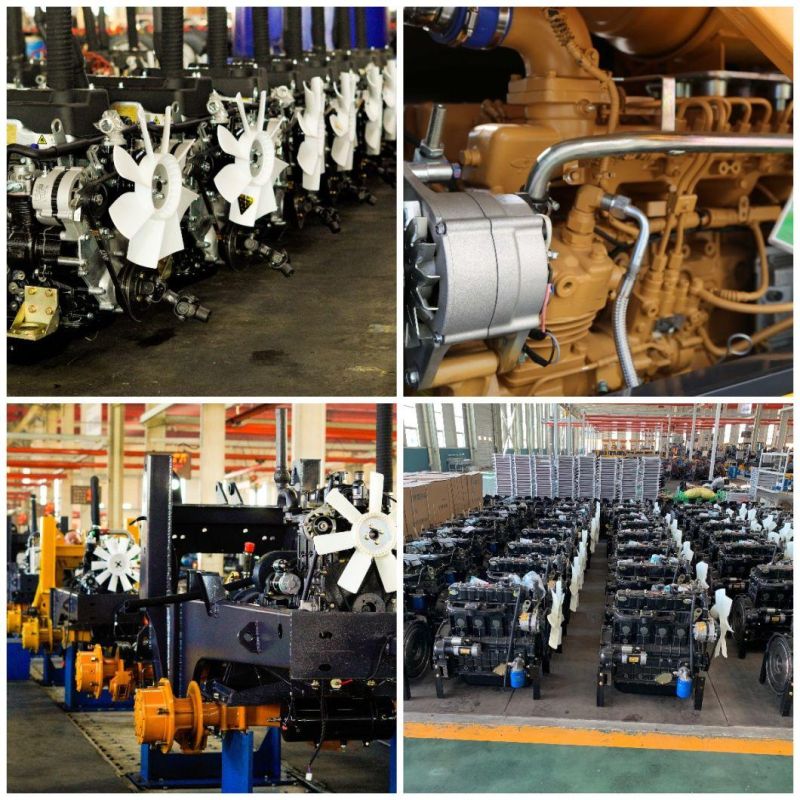

*High performance engine from YUCHAI, WEICHAI-HF, SIDA;
*Best match for our small loader base on 20 years experience;
*DEUTZ, YUNNEI, CUMMINS for optional.

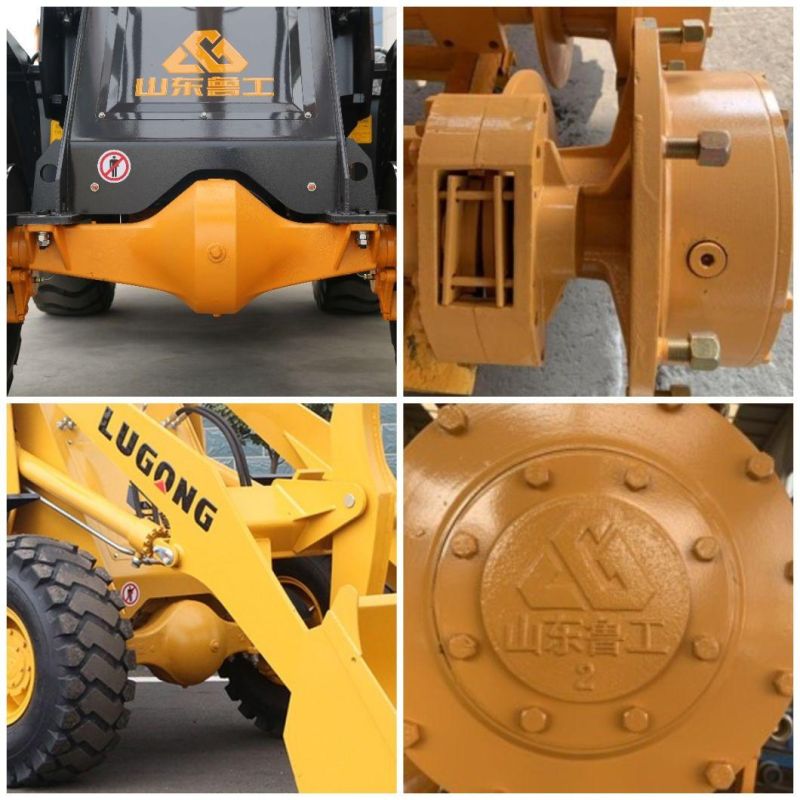

*Special 7:41 speed ratio with big hub reduction brings large torque,
 more powerful and quick acceleration;
*High grade main reducer for light truck gets low failure rate;
*Casting steel material, 200kgs heavier than others, stronger and more durable;
*Big size brake disc and brake caliper get good brake action.

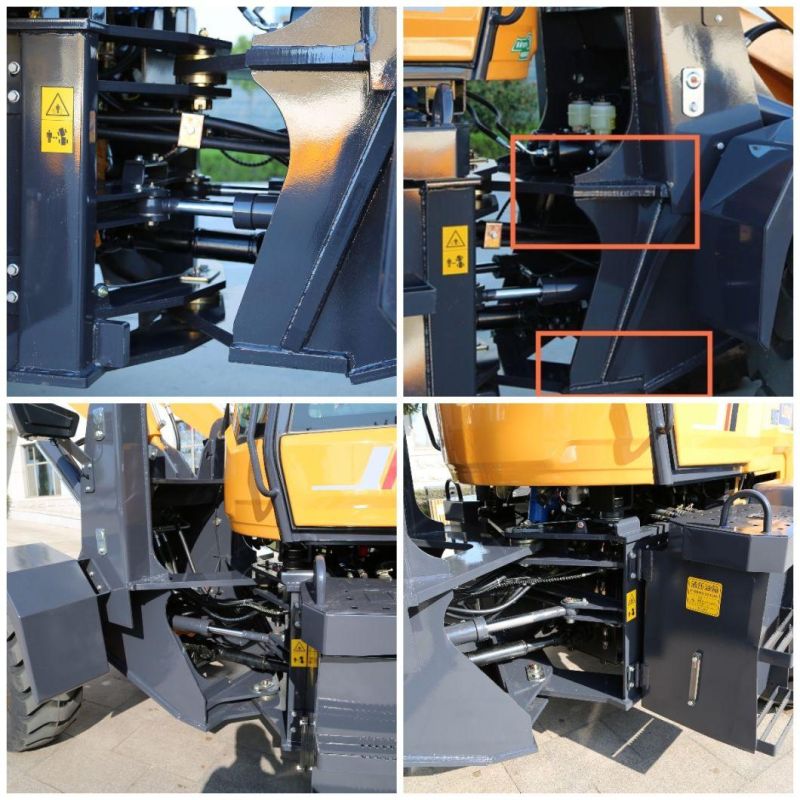

*Three-layer articulated steering design can uniform stress, prevent deformation;
*Extended and widened hinge plate wedge in column strengthen whole frame greatly;
*Trajectory coincidence technology reduce engine load and tire wear, get small turning radius and more flexible operation.

*Stamping steel plate gets high structural strength;
*Arc design brings good visual effect;
*Electro-coating ensures excellent anti-corrosion property.

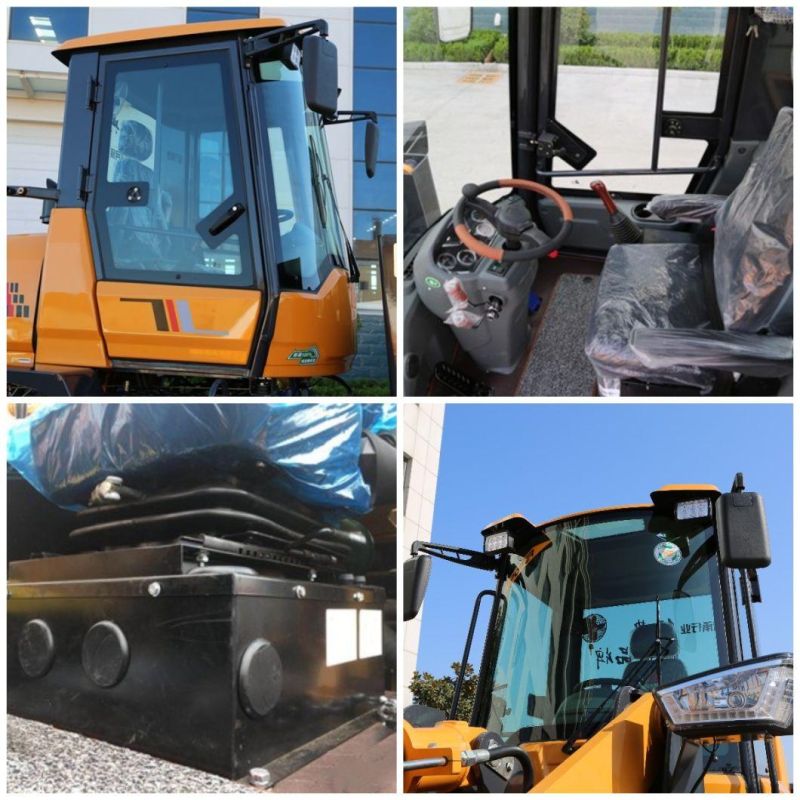

*Made of stamping steel plate gets large cab space and strong structure;
*Curved one-piece windshield brings better driving vision;
*Luxury seat with high grade damper reduce fatigue of long time driving;
*Optional high quality air conditioner improve driving comfort.

*Stamping steel plate gets high structural strength for hood;
*Large open angle is convenient for maintenance;

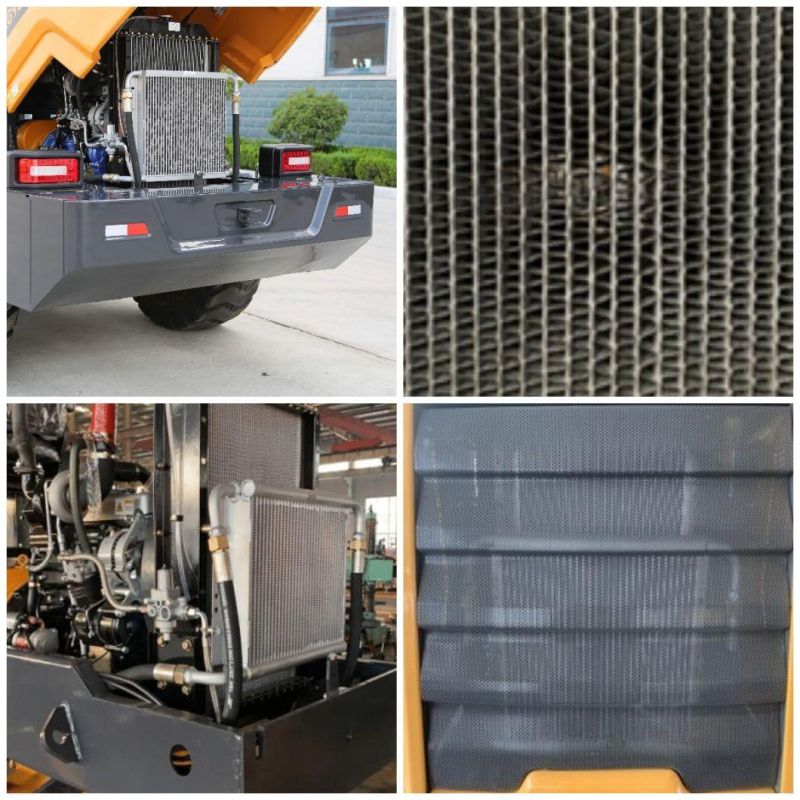

*High level water tank, Large hole grid with 32mm double pipe increase heat dissipation;
*Motor temperature is not high even continuous working 20 hours at air temperature 50ºC.

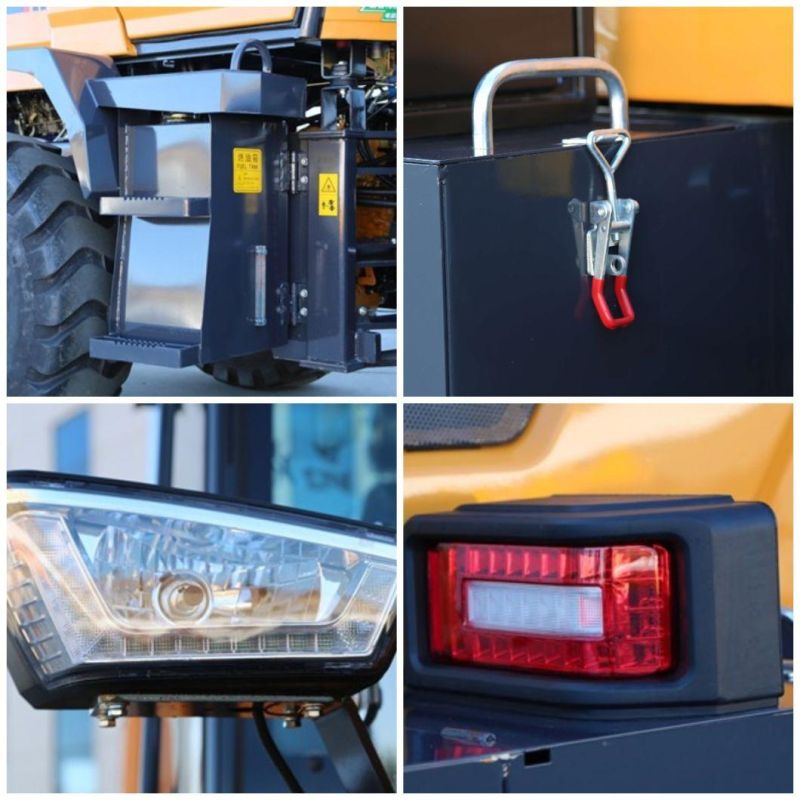

*New LED lights bring better brightness and longer life;
*Pickling and phosphating treated oil tank avoid block in hydraulic system;
*Fast joint on air tank for blowing gun, air inflation and grease gun;
*Shanghai "Steel" brand 18PR Nylon tyre, service life much longer than other brands.

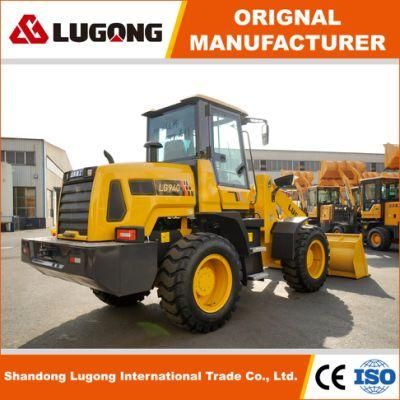

Detailed Specs for LUGONG small front end mini loader

Rated Load	1800kgs	Engine Model	Power 4102
Standard Bucket	0.9m3	Gross Power	65KW
Operating Weight	4200kgs	Torque Converter	Hydraulic
Max. Dumping Height	3200mm	Transmission Box	CVT AWD 280 Split type
Turning Radius	4900mm	Axle	Small hub reduction gear
Tyre	20.5/70-16	Service Brake	Dual Air Hydraulic Disc

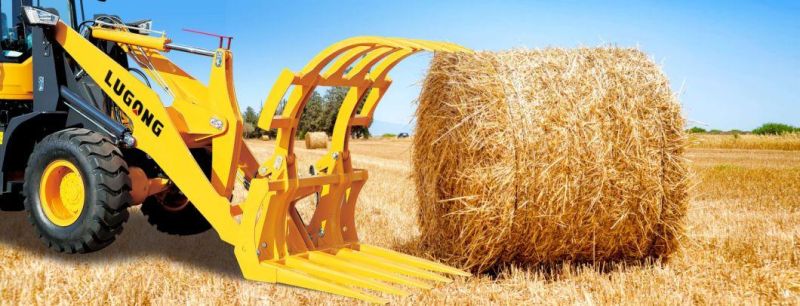

Attachments and Applications for wheel loader forklift, backhoe,skid steer loader, telescope loade

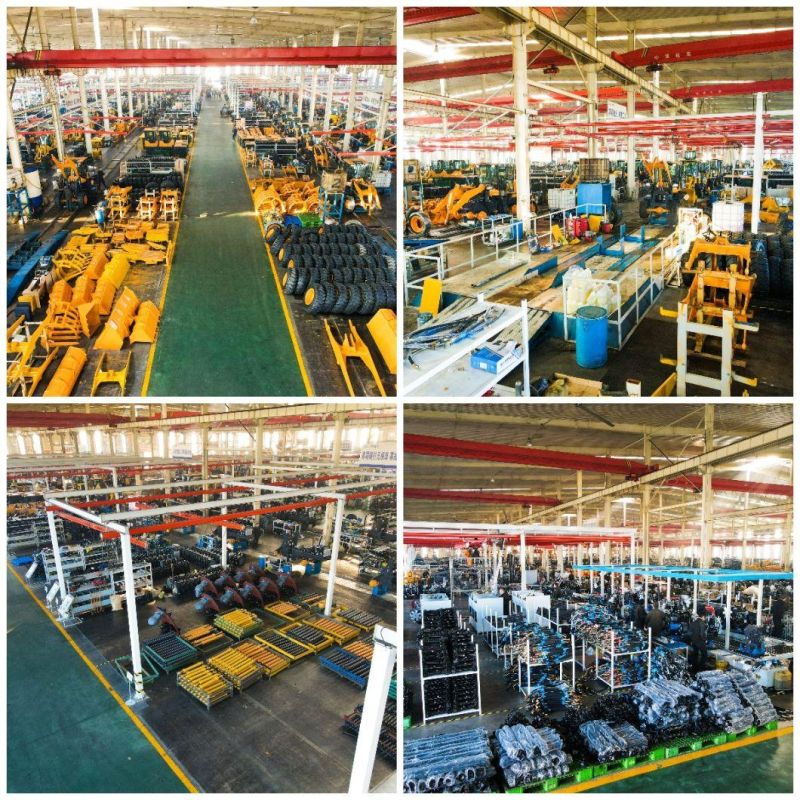

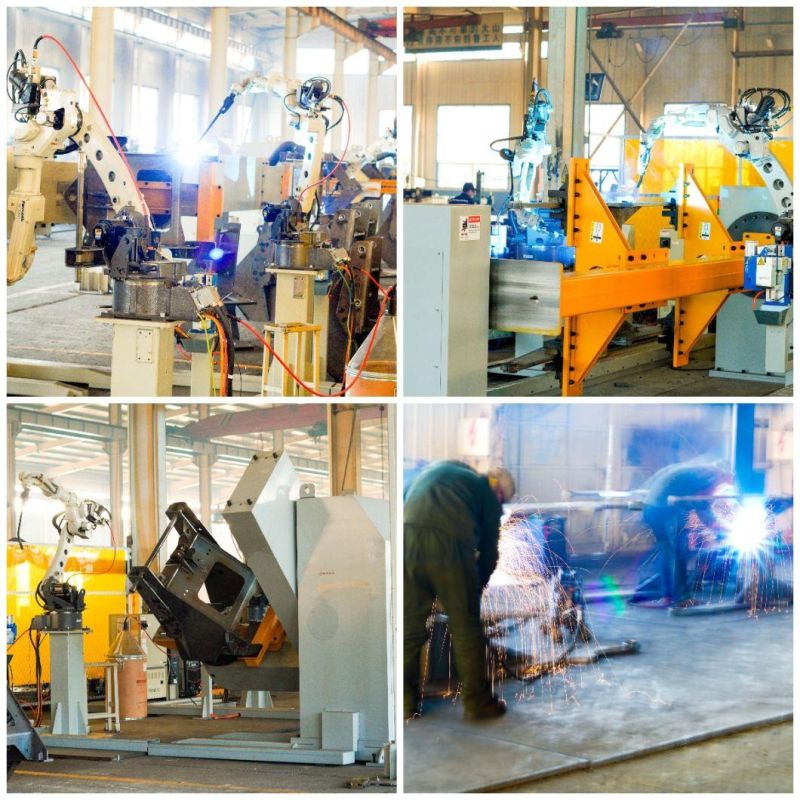

Company Brief
*Leading manufacturer of Compact Wheel Loader;
*Founded in 2000. Land 200,000 Sq. meters;
*Employee more than 1100;
*Certificate ISO9001:2015; CE;
*Sales 40,000+ sets loader in 2020.
