• Model NO.：T928
• Type：Small Loader
• OEM：Available
• Tire：20.5-16
• Operating Weight：3300kg
• Bucket Capactiry：0.6cbm
• Transport Package：Nude Cargo
• Specification：5520X1840X2750mm
• Trademark：LuGong
• Origin：China
• HS Code：8429510000
• Production Capacity：40000

Basic Info.

Model NO. T928 Type Small Loader OEM Available Tire 20.5-16 Operating Weight 3300kg Bucket Capactiry 0.6cbm Transport Package Nude Cargo Specification 5520X1840X2750mm Trademark LuGong Origin China HS Code 8429510000 Production Capacity 40000

Product Description

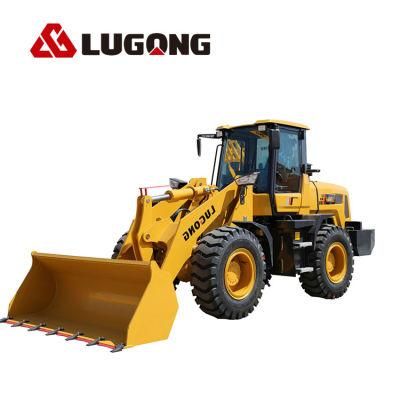

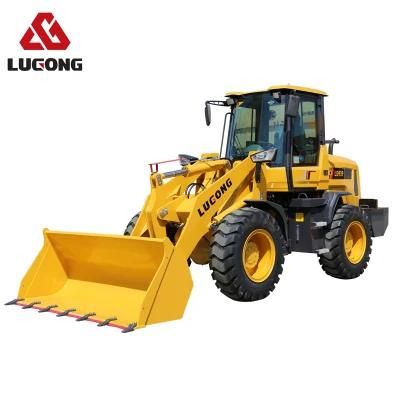

Chinese LUGONG Brand  Articulated 1600kg Mini Small Hydraulic CE Front End Wheel Loader for Sale


The parameter of T series


	T920	T928	T930	T933	T938
bucket capacity	0.60m³	0.60m³	0.90m³	1.0m³	1.6m³
rated load	1500kg	1600kg	1800kg	1800kg	2000kg
operating weight	2950kg	3300kg	3500kg	4350kg	4450kg
overall dimension	5050X1850X2750mm	5520X1840X2750mm	5530X1860X2750mm	5870X1980X2830mm	6520X2000X2860mm
bucket width	1800mm	1800mm	1900mm	2000mm	2200mm
Max. dumping height	2900mm	3200mm	3200mm	3500mm	3800mm
Max. dumping distance	700mm	800mm	750mm	750mm	1000mm
turning radius	4700mm	4900mm	4900mm	5000mm	5000mm
Engine Model	Sida490	Sida490	Weichai-HF4102	Weichai-HF 4102 turbo	Weichai-HF 4102 turbo
rated power	42kw	42kw	65KW	65KW	65KW
type	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter	hydraulic torque converter
gearbox pattern	automatic 265	automatic 265	automatic 265 split	automatic 265 split	automatic 265 split
axle	AWD, small hub reduction	AWD, small hub reduction	AWD, small hub reduction	AWD, medium hub reduction	AWD, medium hub reduction
tyre size	20.5-16	20.5-16	20.5-16	16/60-20	16/70-20

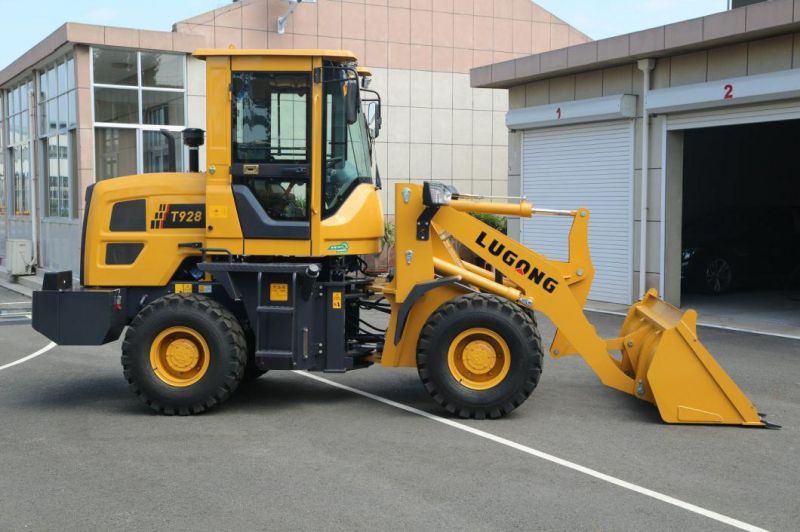

Advantages of T928

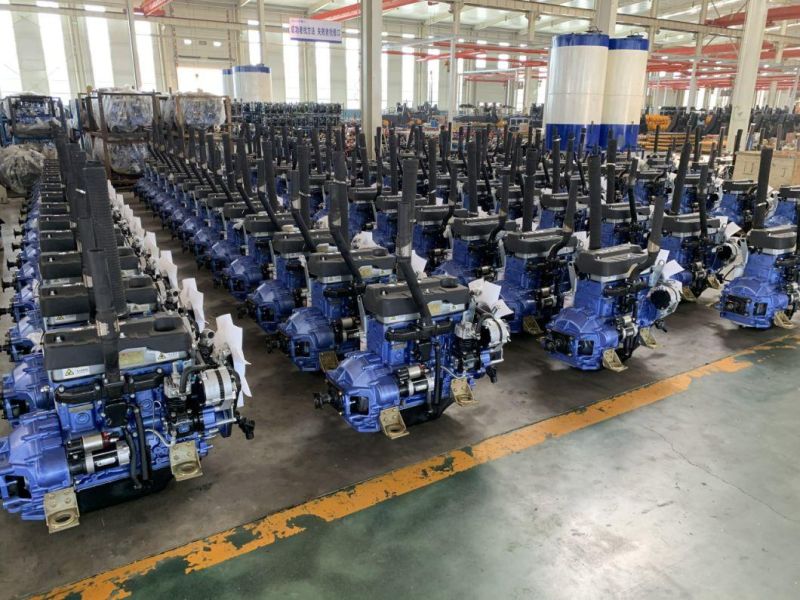

1.Engine

•Famous brand opption:CUMMINS, DEUTZ, YUNNEI;
•Better cost-effective and best cooperation with brands:WEICHAI-HF, YUCHAI,SIDA

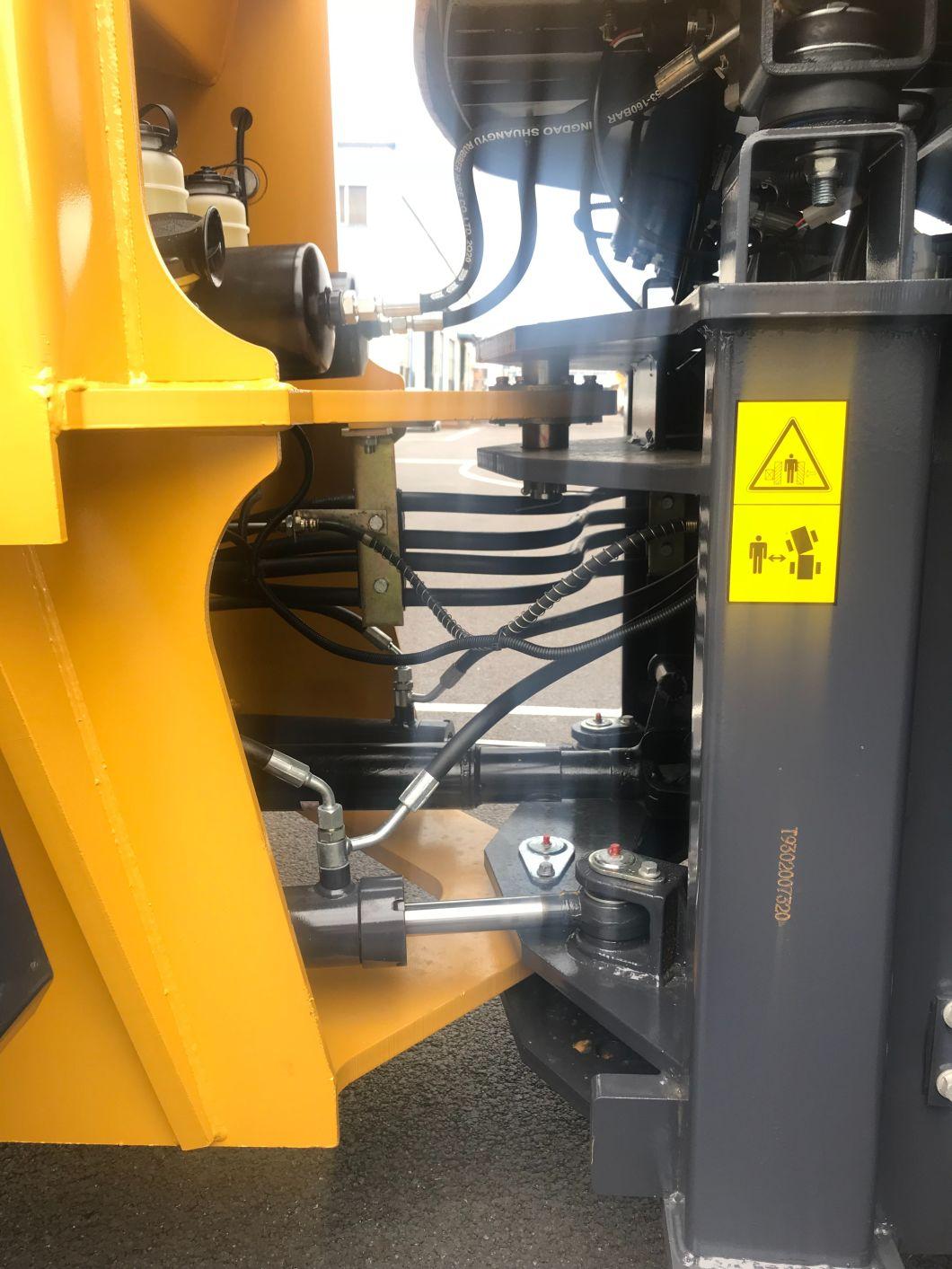

2.Articulaiton

• Extended and widened plate charges in column,more strengthfull.
•Trajectory coincidence technology reduce tire wear and machine load capacity, turning radius is small and more flexible.

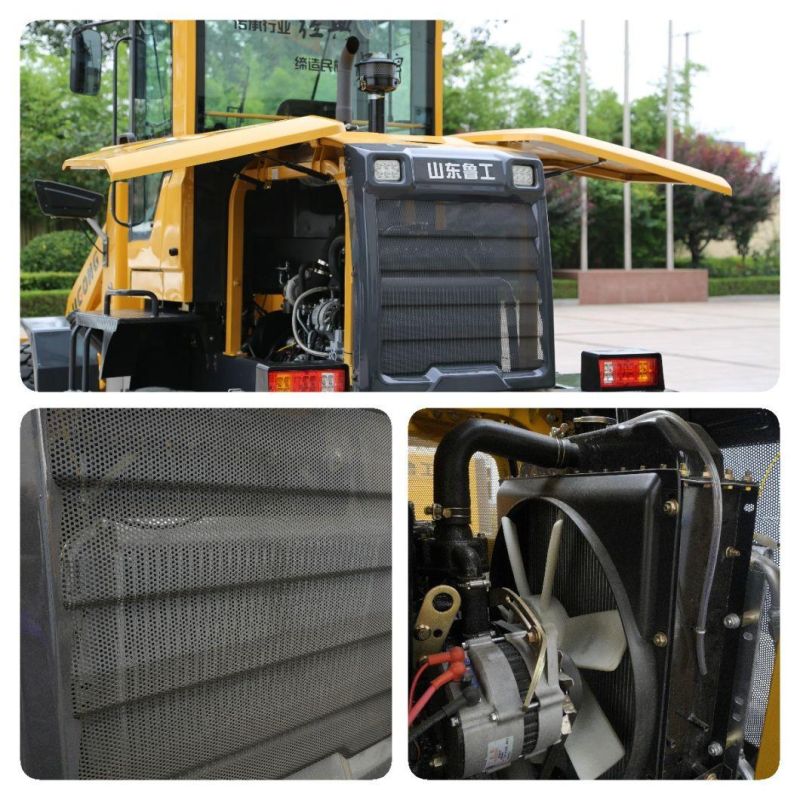

3.Cooling systerm

•High level water tank gets better radiation effect.
•Water and oil cooling systerm separately.
•Large hole grid and widen 32mm double-row pipes increases radiation effect and prevent blocked;



4.Appearance

•Drawing stamping process gets high structural strength and arc design gets good visual effect;
•Electro-painting prevents metal from getting rusted soon.
•Stamping engineering gets more durable performance for grid plate.Small and narrow hole on it prevent dirties and crops into it.

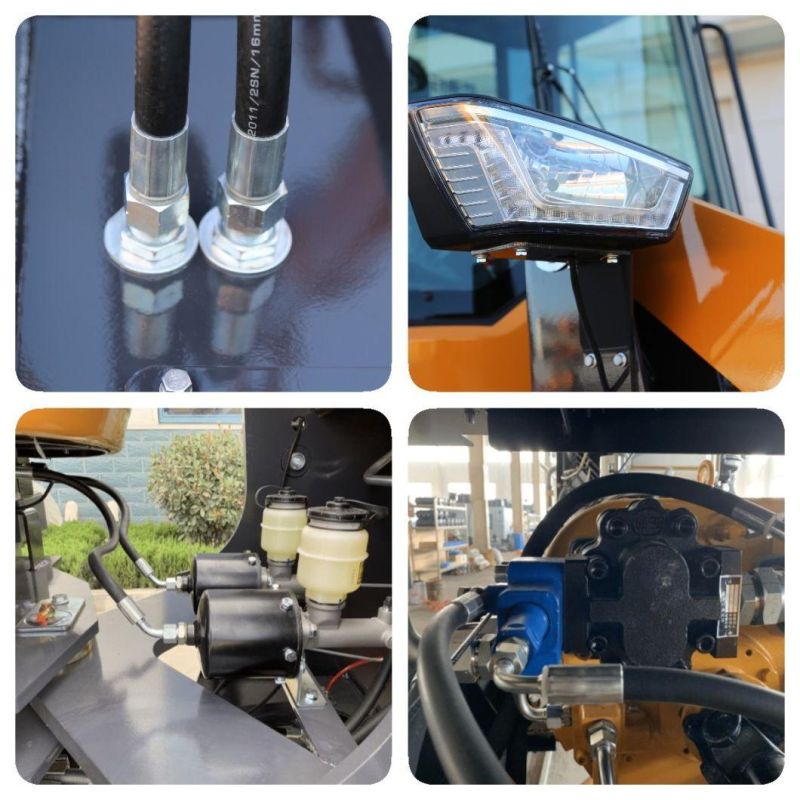

Other Details

• Shanghai "Steel" brand tire and made of 18PR Nylon;
•H type joint with two sealing rings ensures no oil leakage;
•Front and rear brake pumps separated design prevents brake failure;
•LED lights are more bright and have longer life;

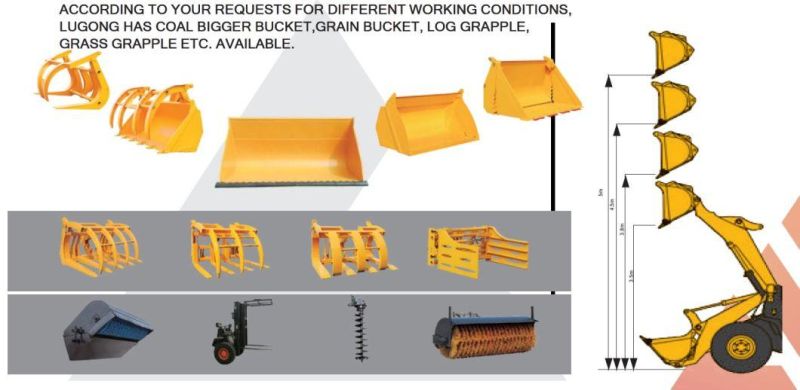

Attachements

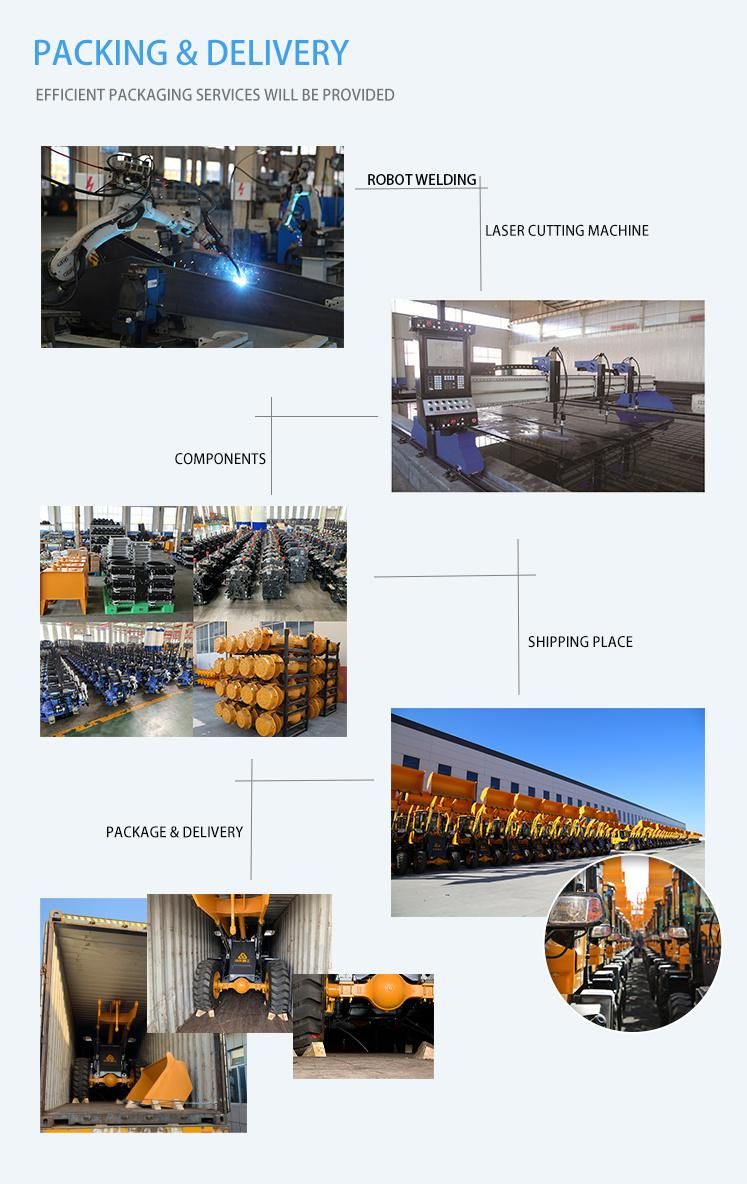

Packing & Delivery

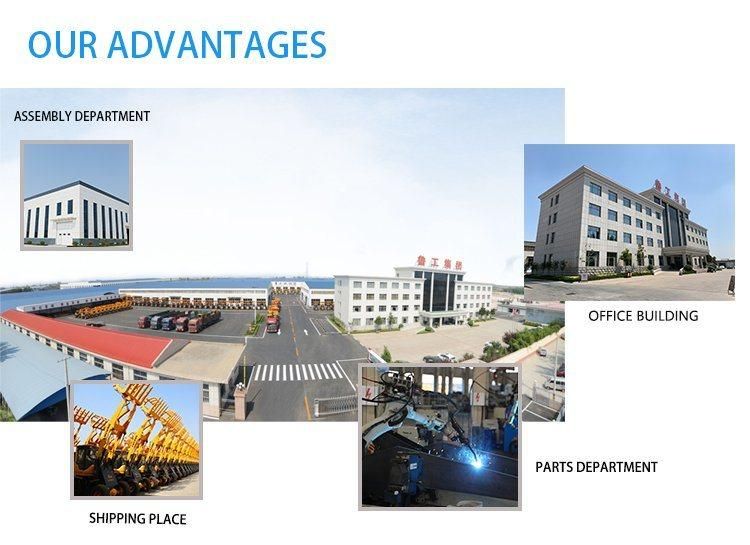

The Company Profile

  Shandong Lugong Machinery CO.,Ltd was founded in 2000.which is located at Yantai Shandong City.It's the backbone enterprise of construction machinery national wide with fixed asset 500 million Yuan.It covers a land of 200 thousand square meter and 1100 employees,88 of whom are engineers and technicians.
Our company mainly produces wheel loaders.Products are mainly sold to over to 20 provinces in China and exported to dozens of countries and regions in Africa,South Asia,South America and Russia.The quality and performance of our small farm-use loaders and construction trippers are in leading position of the industry throughout the nation and well received by users.
