• Model NO.：swd8
• Condition：New
• Color：Yellow
• Engine：Cummins
• Blade Type：Semi U
• Blade Capacity：11.2m3
• Blade Width：3940mm
• Blade Height：1690mm
• Digging Depth：582mm
• Transport Package：Naked
• Specification：35.5 ton
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：500 Unit Per Year

Basic Info.

Model NO. swd8 Condition New Color Yellow Engine Cummins Blade Type Semi U Blade Capacity 11.2m3 Blade Width 3940mm Blade Height 1690mm Digging Depth 582mm Transport Package Naked Specification 35.5 ton Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 500 Unit Per Year

Product Description

Features of Sinoway SWD8 Elevated Sprocket Bulldozers
Engine
Equipped with Cummins engine powerful and reliable,allows the SWD8 to doze through tough material.
Drive Train
Hydro Mechanical Torque Converter, Powershift transmission, Elevated final drive.
Serviceability
Modular design for convenient service.
Track
Original Sealed and Lubricated,Track from ITM. Bogie Suspension Less slippage, better balance, and a smoother ride.
Operator Station
Designed for operator comfort, convenience, and productivity. Machine controls and displays are all at the operator's fingertips to maximize operator productivity.Torque Divider
A single-stage torque converter with an output torque divider send 70% of engine torque through the converter,30% through a direct drive shaft for greater driveline efficiency and higher torque multiplication.
Torque Converter
The torque converter shields the driveline from sudden torque shocks and vibration.
Transmission
Planetary power shift transmission has 3- speeds forward and 3-speeds reverse and utilizes large diameter, high-capacity, oil- cooled clutches.
Final Drives
Elevated final drives are isolated from ground and implement induced impact loads for extended power train life

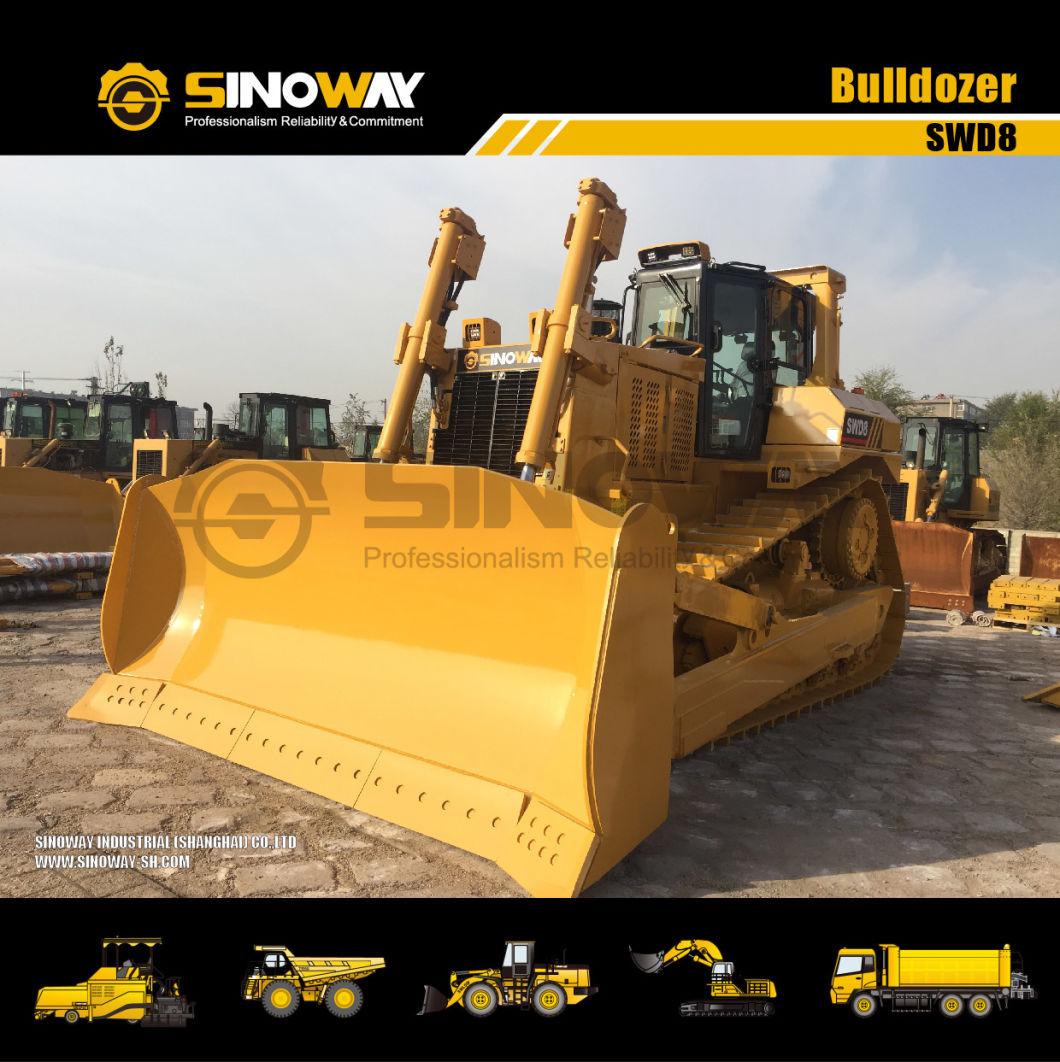

Machien Show

Specifications

Engine
Model	Cummins
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	1900rp
Implement Hydraulic System
Hydraulic flow rate	220L/min
Hydraulic pressure	21MPa
Pump type	Double vane pump
Control valve	Hydraulic operated
Under Carriage System
Sprocket	Elevated
Number of track rollers (each side)	8
Number of carrier rollers (each side)	(4 single, 4 double)
Number of front idler (each side)	12
Track type	Single grouser
Track tension	2083mm
Track pitch	216mm
Track width	560mm
Number of track shoes (each side)	44
Track length on ground	3252mm
Ground clearance	556mm
Main Technical Specification
Operating weight(without ripper)	33000Kg
Ground pressure(without ripper)	0.093MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	6105×3990×3600mm
Max. tractive force	380KN
Working Equipment
Blade type	Semi-U
Width	3940mm
Height	1690mm
Max. digging depth	582mm
Max. lift above ground	1288mm
Tilting angle	12°
Blade capacity	11.2m3
Transmission System
Gear box	Power separating hydraulic mechanical type
Torque converter	Torque divider combined
Transmission assembly	Integrated bevel gear, multiple stage planetary gear box, speed changing control valve
Final drive	Two stage planetary reduction gear mechanism
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.9/4.8
Forward/Reverse II	6.8/8.4
Forward/Reverse III	10.8/13.9
Service Capacities
Fuel tank	625L
Implement hydraulic	100L
Engine crankcase	41L
Cooling system	121L
Roller frames (each)	65L
Power train	150L
Pivot shaft compartment	15L
Final drives (each)	15L
Steering clutch	Oil-type, free-adjustment, multiple disc, pressed hydraulically
Steering brake	Pressed by spring, separated hydraulically,costant meshed type

Production Line


Service Support

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
