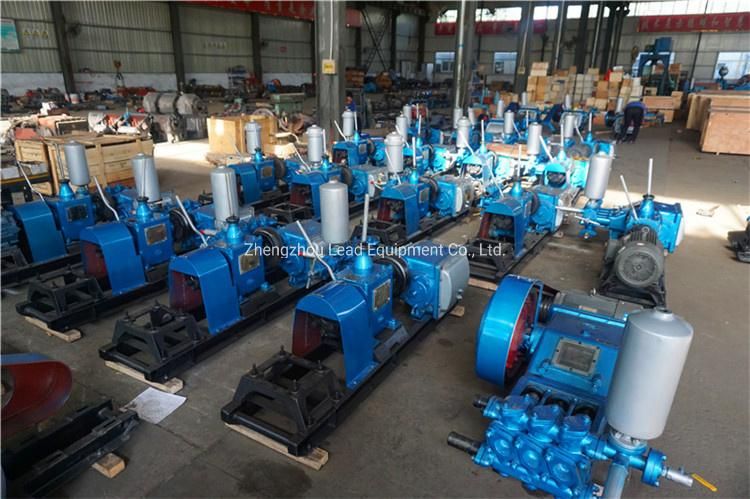

HENAN BW250 Type Slurry Pump/mud pump for drilling rig

Zhengzhou Lead Equipment Co., Ltd.
  • After-sales Service：Online support
  • Warranty：1 year
  • Machine Type：Plunger Mud Pump
  • Stroke(Mm)：110
  • Cylinder Dia(Mm)：100
  • Gear Range：Fasti Fastii Slowi Slowii

Base Info

  • Model NO.：BW250
  • Pump Speed (Min)：232 162 109 76
  • Flow(1/Min)：600 415 280 195
  • Pressure(Mpa)：3.5 5 7.5 10
  • Input Power(Kw)：55
  • Input Speed(R/Min)：550
  • Suction Height(M)：2.5
  • Transport Package：in Wooden Case or in Standard Container
  • Specification：CE, ISO 9001
  • Trademark：Leadcrete
  • Origin：Henan, China
  • HS Code：8413509090
  • Production Capacity：1000 Set,Year

Description

Horizontal triplex reciprocating single-acting piston pumpStroke(mm)110Cylinder dia(mm)100Gear range fastI  fastII    slowI      slowIIPump Speed (min)232      162       109         76Flow(1/min)600      415       280         195Pressure(Mpa)3.5       5        7.5         10Input Power(kw)55Input Speed(r/min)550Suction height(m)2.5Suction hose diameter(mm)89Discharge hose diameter(mm)51Size(mm)2330*1715*1230Weight(kg)1400
