• Model NO.：SY388
• Type：Small Loader
• Operating Weight：8200kg
• Engine：Yuchai
• Engine Power：75kw
• Wheel Base：2200mm
• Overall Dimension：6100*2365*3752mm
• Mini Ground Clearance：300mm
• Front Bucket Capacity：1.0 Cubic Meter
• Breakout Force：38kn
• Load Lift Capacty：2500kg
• Bucket Dumping Height：2742mm
• Bucket Dumping Reach：925mm
• Digging Depth：52mm
• Backhoe Capacity：0.3 Cubice Meters
• Max Digging Depth：4082mm,4500mm
• Max Pulling Force：39kn
• Transport Package：Nude
• Specification：100hp
• Trademark：SUNYO
• Origin：Linyi, China
• HS Code：8429510000
• Production Capacity：8000

Basic Info.

Model NO. SY388 Type Small Loader Operating Weight 8200kg Engine Yuchai Engine Power 75kw Wheel Base 2200mm Overall Dimension 6100*2365*3752mm Mini Ground Clearance 300mm Front Bucket Capacity 1.0 Cubic Meter Breakout Force 38kn Load Lift Capacty 2500kg Bucket Dumping Height 2742mm Bucket Dumping Reach 925mm Digging Depth 52mm Backhoe Capacity 0.3 Cubice Meters Max Digging Depth 4082mm/4500mm Max Pulling Force 39kn Transport Package Nude Specification 100hp Trademark SUNYO Origin Linyi, China HS Code 8429510000 Production Capacity 8000

Product Description

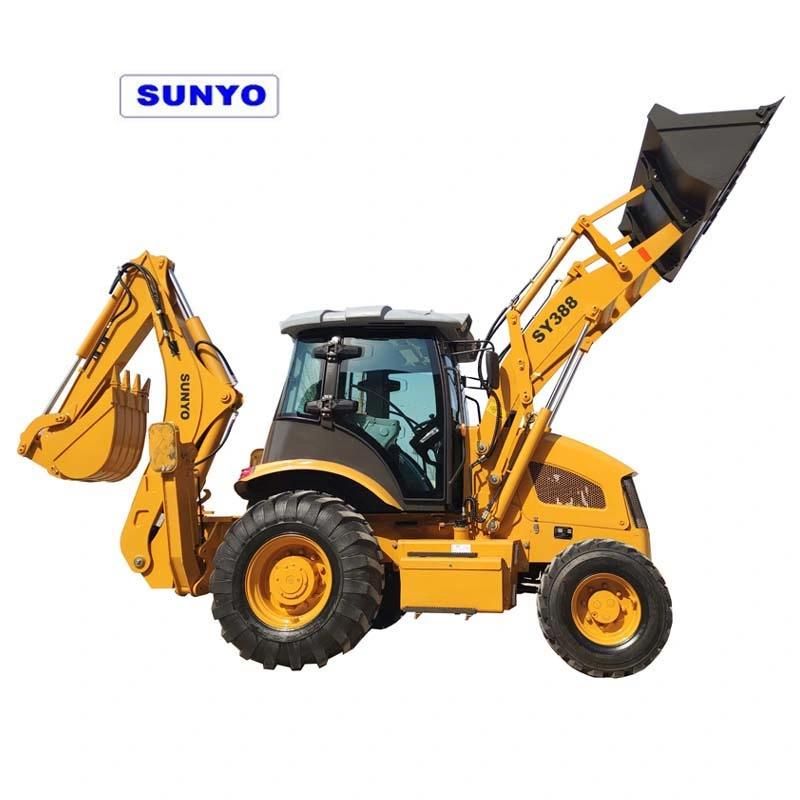

SUNYO / Chinese High Quality/  SY388  Backhoe Loader  with Famous Brand Engine and Transmission. Widely used, flexible operation.

SY 388 Backhoe loader:SY 388 Backhoe loader, with CUMMINS 100hp engine, Chinese gear box, transmission, A/C, Pilot Control ,Reversing video; Operation weight: 8200kg;
Options:
YUCHAI engine
WEICHAI engine
CARRARO axle and gear box.
ROPS  cabine

Features o SY388 Backhoe Loader :
1. Equipped with reliable Cummins engine
2. 4 forward & 4 reverse synchromesh mechanical shift transmission
3. Combined seal cylinder obtains high seal performance and more reliability
4. Improved loader and backhoe performance
5. Chinese  or  CARRARO wet axle.
6. New-type cab with more space, increases comfort and visibility
7. With 2 wheel driving or 4 wheel driving for option

SY388 Backho Loader Specifications :


Overall Operating Weight	8200KG	Rated dynamic/static Load of front axle	7.5t/18.75t
Performance		Transmission System
L*W*H (mm)	5920×2250×3770	Torque Converter
Wheel base	2200mm	Model	TLB1-4WD
Min. Ground Clearance	300mm	Type	Single-stage Three Elements
Bucket Capacity	1.0m3	Max. Efficiency	84.4%
Breakout Force	38KN	Inlet Pressure	0.5Mpa
Loading Lifting Capacity	2500KG	Outlet Pressure	1.1Mpa-1.3 Mpa
Bucket Dumping Height	2742mm	Cooling Method	Oil-cooling Pressure Circulation
Bucket Dumping Distance	925mm	Gearbox
Digging Depth	52mm	Type	Fixed Shaft Power Transmission
Backhoe Capacity	0.3 m3	Oil Pressure of Clutch	1373Kpa-1569 Kpa
Max. Digging Depth	4082mm/4500mm	Gears	four  Gears Ahead, four Gears Astern
Swing Angle of Excavator Grab	190o	Max. speed	40Km/h
Max. Pulling Force	39KN	Tyre
Engine		Model	14-17.5/19.5L-24
Model	CUMMINS 4BTA3.9-C100	Pressure of Front wheel	0.55 Mpa
Type	turbocharging four-stroke	Pressure of Back Wheel	0.23 Mpa
Cylinder-Inside Diameter*Stroke	4-110	Brake system
Rated Power	74KW/100HP	Service Brake	wet-type
Rated Speed	2200r/min		internal type
Min. Fuel Consumption	≤218g/km.h		self-regulation
Max. Torque	≥301.7N.M/1800r/min		self-balance
Displacement	4.5L	Emergency Brake	spring brake
Steering System			terminating brake through hydromantic
Model of Steering Device	BZZ5-250	Hydraulic System
Steering Angle	±33 o	Digging Power of Excavator Grab	46.5KN
Min. turning radius	6950mm	Digging Power of Dipper	31KN
Pressure of the system	12Mpa	Bucket Lifting Time	6.8S
Axle		Bucket Lowering Time	3.1S
Manufacturer	Carraro (Italy)	Bucket Discharge Time	2.0S
Rated dynamic/static Load of front axle	9t/22.5t

Backhoe Loader :
the backhoe loader also called a loader backhoe,is a heavy equipment vehicle that consists of a tractor fitted with a bucket on the front and a backhoe on the back. Due to its small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.) as well as developing countries. This type of machine is similar to and derived from what is now known as a TLB (Tractor-Loader-Backhoe), which is to say, an agricultural tractor fitted with a front loader and rear backhoe attachment.


Attachments:
Our backhoe loader can be with some more attachements excapt the standard bucket. for exmple the 4 in 1 bucket, Quick Change, Fork, Auger, Hamer, Grass Grab, Wooden Fork, Snow blade, sweaper, Rops And so on.



Our Service :
Pre-sale service:
To our customers, before you buy the equipments, we hope to understand your needs, according to your machine requirements and your budget; choose the right model for you, to ensure that you buy high-quality products at a lower price.
At the same time, you are welcome to visit our factory in LINYI, China; we will book hotels, air tickets and take you up from air port.


After-sale service:
After the sale, we will properly arrange the transportation of the machine to ensure that the goods are safely delivered to your hands.
At the same time, we will provide you with technical support 24 hours a day, or send engineers to guide the installation and operation. If there are any quality problems with the machine, we will solve it for you in the first time.

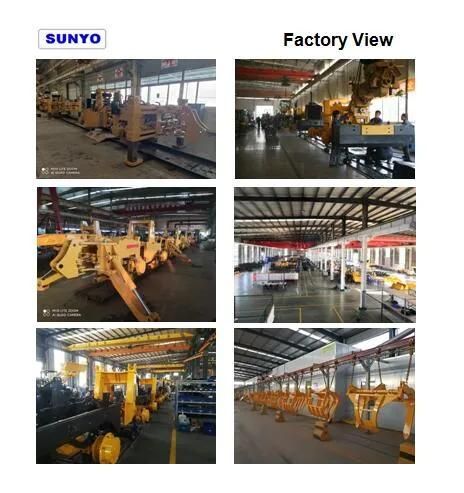

Factory View:

Here show some factory pictures to help you understand our company.
Exhibition:
Here show you some exhibition pictures .
Certificate :

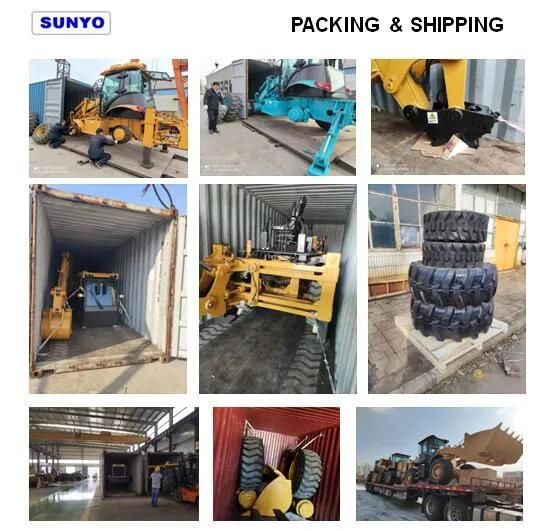

Packing & Shipping:

We have been engaged in foreign trade for more than 18 years and have very rich experience in shipping. According to the past situation, each of our products is complete and delivered to customers as planned.
Generally, For the SY388 backhoe loader , one set need one 40H conainer, or two sets load into one 40H container and one 20 container.  it also can load in the bulk ship, or Ro-on/Ro-off ship. it according your requirements.
FAQ:
Q1: Which country do you export to?
Asia: Pakistan, Philippines, Thailand, Myanmar, Vietnam, Bangladesh, Kazakhstan, Turkmenistan, etc.
Middle East: Iran, UAE, Jordan, Oman, Saudi Arabia, Syria, etc.
Europe: Poland, Russia, Ukraine, Belarus, Bulgaria, etc.
Africa: South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America: Paraguay, Colombia, Brazil, Peru, Chile, Cuba, Venezuela, etc.
Oceania: Australia, etc.

Q2: What is the proportion of your products export?
90% of our products are exported to all over the world.

Q3: What is the payment term?
We can discuss with you. Consider for long-term customers we are favorable payment terms TT, L/C, west union. It depends on the cooperation time, country and contract value.

Q4: What kind of logistic service do you supply?
FOB, CIF, C&F

Q5: What spare parts can you supply?
All kinds of spare parts of SUNYO JCM, SDLG, SHACMAN,  SHANTUI, YTO,  etc.
