• Model NO.：JHE-200
• Certification：CE
• Condition：New
• Engine：Gasoline Engine
• Milling Width：200mm
• Max Milling Dpth：3-5mm
• Working Efficiency：33-46m2,Hr
• Milling Mode：Declination
• Transport Package：Carton with Hob
• Specification：82*49*81CM
• Trademark：ACE
• Origin：China
• HS Code：8501101000
• Production Capacity：5000PCS,Month

Power SourceGX160 Honda/SiemensKohler CH270/178F DieselGX270Electrical motorCH395 engineHorse Power5.5HP4KW7HP5.5 HPWorking width200mm200mm200mm200mmWorking depth0-5mm0-5mm0-5mm0-5mmNo. of shaft6pieces6pieces6pieces6piecesNo. of cutter90pieces90pieces90pieces90piecesPower DriveManualManualManualManualWorking area20-40 m2 / H20-40 m2  / H20-50  m2  / H20-40 m2 / HNet Weight105KG116KG132KG119KGL× W× H820×490×810mm820×490×810mm820×490×810mm820×490×810mmDrum RotationDown cut (clock wise)Milling modedownward cutDepth ControlAdjustable

STYLE	ENGINE	MILLING  WIDTH(MM)	MAX MILLING  DPTH(MM)	WORKING  EFFICIENCY(M2/HR)	SIZE(MM)	N.W (KG)	G.W (KG)
JHE-200	HONDA GX160 5.5HP	200	3-5	33-46	820X490X810	105	110

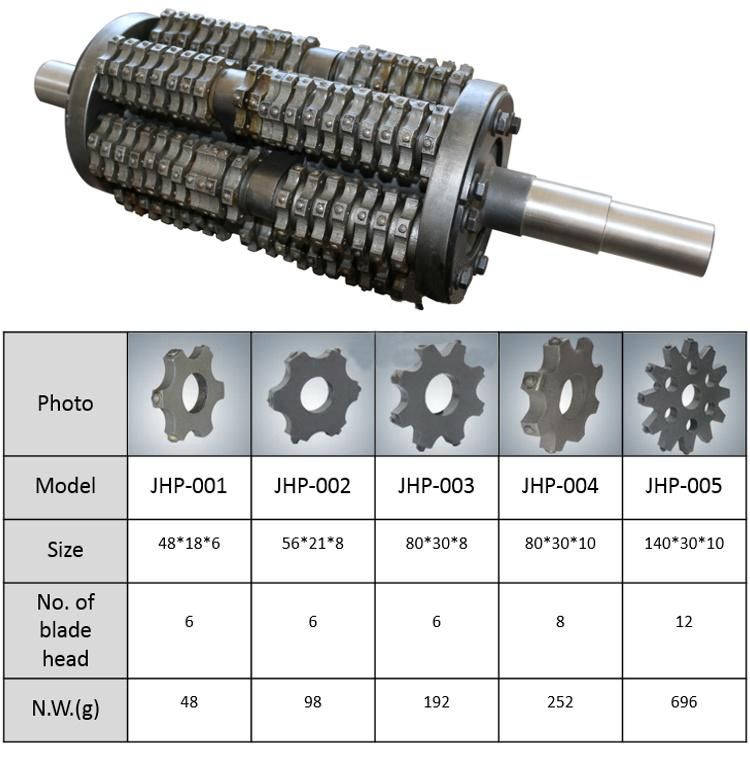

our Drum and cuttrers details

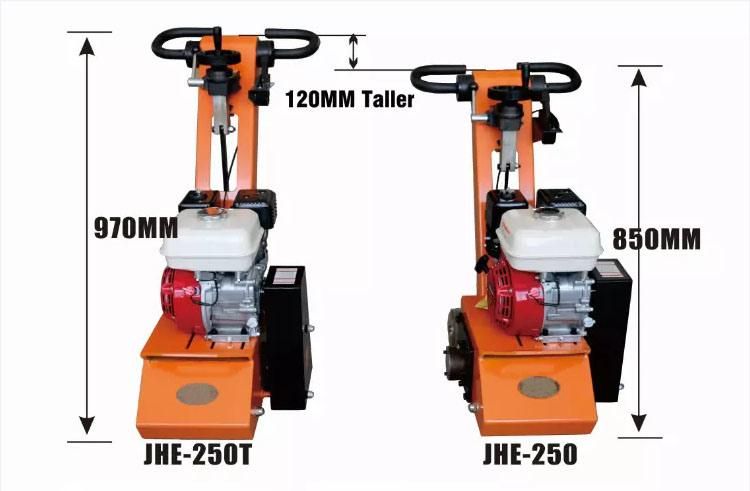

970mm(38") and 850mm(33.5")Height are Built for Your Choice

What's our road scarifier machine used for?

Products are widely used in

• municipal conservation,
• road construction,
• building construction,
• flooring treatment(epoxy floor, wear-resistant floor)
• other fields.(remove traffic line, rutty of road and airport)
