• Model NO.：L53-C3
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：Nude Package
• Specification：7975*3030*3500mm
• Trademark：shantui
• Origin：China
• HS Code：8429510000
• Production Capacity：100untis,Month

Basic Info.

Model NO. L53-C3 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Package Specification 7975*3030*3500mm Trademark shantui Origin China HS Code 8429510000 Production Capacity 100untis/Month

Product Description

Hot Sell L53-C3 5t Tire Wheel Loader Pressure Heavy Equipment Loaders Parts
 Specification


Engine

  Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.

  The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.

Structural parts

The high-strength design and the CAE analysis are applied to eliminate partial weaknesses and the high-strength destructive tests are taken to meet the needs of diversified severe working conditions.

The critical parts are welded by robots to ensure high fusion depth and stable weld quality and guarantee the stability of core carrying parts.

The working device is design optimized to realize fast motion, high breakout force, powerful lifting capacity, optimized bucket shape, low insertion resistance, and high fullness rate.

Hydraulic system

 The double pump confluence technology matches with priority valve hydraulic system and load-sensing coaxial flow amplified steering system to achieve rapid hydraulic response and high operating efficiency of machine working and steering systems.

High operating comfort

The cab in full-sealed structure features noise reduction, dust-proof, heat insulation, and broad vision and can be installed with A/C and heating system to achieve comfortable driving/riding.

 The pilot and mechanical controls for the working device are offered at choice to meet the needs of different customers and the electronic control accelerator pedal, brake pedal, working device joysticks, and all control buttons are redesigned to achieve high human-machine interaction and mitigate long-time working fatigue.

Paramenters

Parameter name	L53-C3 FL (Flexible version)	L53-C3 CH (Coal version)
Performance parameters
Operating weight (Kg)	16700	17000
Maximum dumping height (mm)	3415	3245
Dumping reach (mm)	1050	1210
Maximum breakout force (kN)	≥168	≥168
Total cycle time (s)	10	10
Engine
Engine model	WP10	WP10
Rated power/rated speed (kW/rpm)	162/2000	162/2000
Overall dimensions
Overall dimensions of machine (mm)	7975*3030*3500	8025*3030*3500
Driving performance
Forward speed (km/h)	F1:0-13,F2:0-42	F1:0-13,F2:0-42
Reversing speed (km/h)	R:0-15	R:0-15
Chassis System
Wheelbase (mm)	2920	2920
Tank capacity
Fuel tank (L)	193	193
Working device
Rated bucket capacity (m³)	3	3.6
Rated loading capacity (t)	5	5

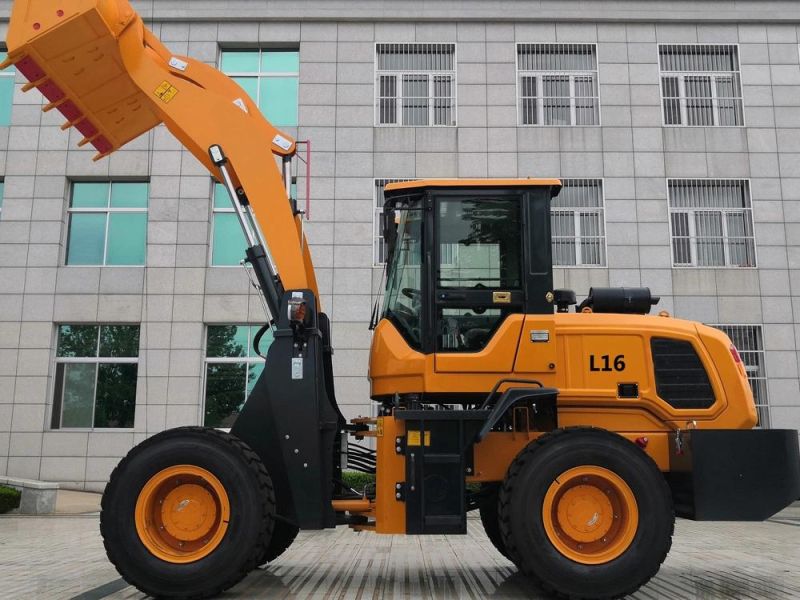

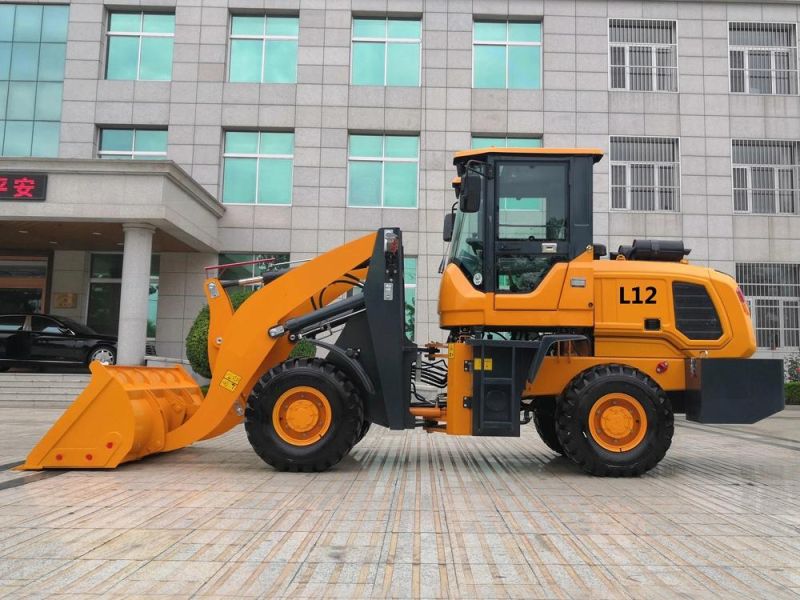

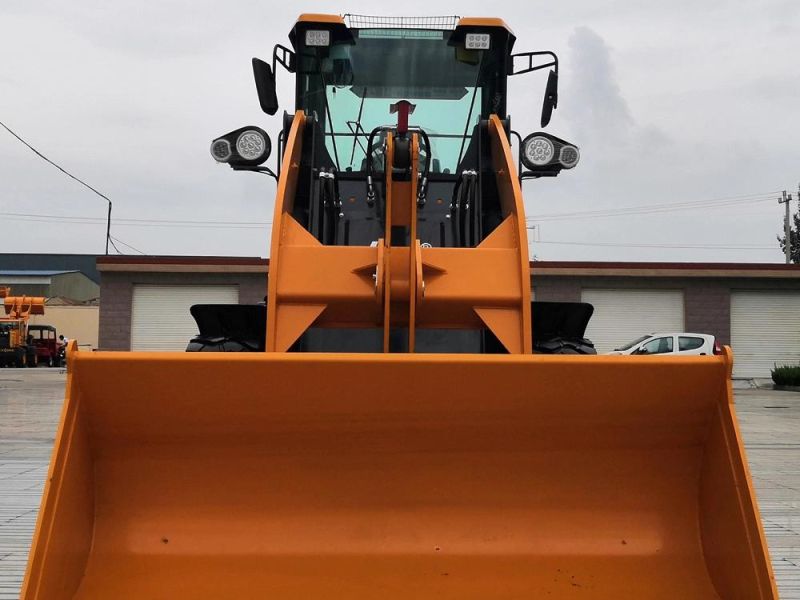

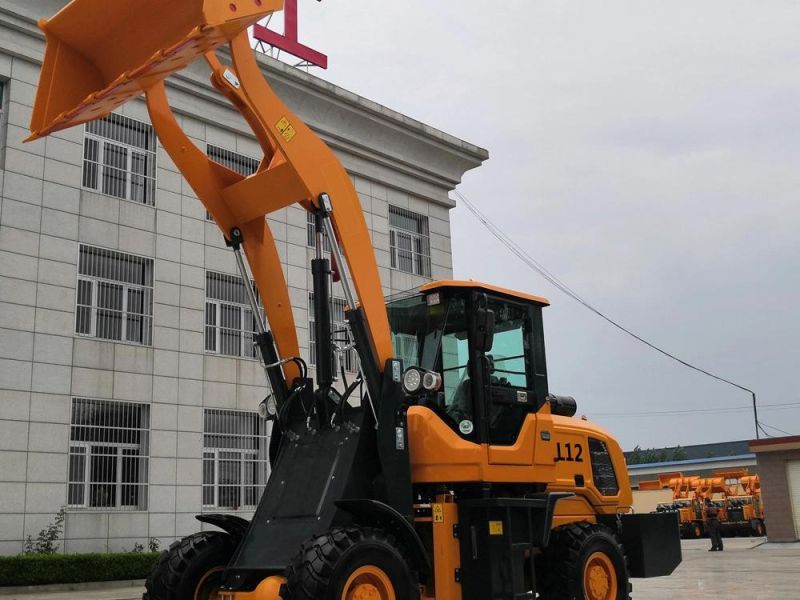

 Product pictures
