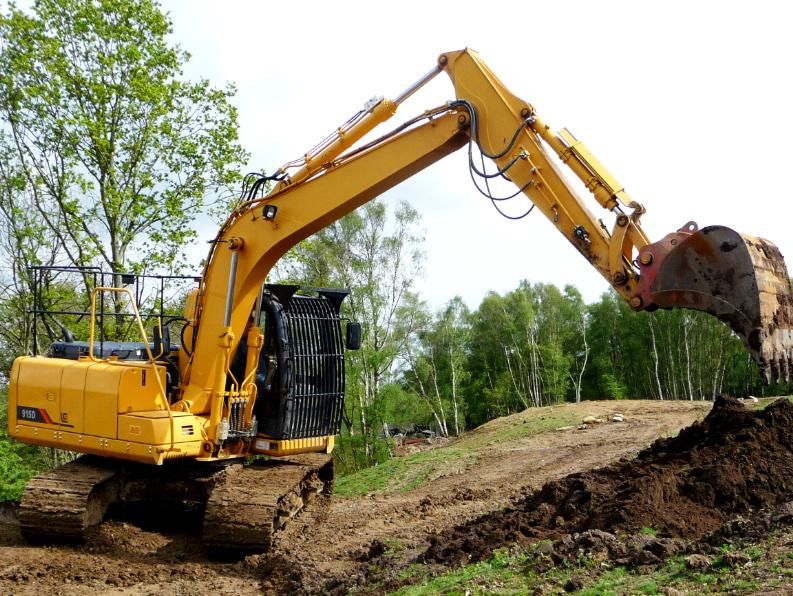

Liugong 35 Ton Crawler Digger
Maxizm Construction Machinery (Qingdao) Co., Ltd.- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
- Drive Type：Internal Combustion Drive
- Bucket Capacity：>1.5m³
Base Info
- Model NO.：936E
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Engine Power：186kw
- Travel Speed：5.5,3.4km,H
- Maximum Swing Speed：10 Rpm
- Arm Breakout Force：170 Kn
- Arm Breakout Force Power Boost：185 Kn
- Bucket Breakout Force：232 Kn
- Bucket Breakout Force Power Boost：252 Kn
- Track Shoe Width：600 mm
- Boom：6400 mm
- Arm：3200 mm
- Digging Reach：11100 mm
- Digging Reach on Ground：10900 mm
- Digging Depth：7340 mm
- Vertical Wall Digging Depth：6460 mm
- Cutting Height：10240 mm
- Transport Package：Nude
- Specification：35000 kg
- Trademark：FAMOUS
- Origin：China
- HS Code：84295212
- Production Capacity：1000units,Year
Description
Bucket capacity
1.6 / 1.9 m³
Maximum travel speed (High)
5.5 km/h
Maximum travel speed (Low)
3.4 km/h
Maximum swing speed
10 rpm
Arm breakout force
170 kN
Arm breakout force Power boost
185 kN
Bucket breakout force
232 kN
Bucket breakout force Power boost
252 kN
Shipping length
11167 mm
Shipping width
3190 mm
Shipping height
3530 mm
Track shoe width (std)
600 mm
Boom
6400 mm
Arm
3200 mm
Digging reach
11100 mm
Digging reach on ground
10900 mm
Digging depth
7340 mm
Vertical wall digging depth
6460 mm
Cutting height
10240 mm
Dumping height
7160 mm
Minimum front swing radius
4465 mm
Model
6C8.3
Emission
EPA Tier 2 / EU Stage II
System maximum flow
2×300 L/min (2x79 gal/min)
System pressure
34.3 MPa
