• Model NO.：WZ30-25
• Usage：Universal Type
• Scraper Type：Pull Scraper
• Load and Unload Method：Front Discharge
• Engine Power：<74kw
• Color：Colour as Our Customer Required
• Transport Package：Wood Frame
• Specification：A
• Trademark：CHHCC
• Origin：Henan
• HS Code：84295100
• Production Capacity：100 Per Month

Basic Info.

Model NO. WZ30-25 Usage Universal Type Scraper Type Pull Scraper Load and Unload Method Front Discharge Engine Power <74kw Color Colour as Our Customer Required Transport Package Wood Frame Specification A Trademark CHHCC Origin Henan HS Code 84295100 Production Capacity 100 Per Month

Product Description

Introduction:



Backhoe loader is a kind of small engineering machinery of high productivity, multiple functions and high reliability, which encompasses the basic loading and excavating function and it is suitable for digging ditches, loading earthwork, transporting materials or conducting basic backfill, especially in some sites with narrow paths. Since multiple kinds of working accessories, such as breaking hammer and plate compactor at the excavating device end and screw-thread drill at the loading working device, which has truly achieved the multi-functionality of one vehicle.



1. Power system:

It adopts the Cummins turbocharged engine, which entails greater power and torque reserve and boasts reliable performance and the power reserve suitable for using in high-altitude regions.

2. Drive system:

The drive system adopts the imported popular configurations in internationally advanced level of backhoe loader: fourth gear synchronization, the gear box with forward and backward direction switch in EHC as well as the rear drive axle equipped with differential lock and maintenance-free wet brake.

3. Hydraulic system:

The hydraulic system has been equipped with special auxiliary oil way to meet the usage requirements of some auxiliary tools such as impact hammer and hydraulic ram as well.

Main Technical Specification



Length(with bucket on ground)	mm	7077
Width	mm	2350
Load Bucket width	mm	2313
Height(To the top of the cab)	mm	2710
Height(To the top of the digging pole)	mm	3424
Wheelbase	mm	2155.5
Back wheel Tread	mm	1700
Fore wheel Tread	mm	1880
Min. ground clearance	mm	355 for 2WD



Main Loading Technical Specification



Rated load	kg	1700
Operating weight	kg	7250
Max lifting capability	kg	>2500
Rated load bucket capacity	m3	1
Max. load breakout force	kN	>60
Max. dump clearance	mm	2714
Max. Dump reach	mm	845
Dump angle at any position		≥43.50
Min. turning radius
(1) Outside of bucket		5280 for 2WD
(2) Center of front wheel		3795 for 2WD
Lifting time of loading bucket	sec.	≤4.5
Lowering time of loading bucket	sec.	≤3.5
Dumping time	sec.	≤1.5



Traveling speed,4 forward and 4 reverse



(1) I gear forward	Km/h	6
(2) II gear forward	Km/h	9.6
(3) III gear forward	Km/h	20.5
(4) IV gear forward	Km/h	38
(1) I gear reverse	Km/h	6
(2) II gear reverse	Km/h	9.6
(3) III gear reverse	Km/h	20.5
(4)IV gear reverse	Km/h	38



Main Digging Technical Specification



Rated digging bucket capacity	m3	0.3()
Max. digging depth	mm	4405
Max. digging radius	mm	5481
Max. dumping height	mm	3737
Max. digging  force	kN	>50+10%



Diesel engine



Model		Cummins
Type		Direct injection. Turbocharged. Water cooling
Rated power / Rated speed	kW/ r/min	74/2200
Min. specific fuel consumption	g/Kw.h	225

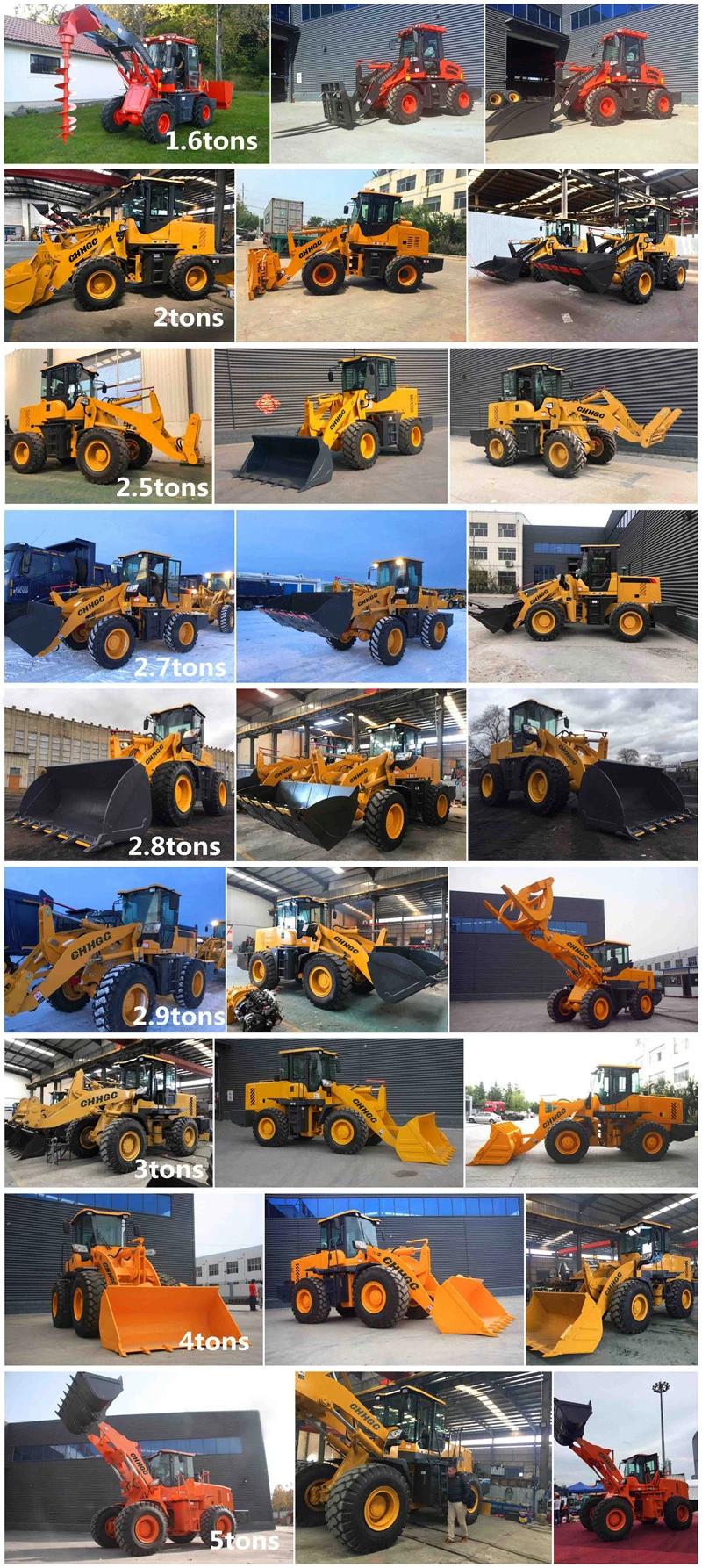

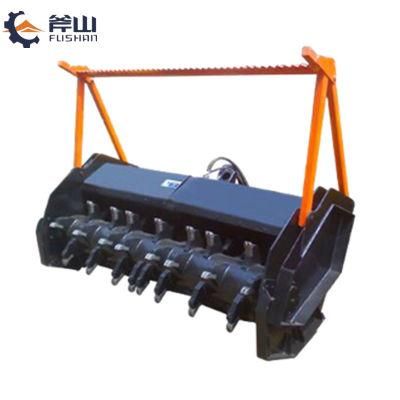

Products series

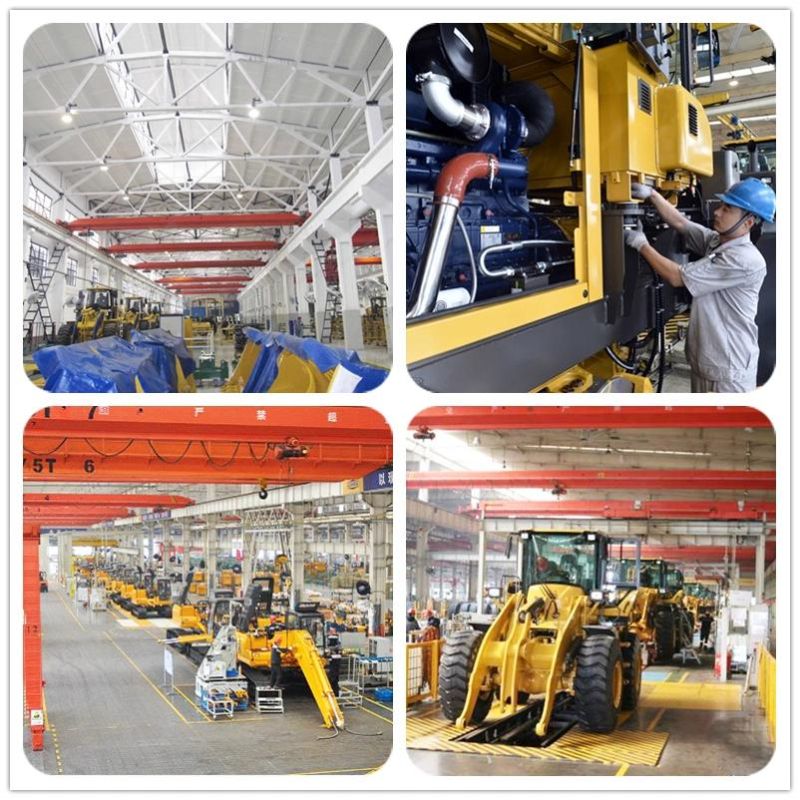

Production Workshop


Certificate


Business Partners

FAQ

Q1. How to ship the loader?
A:    By container, bulk ship, RORO.

Q2. Do you have different loader?
A:   Yes,we supply different model loaders and exported to many countries.

Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
     T/T, deposit in advance, and balance paid before delivery from factory.

Q4. Which type loader do you supply?
A:  We supply all kinds of loader such as 1.6T,2T,3T etc,.

Q5. What is your terms of delivery?
A:    FOB, CIF.

Q6. How about your delivery time?
A:   Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q7. Do you test all your goods before delivery?
A:   Yes, we have 100% test before delivery

Q8: What can you guarantee to your business partner?
A:   Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
