• Model NO.：all
• Mounting Size：50*24mm
• Max. Current：10A
• Max. Voltage：250VAC
• Operating Speed：5mm-0.5m,S
• Protection Level：IP65
• Transport Package：Case
• Specification：Standard
• Trademark：SYM
• Origin：China
• Production Capacity：1000 Sets,Month

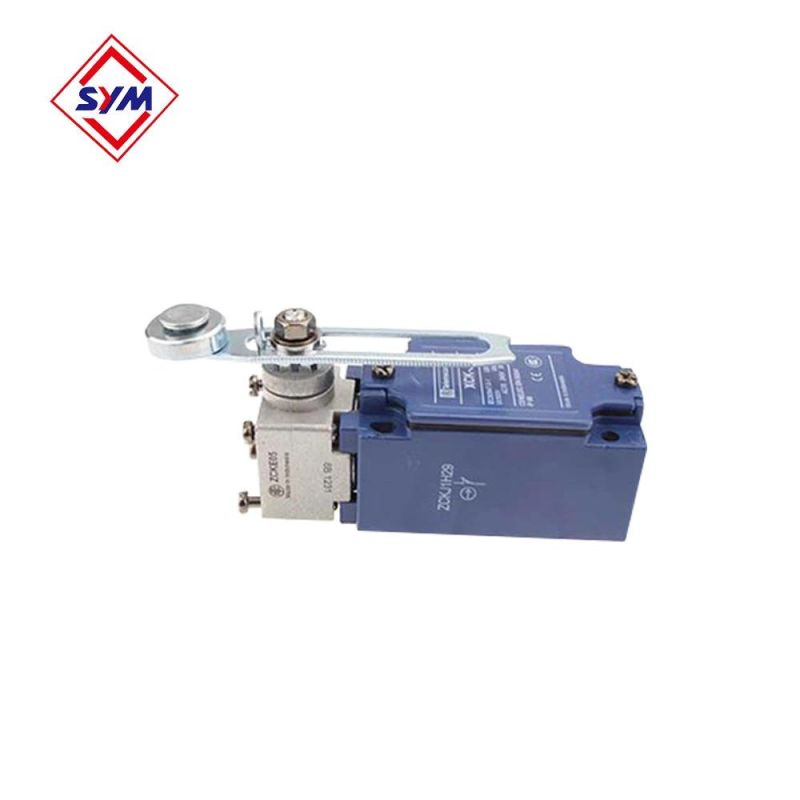

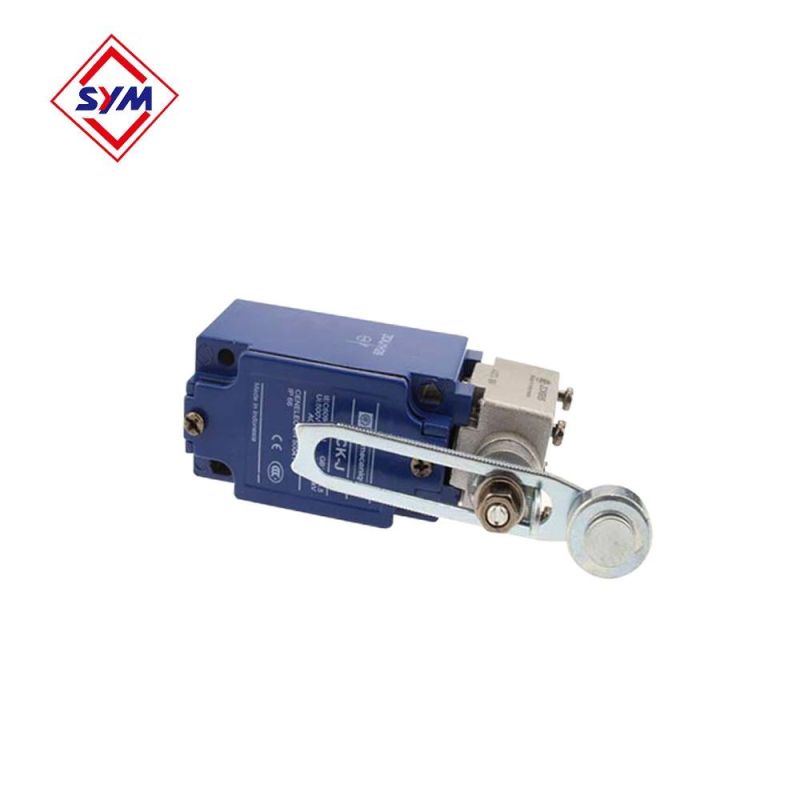

 BrandsSYMModelLHL-C22Voltage:250/125 VACElectric current:10AProtection level:IP65Contact form:SPDTPackage:

CARTON

Size:33*34*81.4*mmCertified:CCC CE Operating speed 0.5-50cm/s Operating frequency Mechanical:120 times/min Electrical:30 times/min Initial insulation resistance 100MΩmin.(at 500VDC) Initial contact resistance 25MΩmax. Dielectric
 strength Between non-consecutive
 terminals 1,000Vrms, 50/60Hz for 1 min Between non-current carrying
 metal parts and each terminal 1,500Vrms, 50/60Hz for 1 min Between ground and each
 terminal 1,500Vrms, 50/60Hz for 1 min Vibration resistance 10-55Hz,1.5mm double amplitude Shock resistance Mechanical durable:1000m/s2{100G,S}max.
 Malfunction: 300m/s2{30G,S}max.







SYM HOIST & TOWER CRANE QUIPMENT CO.,LTD located in Shenyang China is one of the biggest supplier and export of tower crane, luffing crane , topless crane , passenger hoist along with the spare parts for them. With 20 years' experience on tower crane rent , installation , repair and reconstruction, the company has more than 50 experienced mechanical and electrical engineer responsible for the installation guide, failure diagnosis, maintainance and reconstruction for the tower craneattheconstructionsite.
Having a long-term and good cooperative relationship with China's most famous manufacturer of tower crane and passenger hoist like YONGMAO, SANYO, Sichuan SCM, Zoomlion, GJJ, BAODA,etc. The company can offer you the best quality original tower crane and passenger hoist withmostcompetitivepric
