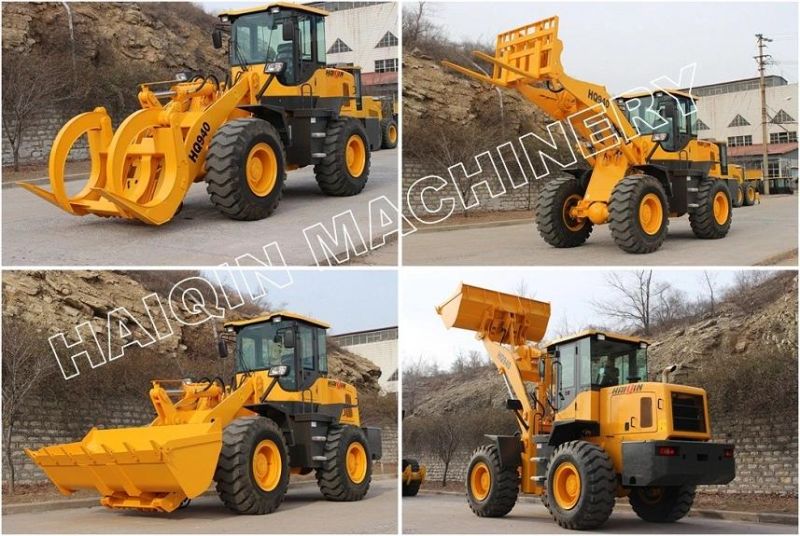

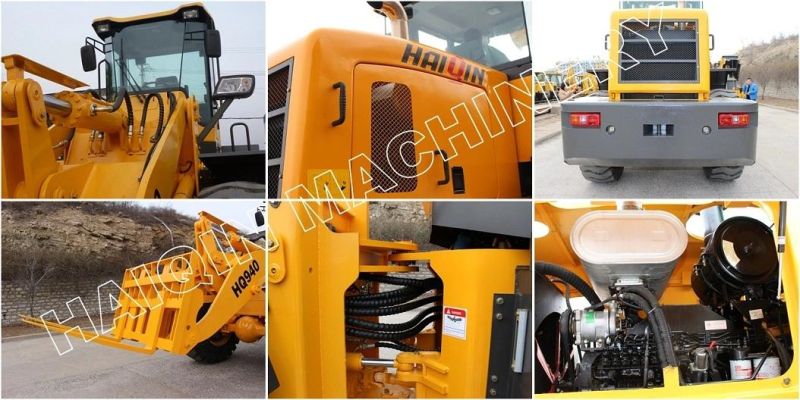

Strong Multi-Function Wheel Loader (HQ940) with Timber Brab

Weifang Haiqin Top Machinery Co., Ltd.
  • After-sales Service：24 Hours Every Day of Technology and Parts Service
  • Warranty：12 Months
  • Certification：ISO, CE, SGS, Rops&Fops
  • Condition：New
  • Rated Load：3-6t
  • Transmission：Hydraulic

Base Info

  • Model NO.：HQ940
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled
  • Type：Large Loader
  • Operating Weight：12000kg
  • Engine：Deutz or Cummins or EPA Tier 3 , 4
  • Loading Capacity：4000kg
  • Overall Dimension (L×w×h)：7027X2435X3227 Mm
  • Transport Package：1 Unit in One Hq40 Container
  • Specification：CE, ISO, SGS, ROPS&FOPS
  • Trademark：Haiqin
  • Origin：Shandong, China
  • HS Code：84295100
  • Production Capacity：8000 Units , Year

Description

Performance1rated loading4000kg2overall weight12000kg3rated bucket capacity2-2.2m³4maximum tractive force97KN5maximum breakout force127KN6maximum grade ability30 degree7maximum dump height3200mm8maximum dump reach1100mm9overall dimension (L×W×H)7017x2500x3340 mm10minimum turning radius6400mmEngine11modelDeutz WP6G175E 22 / Cummins 6BTA 5.9-C180 / TIER 4 (EPA) Engine12type
lnline water cooled, four stroke14rated power175HP15maximum torque500N.m16min fuel-consume ratio≤210g/kw.hTransmission system17torque converterYJ315_x18gearbox modePower shift normally engaged straight gear19gear shift4forward shift , 2 reverse shift or
4forward shift , 3 reverse shift (ZF technical)
 20maximum speed40km/hDrive axles21main reducing mode
Bevel gear grade lreduction22decelerating mode
Bevel gear grade lreduction23wheel base (mm)2750mm24wheel tread1850mm25ground clearance400mmHydraulic system26system working pressure 16.5MPa27boom lifting time4.83s28total time 9.15s±0.5s29fuel tank capacity156L30function of leveling automaticallyyesBrake system31service brakeair assist disc brake on 4 wheels32parking brakeManual disk brakeTyre33type specification20.5-25Strong Multi-Function Wheel Loader (HQ940) with Timber Brab
