• Model NO.：HT18
• Drive Type：Electric Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE, EPA
• Condition：New
• Emission Standard：EPA4,Euro V
• Make：Kubota
• Model：D1105
• Power /Rotation Speed：14.1kw(19HP)@2000rpm
• Number of Cylinder：3
• Maximum Travel Speed：2.5km,H
• Width of Track Shoe(Rubber & Steel Track：230mm
• Standard Bucket Capacity：0.06m³
• Swing Speed：10~12 Rpm
• Max. Grade Ability：35°
• Max. Bucket Digging Force：14kn
• Max. Arm Digging Force：10kn
• Hydraulic System Pressure：16MPa
• Transport Package：Wooden Box
• Trademark：HIGHTOP
• Origin：China
• Production Capacity：50000

Basic Info.

Model NO. HT18 Drive Type Electric Drive Bucket Capacity 0.5~1.0m³ Size Medium-Sized Certification CE, EPA Condition New Emission Standard EPA4/Euro V Make Kubota Model D1105 Power /Rotation Speed 14.1kw(19HP)@2000rpm Number of Cylinder 3 Maximum Travel Speed 2.5km/H Width of Track Shoe(Rubber & Steel Track 230mm Standard Bucket Capacity 0.06m³ Swing Speed 10~12 Rpm Max. Grade Ability 35° Max. Bucket Digging Force 14kn Max. Arm Digging Force 10kn Hydraulic System Pressure 16MPa Transport Package Wooden Box Trademark HIGHTOP Origin China Production Capacity 50000

Product Description

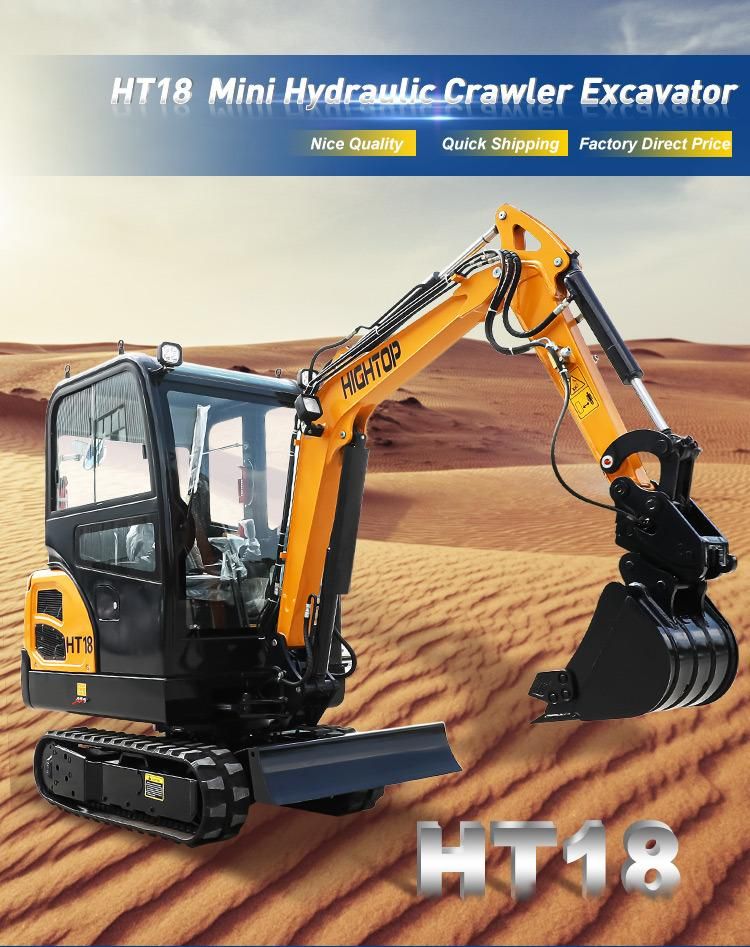

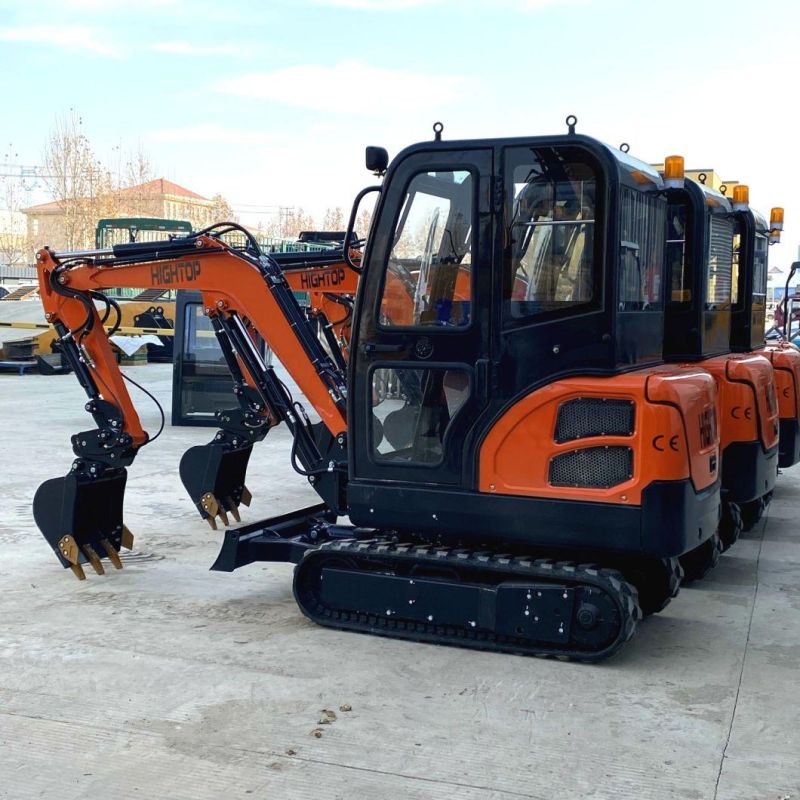

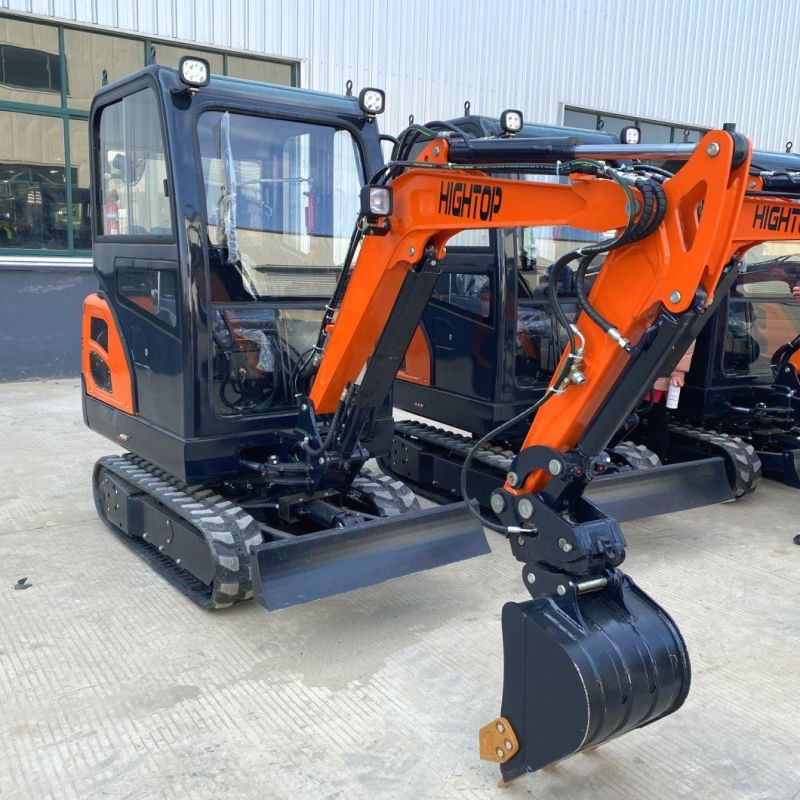

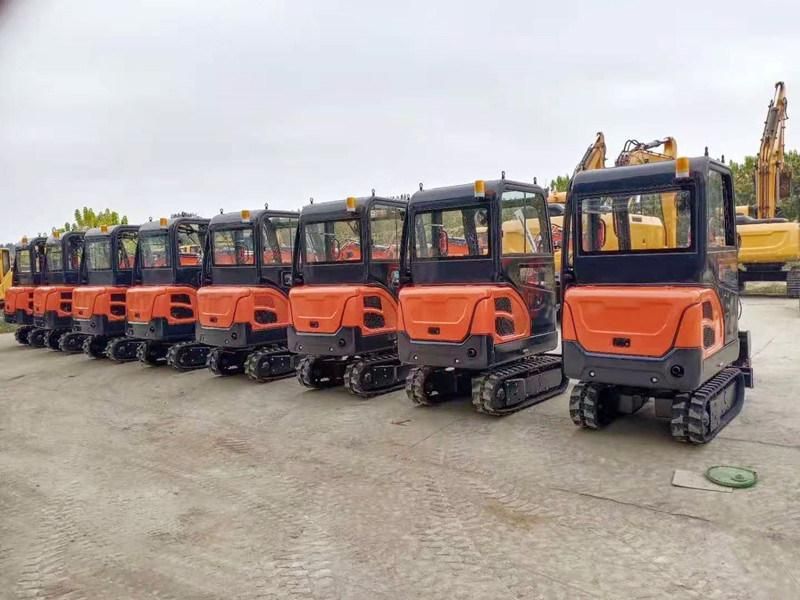

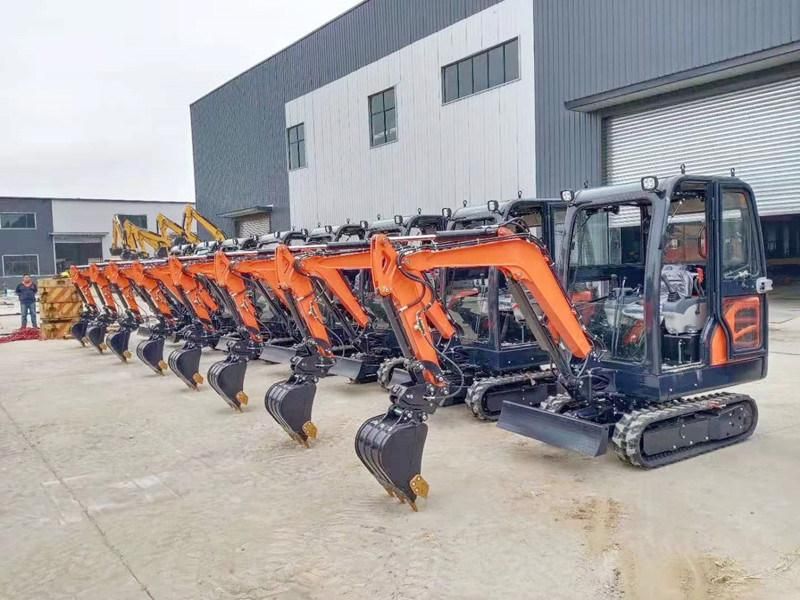

The crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted international brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with broken pipeline system , adopted the hydraulic pilot servo operation system , the machine can changed track from rubber to steel and cabin from open to closed. ensure it can work in different working environments and conditions.
Compact, light and small turning radius, are its unique structural features; which makes it plays a biggest role in limited working sites.

1-KUBOTA D1105 engine , with EPA,14.1kw, Euro V
2-China brand pump
3-China brand valves
4-EATON brand slewing motor
5-EATON brand driving motor

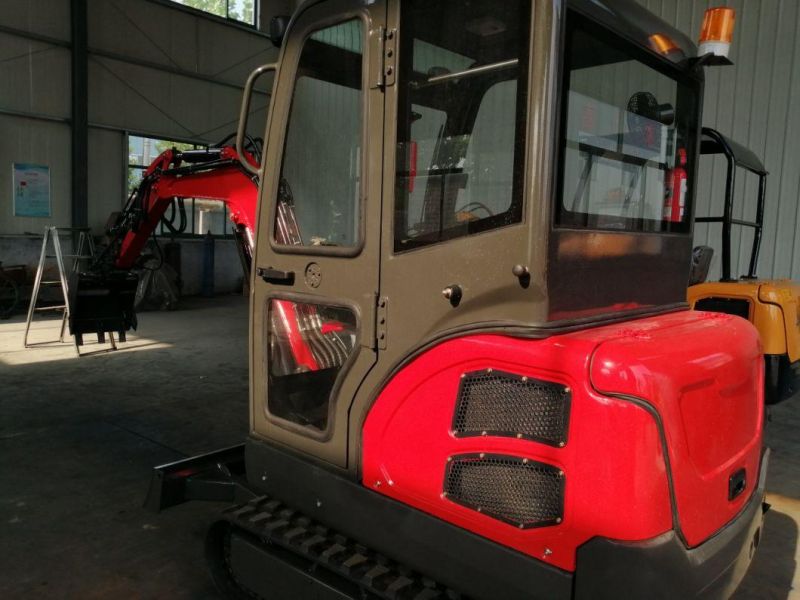

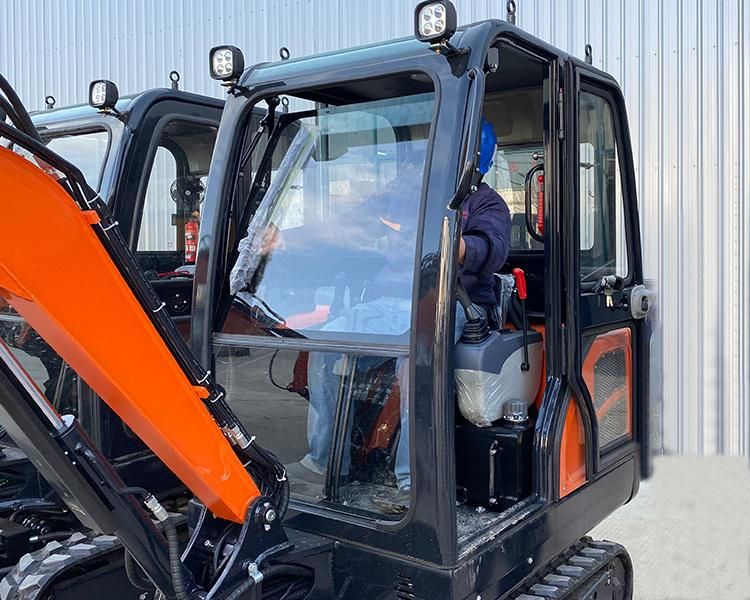

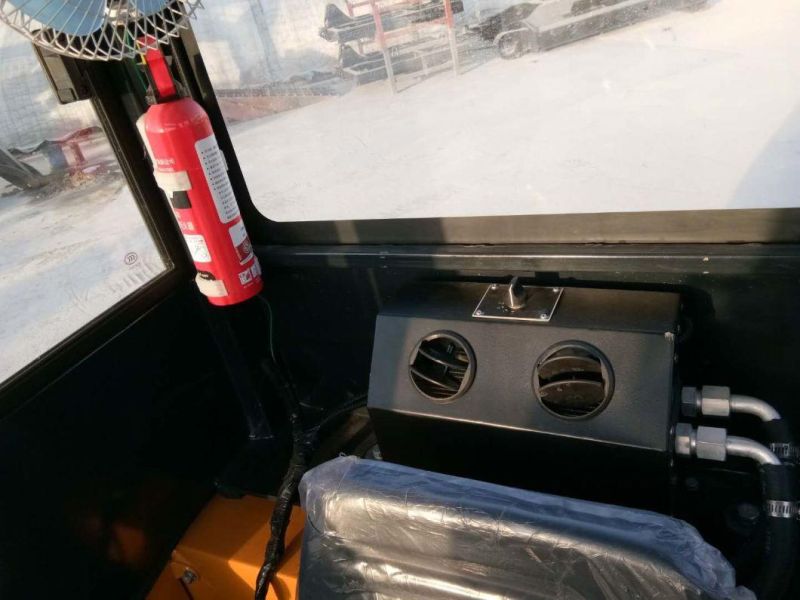

6-closed cabin
7-Hydraulic pilot servo operation system
8-Rubber track :230mm
9-With broken pipeline system
10- Bucket capacity: 0.06m³
11-It can install Retractable track(ADD: 1100USD)
