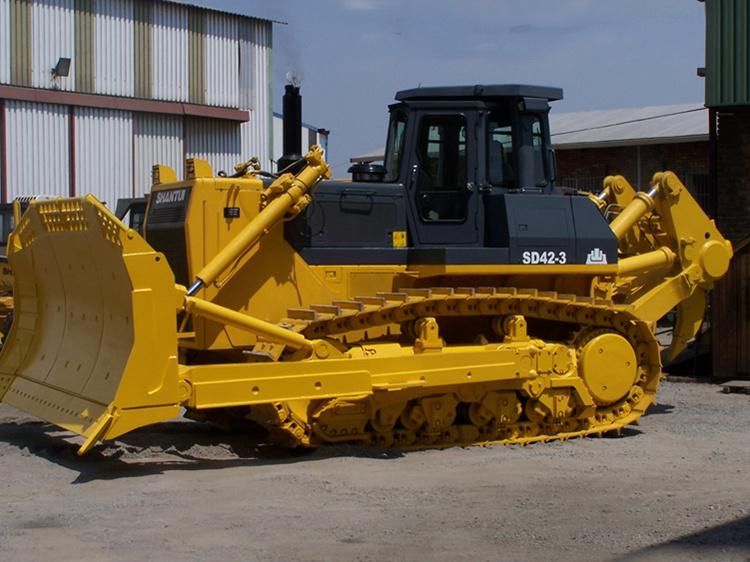

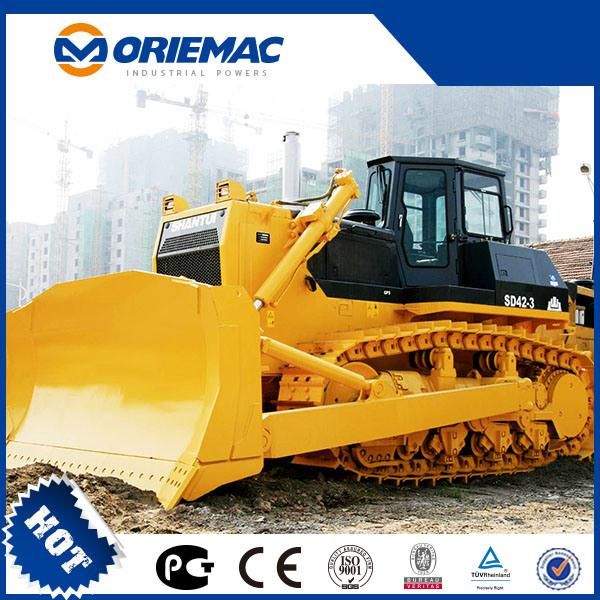

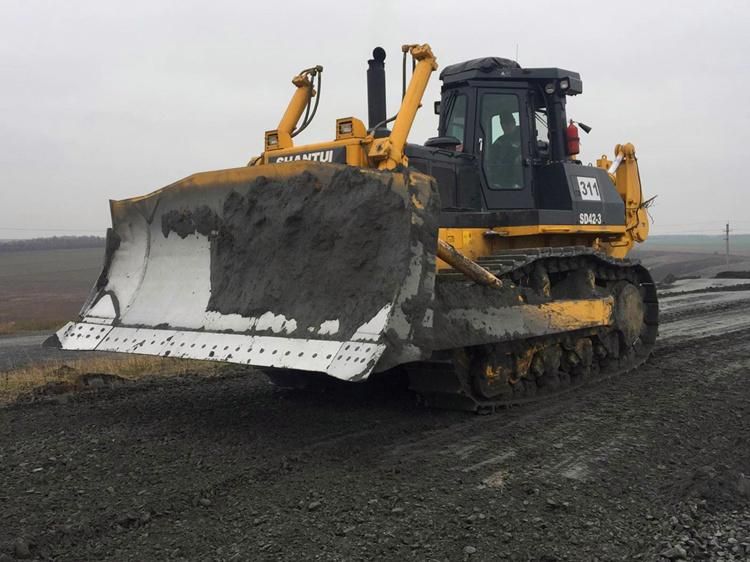

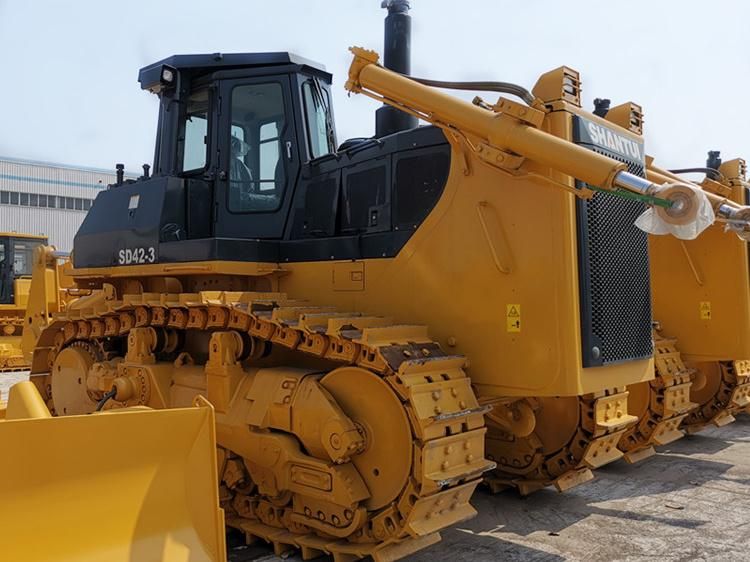

5% Discount Shantui Crawler Bulldozer SD42-3 420HP Big Bulldozer 52 Ton
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Universal Type
- Transmission：Hydraulic Transmission
- Walking Mode：Crawler
- Load and Unload Method：Front Discharge
- Engine Power：147~515kw
- Certification：CE, ISO9001: 2000
Base Info
- Model NO.：SD42-3
- Condition：New
- Color：Yellow
- Operating Weight：52000kg
- Engine Model：Cumins Kta19
- Blade Type：Semi-U Blade
- Digging Depth：700mm
- Transport Package：Nude Package
- Specification：ISO, CE
- Trademark：SHANTUI
- Origin：Shandong, China (Mainland)
- Production Capacity：5000 Units, Month
Description
Basic Info.
Model NO. SD42-3 Condition New Color Yellow Operating Weight 52000kg Engine Model Cumins Kta19 Blade Type Semi-U Blade Digging Depth 700mm Transport Package Nude Package Specification ISO, CE Trademark SHANTUI Origin Shandong, China (Mainland) Production Capacity 5000 Units/ MonthProduct Description
5% discount shantui crawler bulldozer SD42-3 420hp big bulldozerENGINE POWER With 340KW/2200, this engine conforms to China-II emission regulation.OVERALL WEIGHT 52000KGENGINE MODEL KTA19-C525
| Parameter name | SD42-3(STANDARD) |
| Performance parameters | |
| Operating weight (Kg) | 52000 (Ripper not include) |
| Ground pressure (kPa) | 123 |
| Engine | |
| Engine model | Chongqing cummins KTA19-C525 |
| Rated power/rated speed (kW/rpm) | 340/2200 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 9629*4300*3875 |
| Driving performance | |
| Forward speed (km/h) | 0~12.2/0~14.8 |
| Reversing speed (km/h) | 0~12.2/0~14.8 |
| Chassis System | |
| Center distance of track (mm) | 2260 |
| Width of track shoes (mm) | 610 |
| Ground length(mm) | 3560 |
| Tank capacity | |
| Fuel tank (L) | 650 |
| Working device | |
| Blade type | Semi-U |
| Digging depth (mm) | 700 |
| Ripper type | Single shank |
| Ripping depth (mm) | 1400 |
