• Model NO.：CLG6516E
• Travel Speed：25cm,s
• Centrifugal Force：18KN
• Certification：CE, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Transport Package：in Nude
• Trademark：LIUGONG
• Origin：Guangxi, China
• HS Code：8429401100
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. CLG6516E Travel Speed 25cm/s Centrifugal Force 18KN Certification CE, ISO 9001:2000, ISO 9001:2008 Condition New Transport Package in Nude Trademark LIUGONG Origin Guangxi, China HS Code 8429401100 Production Capacity 5000PCS/Year

Product Description

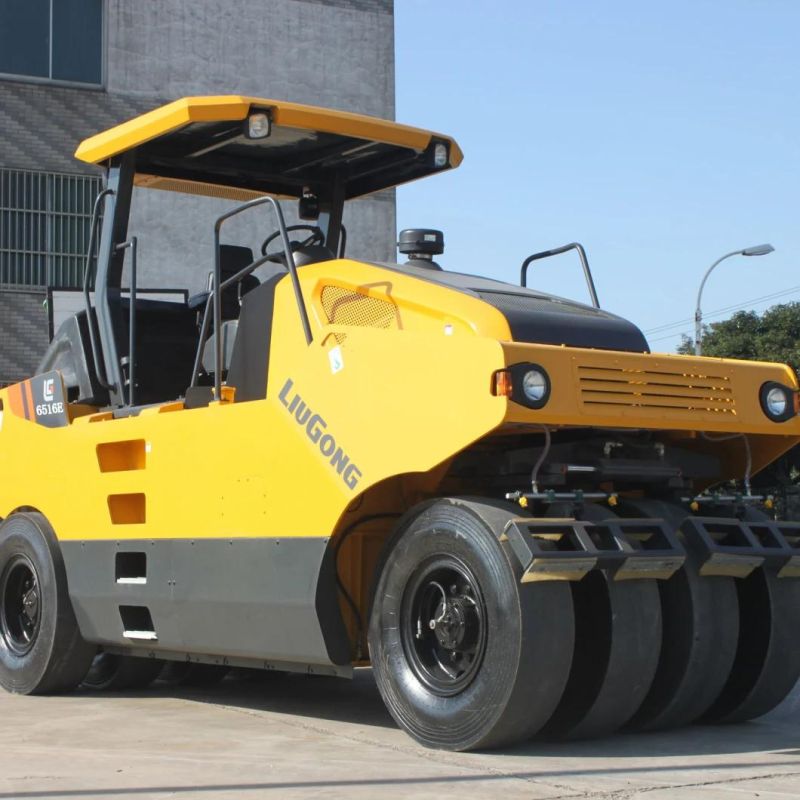

Liugong 16 Tons Compactor Clg6516e Rubber Tyre Pneumatic Roller
Product Description

·Top quality compaction is achieved by the kneading and rolling effect of the wheels as vertical pressure combined with horizontal forces produce an excellent, uniform surface finish.
·On uneven surfaces, our patented Tire Suspension System, equipped with a tiltable front shaft, enables the 4 front wheels to swing up and down by +/- 8° achieving maximum ground contact for each wheel. This delivers optimum compact and improves safety by helping prevent the roller from tilting over.
·Safety is further enhanced with a three-stage breaking system utilizing hydraulics, oil cut-off and wheel side oil breaking. This three stage system protects the operator, site workers and members of the public from accidents.

Technical Parameters

Max. Operating Mass	16000 kg
Min. Operating Mass	11000 kg
Single Tire Load	1778 kg
Overlapping of Front & Rear Tire	45 mm
Model	Cummins 4BTAA3.9
Emission Regulation	Stage II
Rated Power	97 kW (130 hp) @ 2200 rpm
Working Speed	0-7 km/h
Traveling Speed	0-16 km/h
Compacting Width	2250 mm
Theoretical Gradeability	20%
Min. Ground Clearance	290 mm
Wheelbase	3600 mm
Min. Outside Turning Radius	8000 mm
Tire Type	11.00-20-16PR
Tire Numbers	Front 4 Rear 5
Overall Length	4800 mm
Overall Width	2310 mm
Overall Height	3270 mm

Product Pictures
