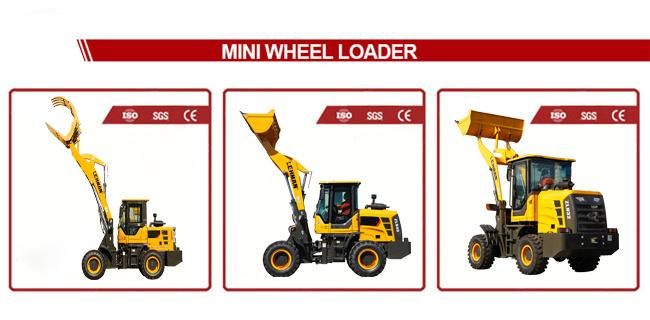

5 Ton Wheel Loaders with Optional Accessories
Shandong Lehman Construction Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：TUV, UL, ISO, RoHS, CE
- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
Base Info
- Model NO.：ZL936
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Bucket Width：2000mm
- Transport Package：Container
- Specification：6000*2000*230(mm)
- Trademark：LEHMAN
- Origin：China
- HS Code：8429510000
- Production Capacity：10000 Unit Year
Description
item specifications Performance parameters
bucket capacity (m³)
1.2 bucket width (mm) 2000 operating weight (kg) 7800 Rated load (kg) 2500 Max Climb Capability (°) 30 Minimum turning radius of bucket during loading (mm) 4996
Main dimensions and weight parameters Overall length (with accessories)(mm) 6000 Maximum width (mm) 2000 Maximum height (mm) 2830 Maximum dumpling height (- 45 ° dumpling angle) (mm) 3500 Corresponding dumpling distance (- 45 °dumpling angle) (mm) 800 Minimum ground clearance (mm)
350 Track width (left / right) (mm) 1950 Wheelbase (front / rear) (mm) 2570 Overall weight (kg 5300 engine model Huafeng 4102 with turbo Type Direct injection rated power (kw) 75 Number of cylinders 4 Bore / stroke (mm) 102 Torque converter Type Single stage three element torque converter Oil cooling mode Air cooling braking system Service braking mode Gas cap oil,pliers disc brake Parking brake mode manual operation,pliers disc brake Drive axle Type Tyre Type Tire size 16/70-20 Front tire pressure (MPa) 3 Rear tire pressure (MPa) 3 Axle(Main drive and wheel reducer) (MPa) Middle wheel edge steering system Priority valve YXL-F160L-N7 Steering pump B225-200C Steering cylinder - cylinder diameter * piston rod diameter * stroke (mm) 700*450*240 Articulated steering angle (°) 35 Working device Boom cylinder - cylinder diameter * piston rod diameter * stroke (mm) 900*600*790 Bucket cylinder - cylinder diameter * piston rod diameter * stroke (mm) 1250*800*483 multiway valve model 15-2-2 Pilot Valve 15-2-2 Refueling capacity fuel tank(L) 80 hydraulic tank(L) 80 Engine(L) 10 gearbox(L) 20 braking system(L) 1
FAQ
Q1. Are you manufacturer or trading company?
A: We are manufacturer of construction machinery, agriculture machines wheel loaders and
self loading concrete mixer trucks.
Actually,we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products
and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment.
The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with
some local partner to sell more World machines in local market and supply better service.
Q6. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty.
We can send engineer to customer place if big quality problem. We can provide internet or calling service
at any time.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our Facebook to get more videos.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Service & Warranty
1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.
2- After-sale:
We have our own overseas after-sales engineering team,can give our customer the best servies to
avoid your trouble back at home.
3 - warranty
1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts),
send us detailed pictures, then we will send good/ new parts for your replacements.
4- packing
2-3units can fit in 1*40HQ container (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
Main dimensions and weight parameters
FAQ
Q1. Are you manufacturer or trading company?
A: We are manufacturer of construction machinery, agriculture machines wheel loaders and
self loading concrete mixer trucks.
Actually,we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products
and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 30 days after receiving your advance payment.
The specific delivery time depends
on the items and the quantity of your order. Sometimes we have some in stock.
Q5. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with
some local partner to sell more World machines in local market and supply better service.
Q6. What is your warranty policy?
A: We can supply one year warranty for our machines. We will provide parts as free within warranty.
We can send engineer to customer place if big quality problem. We can provide internet or calling service
at any time.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8. Can you provide some videos of your factory and the machine working?
A: Yes, please visit our Facebook to get more videos.
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Service & Warranty
1-Spare parts supply:
We have our own spare parts departments and warehouse.We can satisfy your demand within 2-7 days.
2- After-sale:
We have our own overseas after-sales engineering team,can give our customer the best servies to
avoid your trouble back at home.
3 - warranty
1 year warranty from the date of receiving the loaders.
During Warranty, if there is any part broken because of quality problem(except easy-damaged parts),
send us detailed pictures, then we will send good/ new parts for your replacements.
4- packing
2-3units can fit in 1*40HQ container (cab disassembled to fit the height of container, Triangle wood and 10mm wire fixed.)
