High Quality 14tons Hydraulic Double Drum Vibratory Rollers Road Pavement Roller
Henan Haiheng Import and Export Co., Ltd.- Type:Road Roller
- Object:Cement Concrete Pavement
- Moving Type:Mobile
- Mixing Method:Continuous Drum
- Automatic Grade:Automatic
- Product Capacity:40~400t,h
Base Info
- Model NO.:Hydraulic Vibratory Rollers
- Certification:ISO9001: 2000, CE
- Condition:New
- Hydraulic Vibratory Rollers:ISO High Qulaity
- Vibratory Rollers:ISO
- Transport Package:Naked Packing
- Specification:A
- Trademark:CHHGC
- Origin:Henan
- HS Code:84294019
- Production Capacity:100 Per Month
Description
Basic Info.
Model NO. Hydraulic Vibratory Rollers Certification ISO9001: 2000, CE Condition New Hydraulic Vibratory Rollers ISO High Qulaity Vibratory Rollers ISO Transport Package Naked Packing Specification A Trademark CHHGC Origin Henan HS Code 84294019 Production Capacity 100 Per MonthProduct Description
High Quality 14Ton Hydraulic Vibratory Rollers Road Pavement rollerApplication:
The series of Hydraulic vibratory rollers are manufactured according to the international advanced technology and by use of imported hydraulic components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large -scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sand soil etc. Also it can effect good compaction in cohesive material, therefore the machine is an ideal equipment for expressway, mining road, embankment, sea port and industrial sites.
Main Technical Specifications
Model | LTC212/214 | LTC210/208 | |
Operating mass | kg | 14000/12000 | 10000/8000 |
Static linear load | N/cm | 333/286 | 238/231 |
From of frame | Fork-type | Fork-type | |
Crabwise movement distance | mm | ±170 | ±170 |
Vibration amplitude( HIGH/LOW) | mm | 0.8/0.4 | 0.67/0.34 |
Vibration frequency( HIGH AMPL./LOW AMPL.) | Hz | 40/46 | 45/50 |
Centrifugal force( HIGH AMPL./LOW AMPL.) | KN | 160x2/90x2 | 115x2/90x2-85x2/69x2 |
Travel speed | Km/h | 0-12 | 0-10 |
Turning speed | mm | 5605 | 5605 |
Grade ability | % | 40 | 40 |
Steering angle | ° | ±35 | ±35 |
Drum diameter | mm | 1350 | 1350/1150 |
Drum width | mm | 2100 | 2100/1730 |
Wheelbase | mm | 3717 | 3717/3217 |
Overall length | 5062 | 5062/4558 | |
Overall width | 2250 | 2250/1840 | |
Overall height | 3300 | 3000/2674 | |
Diesel model | 6BT5.9 | 4BT3.9 | |
Diesel power | KW | 110/93 | 110/80 |
Diesel speed | r/min | 2300 | 2300/2200 |

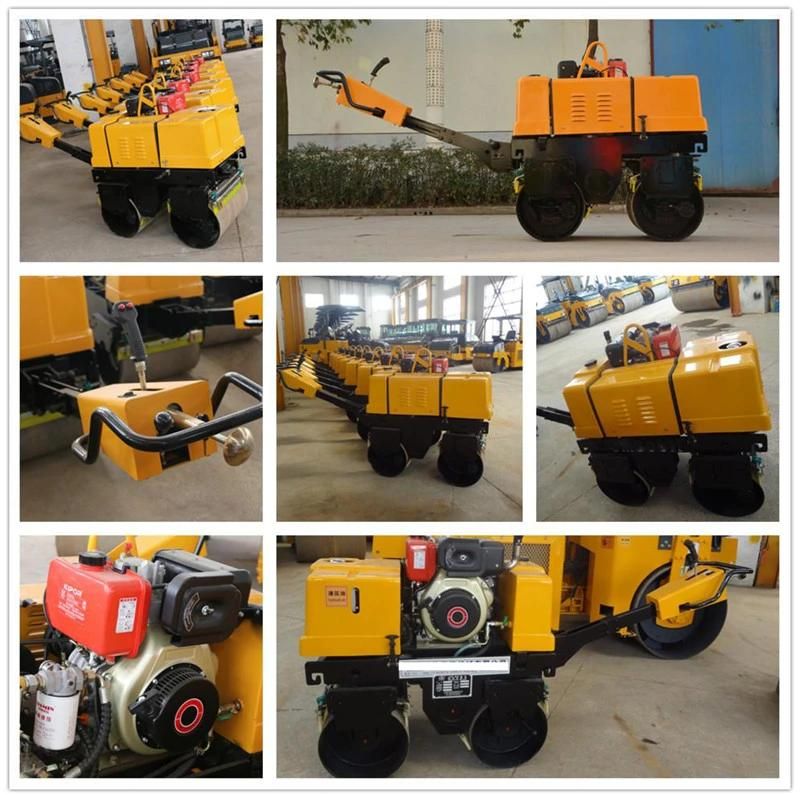

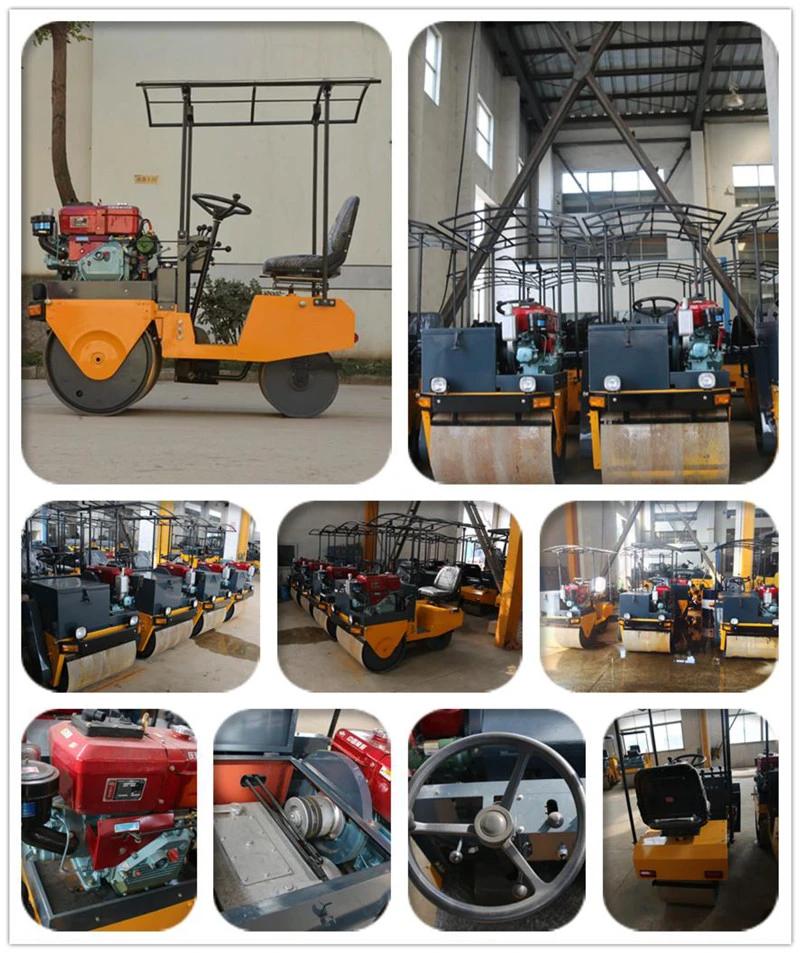

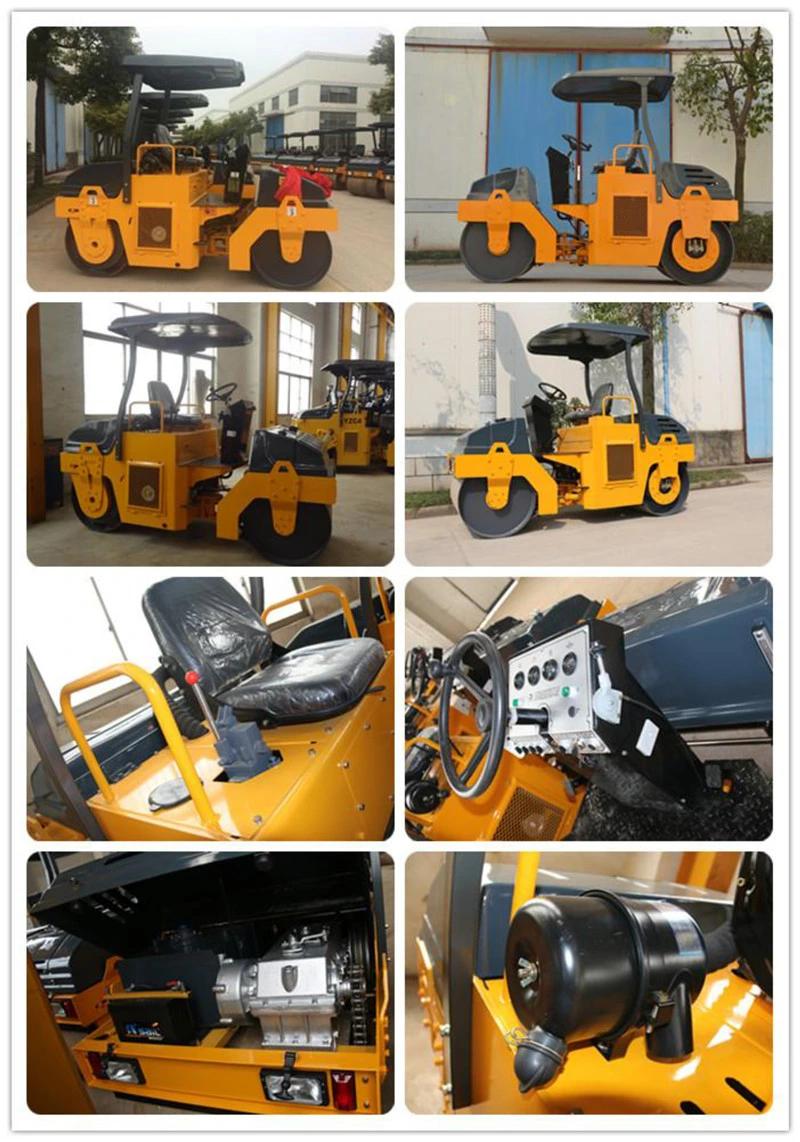

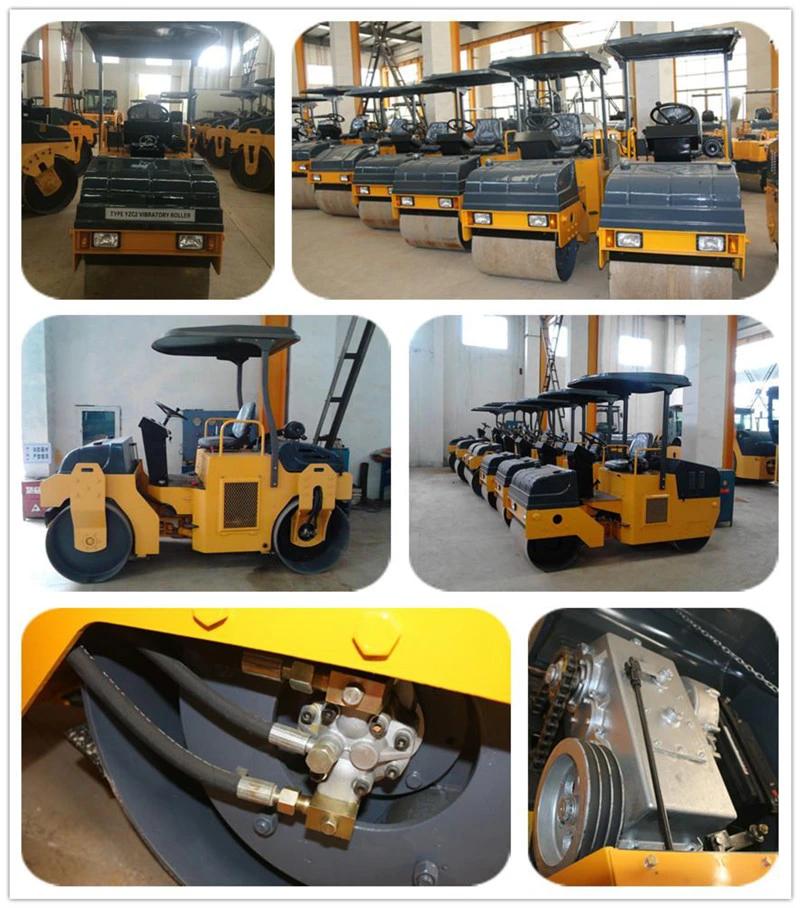

Products picture
Production Workshop
Certificate
Business Partners
FAQ
Q1. How to ship the roller?
A: By container, bulk ship, RORO.
Q2. Do you have different roller?
A: Yes,we supply different model rollers and exported to many countries.
Q3. What is your payment term?
A: We usually accept T/T or L/C depends on the quantity.
T/T, deposit in advance, and balance paid before delivery from factory.
Q4. Which type roller do you supply?
A: We supply all kinds of roller such as single and double roller etc,.
Q5. What is your terms of delivery?
A: FOB, CIF.
Q6. How about your delivery time?
A: Generally, it will take 35 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: What can you guarantee to your business partner?
A: Best price with good quality. We guarantee quality and after sale service to satisfy our business partners.
