• Model NO.：SWD320Y
• Condition：New
• Color：Yellow
• Track Width：560mm
• Blade Type：Straight
• Blade Height：1590mm
• Max. Tractive Force：218kn
• Warranty：One Year
• Rear Ripper：as Optional
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：20 PCS,Month

Basic Info.

Model NO. SWD320Y Condition New Color Yellow Track Width 560mm Blade Type Straight Blade Height 1590mm Max. Tractive Force 218kn Warranty One Year Rear Ripper as Optional Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 20 PCS/Month

Product Description

Main Features of SINOWAY SWD320Y Bulldozer

Optimal design in overall appearance and structure strength.
Powerful Cummins engine meeting Euro II off-road emission standard adopted for high power rise, big output torque, fuel saving and excellent reliability.
Hydraulically controlled drive, automatically speed regulating and non-stop gear shifting.
3-element, single stage, single phase torque converter for higher efficiency and bigger capacity.
The hexagonal cab offers excellent visibility, the powerful ventilation and unparalleled dust-free.
The final drive uses triangle Spline and tip relief, crowned gear drive for enhanced balance and the stability during power transmission, and increased life.
Blade is more durable and capacious.   Alarming & monitoring system is efficient and reliable.
Centralized pressure checking easy for malfunction diagnosis.   Ergonomics design in controls to reduce operator's fatigue.
Use automatic dust discharge type air precleaner for more adaptable in working in dust surroundings.

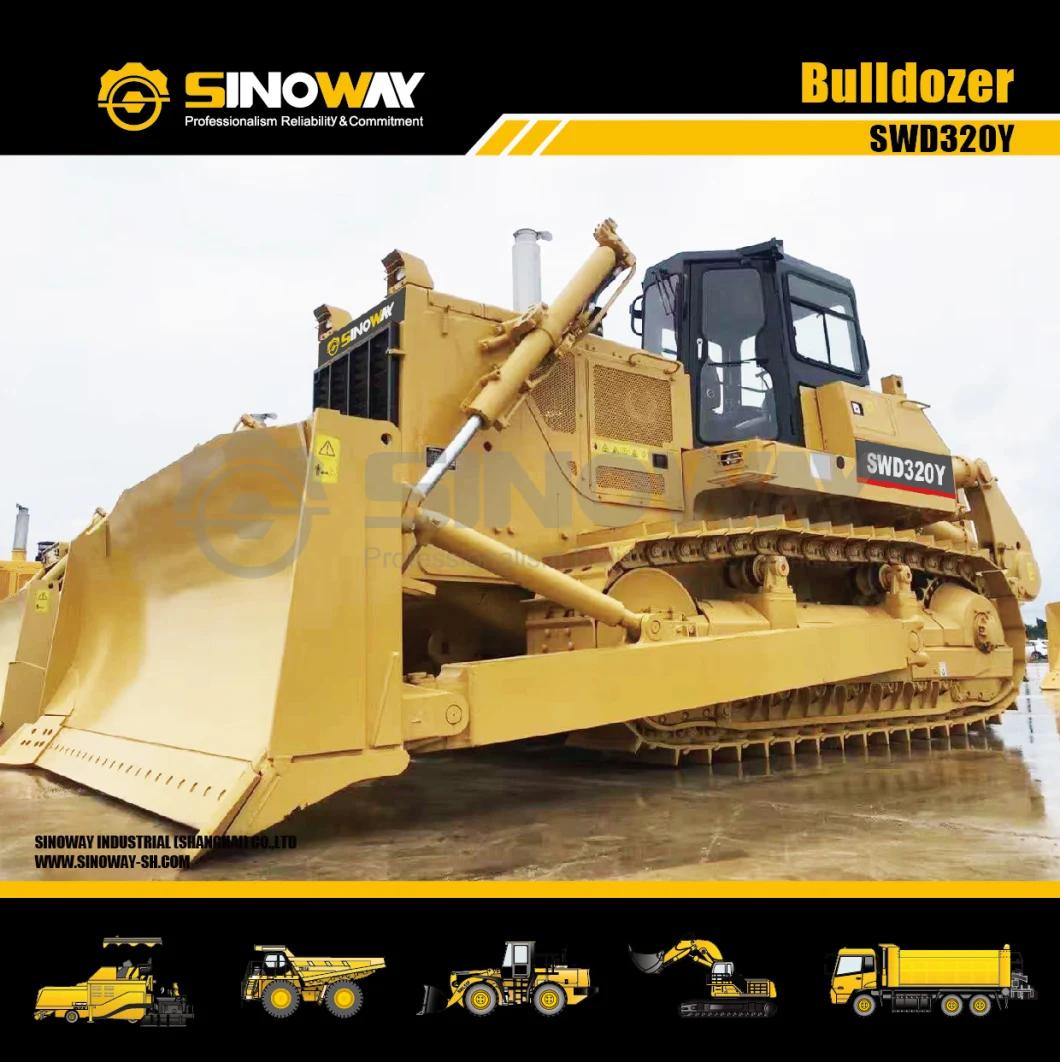

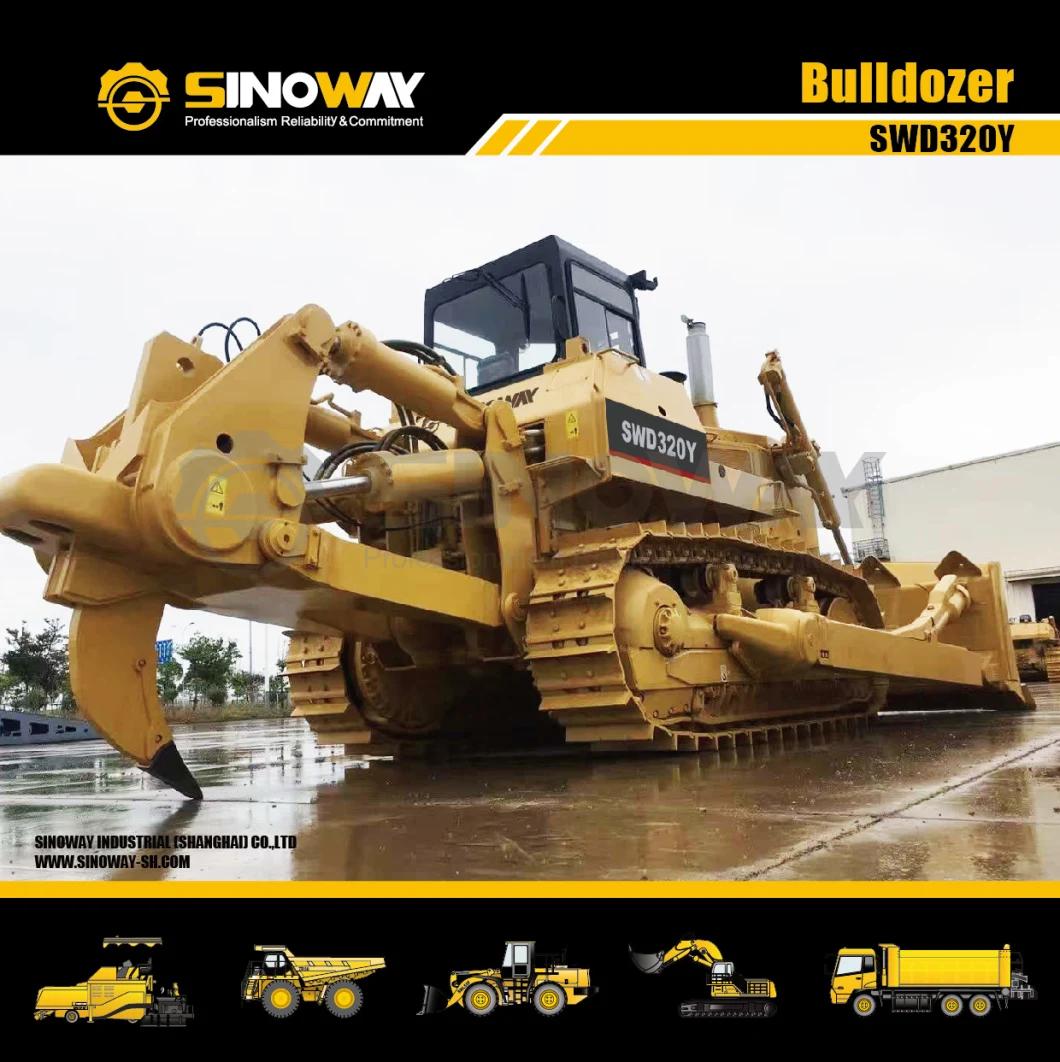

Machine Show

Specifications

Engine
Model	Cummins NT855
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	2000rpm
Implement Hydraulic System
Hydraulic flow rate	335L/min
Hydraulic pressure	13.7MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	7
Number of carrier rollers (each side)	(5 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	228.6mm
Track width	560mm
Number of track shoes (each side)	41
Track length on ground	3150mm
Ground clearance	500mm
Main Technical Specification
Operating weight(without ripper)	35900Kg
Ground pressure(without ripper)	0.094MPa
Grade ability	58%

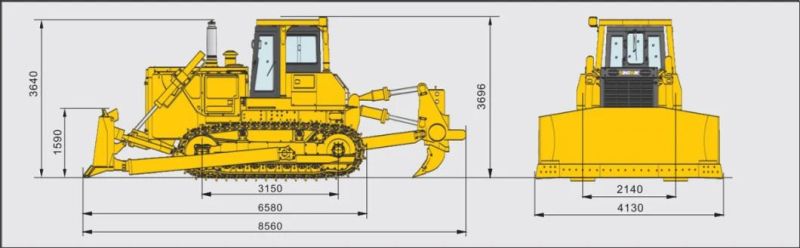

Overall dimensions (L×W×H,without ripper)	6880×4130×3640mm
Max. tractive force	281KN
Working Equipment
Blade type	Straight
Width	4130mm
Height	1590mm
Max. digging depth	560mm
Max. lift above ground	1560mm
Tilting angle	14°
Blade capacity	10m3
Transmission System
Gear box	Planetary gear,hydraulic actuated, forced lubrication
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.6/4.4
Forward/Reverse II	6.6/7.8
Forward/Reverse III	11.5/13.5
Service Capacities
Fuel tank	600L
Water tank	121L
Implement oil tank	164L
Steering clutch	Wet, multiple disc, spring loaded, hydraulically released
Steering brake	Wet, band brake, operated with hydraulic booster
