Engineering & Construction Machinery

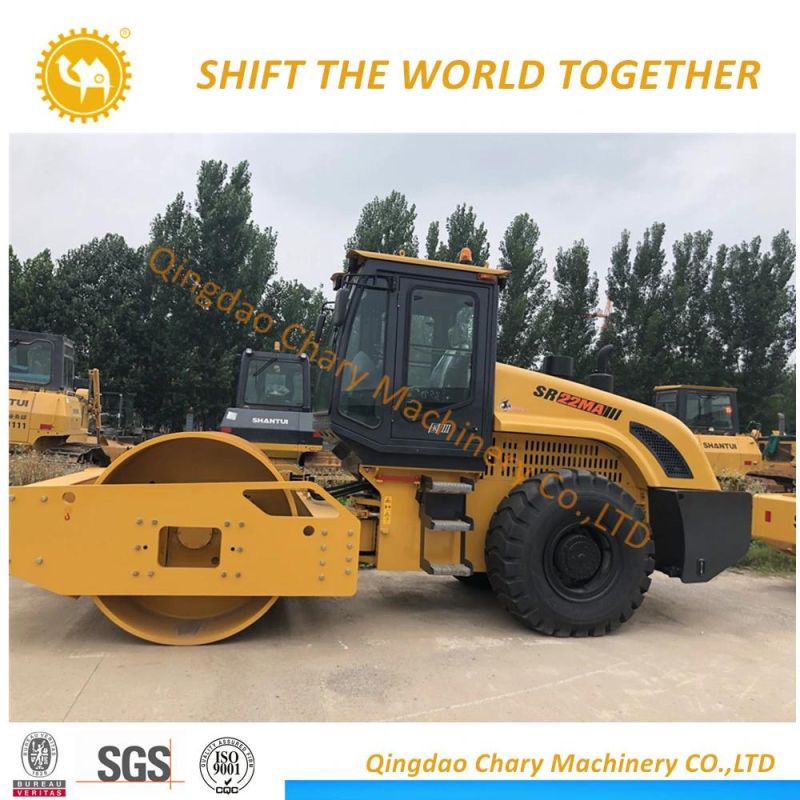

2018 New Product! 22ton Road Roller Capacity Double Drum Road Roller Sr22

Qingdao Chary Machinery Co., Ltd.
  • Type:Road Roller
  • Working Method:Wheeled
  • Axle:Triaxial Three-Wheel
  • Grinding Wheel Type:Tire Grind
  • Compaction Depth:35cm
  • Engine Type:Diesel Engine

Base Info

  • Model NO.:SR22MA,SR22M,SR22MP
  • Travel Speed:0-20
  • Centrifugal Force:18KN
  • Certification:EPA, CS, CE, ISO 9001:2000
  • Condition:New
  • Use:Road Roller
  • Product Name:Road Compactor
  • Delivery Time:Shipped in 30 Days After Payment
  • Color:Customers′ Optional
  • Fuel Tank Capacity:130L
  • Max. Working Weight:26000kg
  • Min. Working Weight:20000kg
  • Tire Model:20.5-25-16pr
  • Maximum Climbing Capacity:30
  • Operating Weight:22800
  • Transport Package:Nude Packing, Container
  • Specification:6140× 2425× 3262
  • Trademark:SHANTUI
  • Origin:China
  • HS Code:8429209000
  • Production Capacity:500 Unit,Month

Description

Bump number / height (mm)154/95

Shantui manufacturer have research and development six kinds of road roller.such as Mechanical single drum roller including

SR14MA/P,SR18MP,SR18MP-2,SR20MP
,SR20MA/P,SR22MP,SR22MA/P,SR22MC/P,SR26M-3,
Vertical vibration single drum roller including SR20MV,SR22MV.Double drum roller including SR03MD,SR035MD,SR03D,SR04D-5,SR13D,SR13D-3,SR14D-3.

Full hydraulic vibration cluding SR10/P,SR12/P-5,SR16/P,SR18,SR19P,SR20/P-3,SR20/P-5,SR22P,SR26/P-5,
rubber roller including SR16MT,SR26YT,SR26T,SR26T-3,SR30T,SR30T-3.
The following is the use of our road rollerSR14M,SR14MP apply in the basic engineering's compaction,especially high density compaction of non-clay material, clay,half-clay material.
SR18MP,SR18MP-2 is the right equipment for the large foundation engineering .
apply in high density compaction of non-clay material, clay,half-clay material.
SR20MPSR20MA/P,SR20MP SR22MP,SR22MA/P,SR22MC/P , SR26M-3
is the right equipment for the large foundation engineering .apply in the compaction of non-clay soil ,gravel,sand -gravel mixture and concrete.

2018 New Product! 22ton Road Roller Capacity Double Drum Road Roller Sr22


2018 New Product !22ton Road Roller Capacity Double Drum Road Roller SR22  SR22MA/SR22M/SR22MP extra-heavy-load mechanical vibratory road roller integrates the advantages of domestic high-tonnage road rollers, featuring high equipment configuration, reasonable system matching, and extensive application scope. It utilizes own weight and the centrifugal force to compact various kinds of construction and road building materials, featuring reliable performances and best cost performance.


 Shangchai SC8D series turbocharged diesel engine is jointly developed with Austrian AVL, featuring prominent performances, high reliability, and good fuel economy, and is one mainstream installed engine in China's construction machinery industry.

 Shantui's patented new vibratory drum features more excellent structure and stability performances. The super-high lubricating oil capacity guarantees the good lubrication and cooling for the vibratory parts and prolong their service lives.

 The vibratory pumps and vibratory motors adopt international renowned brand products to guarantee the reliability and compacting performance of the vibration system.

 It's equipped with the single gearshift joystick, the imported longitudinally adjustable seat, the left and right foldable armrests, and the retractable seat belt.

 The cab is equipped with air conditioning system to provide a comfortable working environment and the rubber damper design isolates the operator from the vibration source to remarkably relieve the working strength.

 Two independent brake systems (service brake and parking brake) feature stable braking, high safety and reliability, simple structure, and easy maintenances.

 Standard double-amplitude function expands the application scope of the equipment.

 The high span between high and low centrifugal forces helps the establishment of compacting schemes for different density specifications.


MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU

2018 New Product! 22ton Road Roller Capacity Double Drum Road Roller Sr22

 WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


2018 New Product! 22ton Road Roller Capacity Double Drum Road Roller Sr22
OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

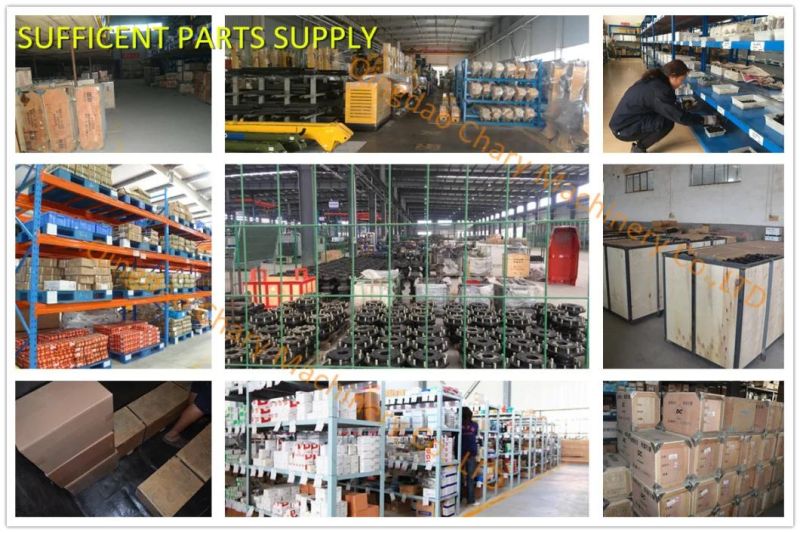

(6) Spare Parts Supply:
