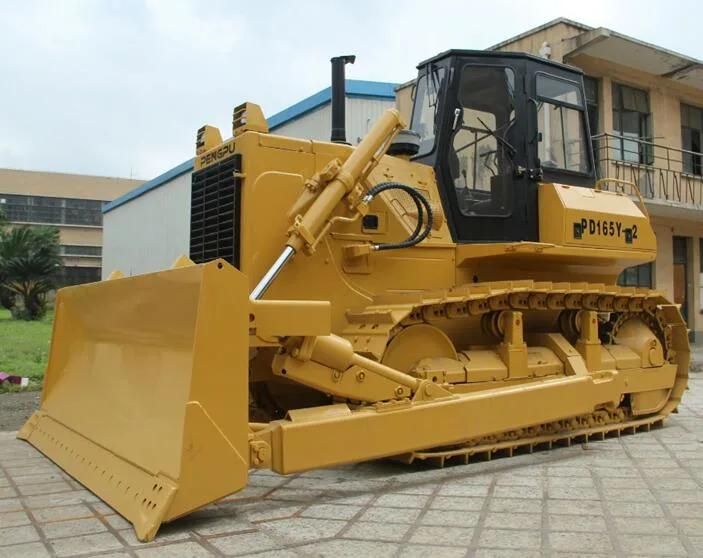

• Model NO.：Pd165y-2
• Condition：New
• Color：Yellow
• Operating Weight (Kg)：16700kg
• Dozing Capacity (M3)：Staight Tilt Blade 4.5; Angle Blade 4.5; U Bla
• Engine Model：Sc11CB184G2b1
• Rated Power (Kw/Rpm)：135
• Number of Carriers (Each Side)：2
• Number of Track Rollers (Each Side)：6
• Number of Track Shoes (Each Side)：37
• Width of Track Shoe (mm)：510
• Track Gauge (mm)：1880
• Specification：5850*3416*6294mm
• HS Code：8429521200
• Production Capacity：1000,PCS

PD165Y-2 BULLDOZER SPECIFICATIONDESCRIPTIONUNITSPECIFICATONModel/PD165Y-2EngineModel/SHANGHAI SC11CB184G2B1Type/Straight vertical, four-stroke, water cooling,
direct injection type. Turbocharger.Number of cylinder-bore*strokemm6-121*152DisplacementL14Fly wheel/rated speedkW/r/min135/1850Min. fuel consumption g/kw.h208g/kw.hStart methodType/Electric starting motor.Starting motorV/kW24/7.5Voltage/power  Battery/24V(12V*2)-195AhLubrication systemLubrication type/Forced lubrication.Cooling type/Water coolingElectricity generatorV/A24/35Air filter type/Dry type, precleaned cyclone air cleaner.Transmission
systemHydraulic torque converter/3-element, single stage, single phaseTransmission/Hand operated, hydraulic shift, planetary gear,
multiple disc clutch, forced lubrication by gear pump.Bevel gear/Helical bevel gear, splash lubrication.Steering clutch/Wet, multiple disc, spring loaded,
hand-operated with booster and hydraulic released.Steering brake/Wet, band brake, operated with hydraulic booster.Final drive/Spur gear, double reduction, splash lubrication.Travel SpeedForward1stkm/h0-3.82ndkm/h0-6.63rdkm/h0-10.6Reverse1stkm/h0-4.92ndkm/h0-8.53rdkm/h0-13.6Under carriageSuspension system/Equalizer barTrack tension/Hydraulic-adjustedSprocket /SegmentedNumber of track rollersPics6 (4 single, 2 double) (each side)Number of carrier rollersPics2 (each side)TrackType/Sealed single grouserTrack pitchmm203.2Number of track shoespics37Track gaugemm1880Length of track on groundmm2430Track widthmm510Ground pressureMPa0.064Ground clearancemm400Hydraulic system
of work equipmentPump type/gear pumpRated deliveryL/min243Control valve/Servo valveWorking pressureMPa14Oil tankL110BladeType/Straight TiltAngle bladeU bladeDimension mm3416*11504050*10503350*11150Blade Max. lift above the groundmm109011101090Blade Max. drop below the groundmm530530530Max. lift speedm/s0.35  Max. tiltmm400-400Pitch adjustment0555555Blade capacityM34.54.55.6Ground ability030Dimension No rippermm4996*3416*3440 (standard with straight blade)Operating weightNo ripperkg17tonThree shank ripperMax. dig below groundmm572Max. lift above groundmm492
