• Model NO.：XP301
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow (Other Color Can Be Optional)
• Engine：Cummins
• Operating Weight：30 000kg
• Final Drive：Gear
• Brake System：Hydraulic, Mechanical Pin Lock
• Weight on Front Drum：10000 Kg
• Static Linear Load：470n,Cm
• Min. External Turning Radius：6500mm
• Vibration Frequency (High/Low)：33,28 Hz
• Drum Diameter：1600mm
• Transport Package：Nude Packing
• Specification：8690*3500*3698
• Origin：China
• HS Code：8401200000
• Production Capacity：1000,Per

Basic Info.

Model NO. XP301 Certification ISO9001: 2000, CE Condition New Color Yellow (Other Color Can Be Optional) Engine Cummins Operating Weight 30 000kg Final Drive Gear Brake System Hydraulic, Mechanical Pin Lock Weight on Front Drum 10000 Kg Static Linear Load 470n/Cm Min. External Turning Radius 6500mm Vibration Frequency (High/Low) 33/28 Hz Drum Diameter 1600mm Transport Package Nude Packing Specification 8690*3500*3698 Origin China HS Code 8401200000 Production Capacity 1000/Per

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang



Product Description

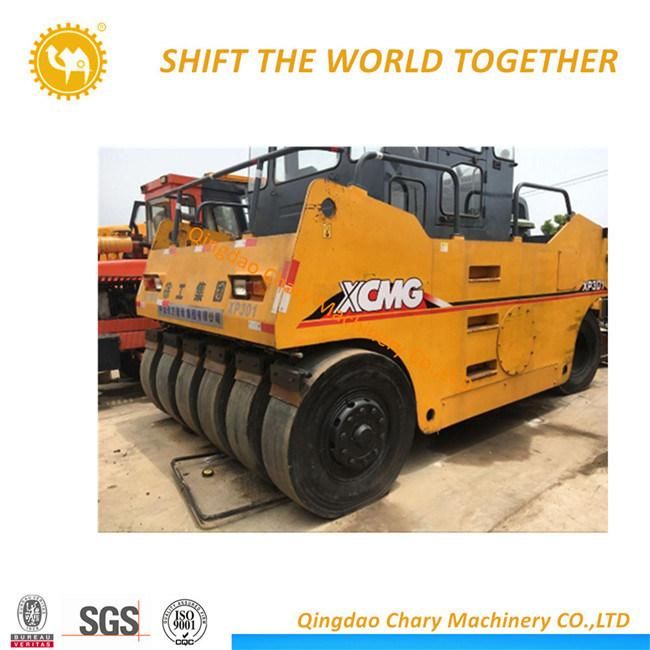

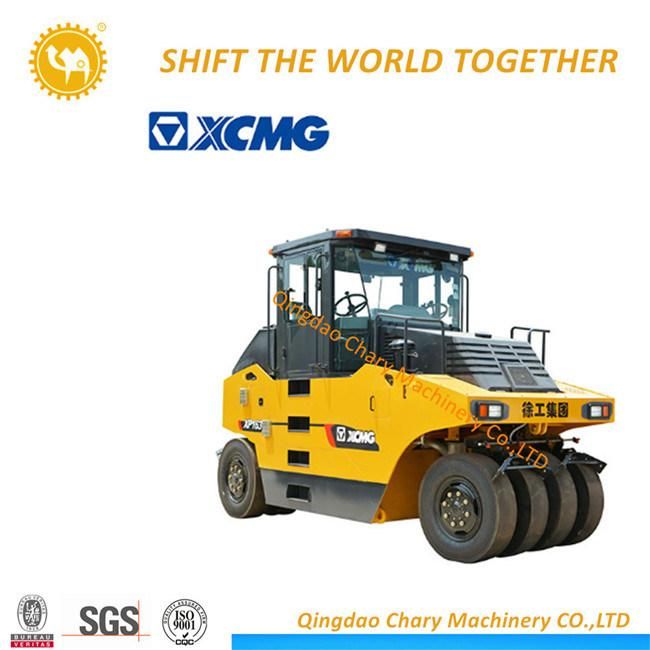

        hot sale  XP301 30ton Pneumatic Tyre Road Compactor




Driving comfort
Spacious and bright cab features wide view and comfort. Both-side operation can absolutely avoid rolling the curb and the compacting blind corners.
Simple operation
There are two steering wheels, two seats, and two independent control systems for operations. The speed change adopts electric control handle and two-speed gear shift design, which can respectively meet the requirements of compaction and site transfer, together with flexible electronic control operation and comfortable handfeel, greatly reduces the labor intensity of the drivers.
Excellent performance
Adopting the pneumatic tyre to compact the layer will not damage the compacted materials. The compact performance can be improved by adding or reducing the counterweight and changing the inflation pressure of the tyres. Because of the kneading effect produced by the tyre's elasticity, the material displacement will be produced in all directions, forming even dense surface without cracks, which can prolong the service life of the road.
Adopt the front wheels swing mechanism. When the machine works on rough road, the mechanism ensures the even ground pressure, which can make the materials be compacted evenly.
The optional international leading infrared tyre heating system realizes the no water sprinkling work of the compactor, and improves the density and service life of the road.
Unique structure
The transmission system adopts the hydraulic transmission with infinitely variable speeds. The start of the torque converter and the speed change are stable and without impact, reducing the shear stress to the road, and improving the compacting quality. The torque converter adopts hydrodynamic drive, which makes the compactor have adaptivity, ensures the diesel engine and the transmission system work under the rated working condition, and prolongs the service life of the compactor.
Safety and reliability
The brake system includes emergency brake and hand brake. The emergency brake adopts air over oil shoe brake system, ensuring the safety, durability and reliability of the machine. The hand brake adopts diaphragm spring brake, it supplements the foot brake and is restricted by the foot brake, featuring safety and reliability.
Leading function
The water sprinkling system has a series of perfect functions such as electric water spraying, power water sprinkling, external pumping, and internal water supplement. When there is no external water source, the automatic water supplement function can supply the counterweight water to the water tank, turning the backwater to flowing water, which avoids the backwater corroding the machine, and meets the requirements of different works.
The adjustable intermittent water sprinkling system meets the requirements of different working conditions, prolongs the service life of the water pump, and avoids stopping work due to the water circuit failures.
Energy conservation and environment protection
Low noise supercharged diesel engine features high performance, reliable quality and good economical performance.
Convenient maintenance
The engine cover is easy to open. Adopt the cover plate structure which can be lifted, which facilitates the inspection, adjustment, and maintenance of the battery, water pump system, and chains.


Model	Unit	XP301
Min. working weight	kg	14500
Max. working weight	kg	30000
Axle load,wheels	kg	2900
Static linear load	kg	12600
Theoretical gradeability	%	20
Min. turning external radius	mm	9000
Min. ground clearance	mm	290
Tyre overlap amount	mm	50
Front wheel swing range	mm	±45
Compaction width	mm	2750
Ground pressure	kPa	260~450
Wheel base	mm	3840
Travel speed	km/h	0~8
	km/h	0~16
Tyre specification		11.00-20
Tyre tread		Smooth
Tyre amount		Front 5 rear 6
Engine model		SC8D180F2B1
Rated speed	r/min	2000
Rated power	kw	132
Engine oil consumption	g/kW•h	232
Water tank capacity	L	2900
Hydraulic oil tank capacity	L	100
Fuel tank capacity	L	180

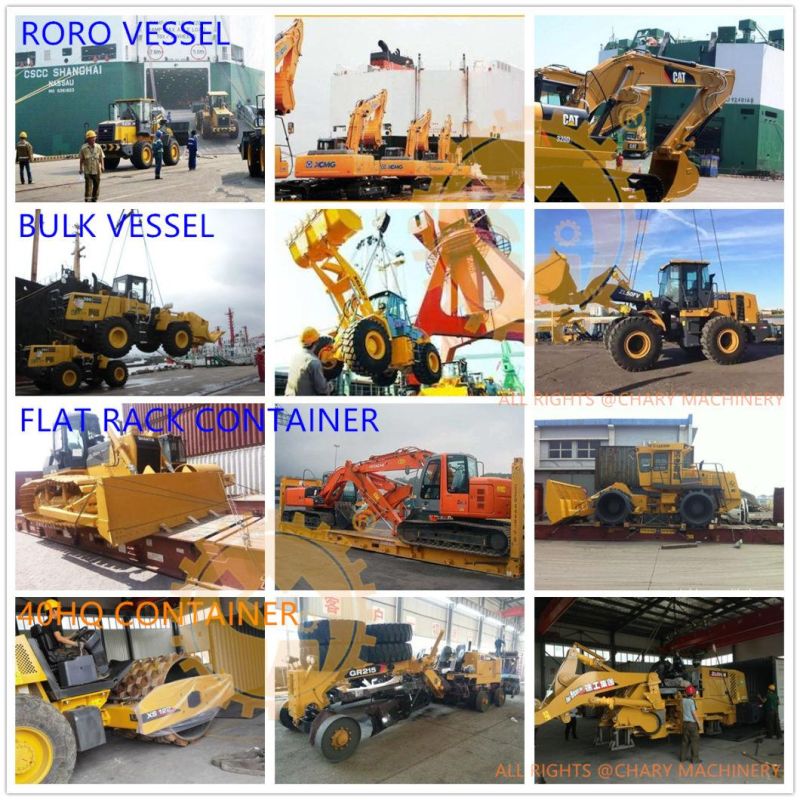

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU




WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

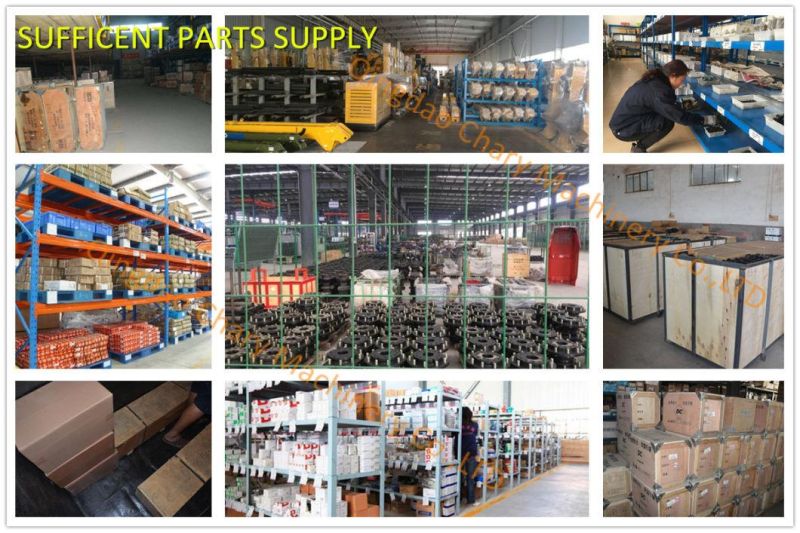

(6) Spare Parts Supply:
