TCI and Steel Tooth Tricone Bit for Water Well Drilling
YANTAI PANDA EQUIPMENT CO., LTD.- Type：Drill Tools
- Application：Water or Oil Well Drilling,
- Certification：CE, ISO9001: 2000, API
- Condition：New
- Diameter：3 3,4"~26"
- Bearing Type：Sealed and Non-Sealed Bearing
Base Info
- Model NO.：IAdc 537, 637, 617, 127, 437
- Material：Tungsten Carbide, High Manganese Steel
- Processing Type：Forging
- Pressure：High Pressure
- Transfer：Air,Sea,Express
- Color：Request
- Advantage：High Performance
- Product Name：Tricone Bit
- Inserts Design：Spherical; Ballistic; Parabolic
- Transport Package：Wooden Box or as Customers Inquire
- Specification：TCI or Steel Tooth
- Trademark：PANDA
- Origin：Shandong China
- HS Code：82071990
- Production Capacity：2000 Pieces , Week
Description
IADCWOB RPM Application (KN/mm) (r/min) 111/114/115 0.3-0.75 200-80 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk 116/117 0.35-0.8 150-80 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk 121 0.3-0.85 200-80 soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone 124/125 180-60 131 0.3-0.95 180-80 soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds 136/137 0.35-1.0 120-60 211/241 0.3-0.95 180-80 medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds. 216/217 0.4-1.0 100-60 246/247 0.4-1.0 80-50 medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite 321 0.4-1.0 150-70 medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble 324 0.4-1.0 120-50 437/447/435 0.35-0.9 240-70 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone 517/527/515 0.35-1.0 220-60 soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone 537/547/535 0.45-1.0 220-50 soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds 617/615 0.45-1.1 200-50 medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite 637/635 0.5-1.1 180-40 hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble Note: Above limits of WOB and RRPM should not be used simultaneously
Diameter:SizeSteel tooth bit TCI bit in mm Weight(kgs) Weight(kgs) 3 7/8 98.4 5 6 4 5/8 117.5 6 6.5 5 7/8 149.2 17 18 6 152.4 18 19.5 6 1/2 165.1 19 22 7 7/8 200 29 29.5 8 1/2 215.9 35 38 8 3/4 222.2 36 40 9 1/2 241.3 57 59 9 7/8 250.8 58 60 10 5/8 269.9 66 74 12 1/4 311.1 85 111 13 5/8 346.1 118 120 14 3/4 374.6 140 160 17 1/2 444.5 230 255 20 508 428 443 22 558.8 520 560 26 660.4 720 810

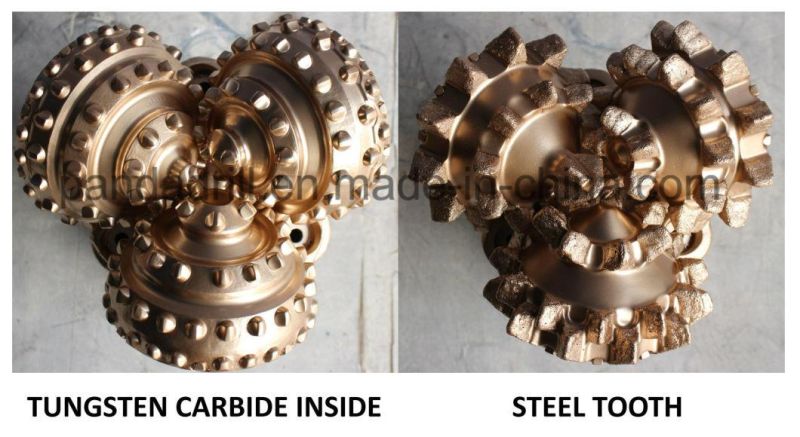

Different Type:

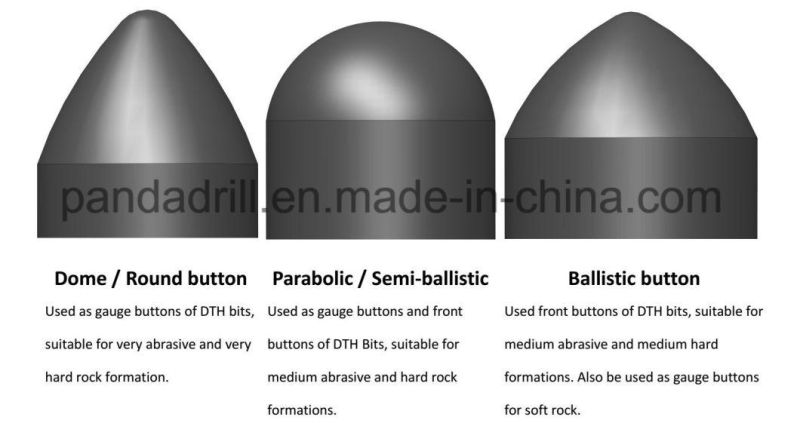

Different Button Shapes:
FAQ:
Diameter:Size
Different Type:
Different Button Shapes:
FAQ:
Q1: Can I have a sample for testing?
A:Samples are still to be paid but discounted price can be provided.
Q2: Do you have the inspection procedures?
A:100% strict inspection and testing for every order before packing.
Q3: How can i get the after sale services?
A:Free replacement will provide once the problems casued by our product quality.
Q4: Can I have a visit to your factory before the order?
A: Sure, welcome, here is our address: Yantai, Shandong.
