Front End Loading Backhoe Loader Machine
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Certification：TUV, ISO, CE
- Condition：New
- Rated Load：1t
- Transmission：Hydraulic - Mechanical
Base Info
- Model NO.：HW15-26
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Loader Capacity：0.8m3
- Loader Breakout Force：36kn
- Loader Max. Dumping Height：3300mm
- Loader Max. Dumping Distance：800mm
- Backhoe Capacity：0.15m3
- Backhoe Max. Digging Depth：2700mm
- Engine Mode：490
- Rated Power：55kw
- Min. Turning Radius：3500mm
- Travel Speed：26km,H
- Backhoe Breakout Force：28kn
- Brake：Air Brake
- Min Ground Clearance：220mm
- Loader Bucket Width：1900mm
- Digging Bucket Width：600mm
- Transport Package：Nude Package
- Specification：5800*1850*2750mm
- Trademark：HW
- Origin：China
- HS Code：8429590000
- Production Capacity：300sets,Month
Description
Model
HW15-26
Loader Capacity
0.8m³
Loader Breakout Force
36KN
Rated Load
1800KG
Loader Max. Dumping Height
3300mm
Loader Max. Dumping Distance
800mm
Backhoe Capacity
0.15m³
Backhoe Max. Digging Depth
2700mm
Engine Mode
490
Rated Power
55KW
Min. Turning Radius
3500mm
Travel Speed
0-26Km/h
Backhoe Breakout Force
28KN
Brake
Air brake
backhoe loader pictures for Front end loading backhoe loader machine
Backhoe loader equipped with auxiliary hydraulic oil pipe, it can be upgraded into a multi-functional machine.

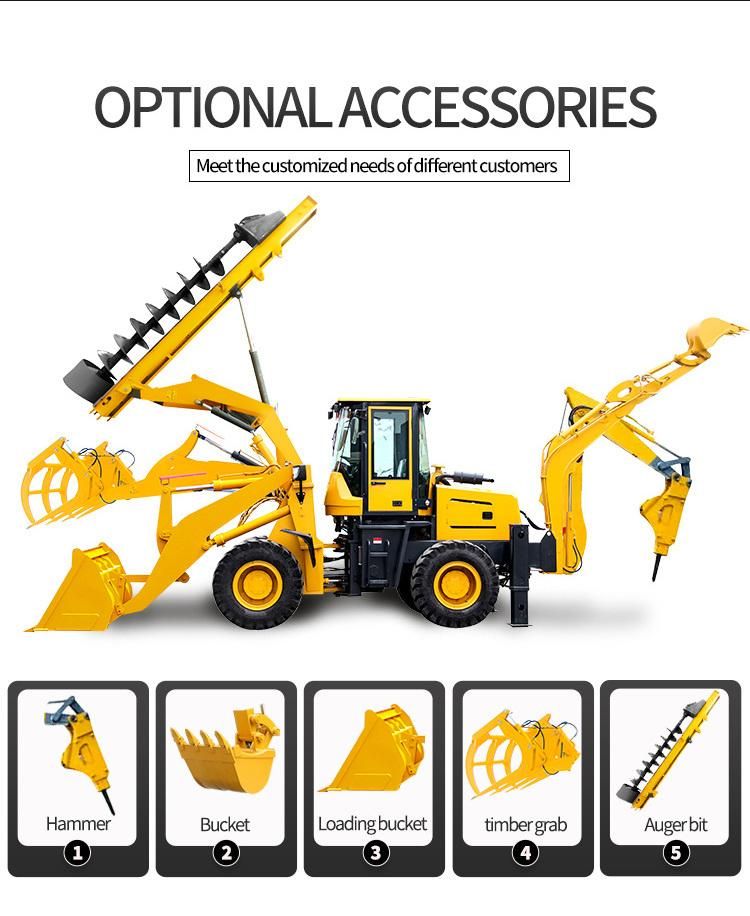

Busy assistive devices - the backhoe loader can replace different accessories as below
Configure brand enging Backhoe Loader Detailed Images

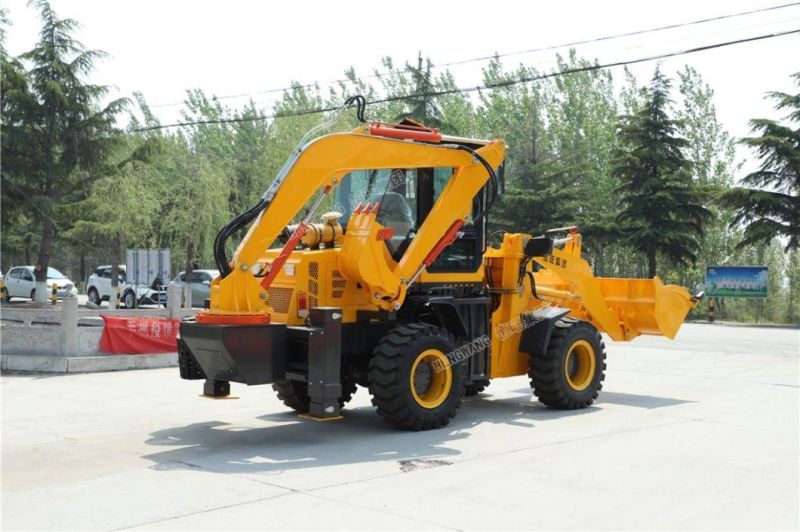

Backhoe Loader Detailed Images
backhoe loader construction site
