• Model NO.：loader
• Condition：New
• Color：Yellow
• Rated Load：2 Tons
• Rated Bucket Capacity：1.00cbm~1.2cbm
• Operating Weight：5700kg
• Dimension：5800*2000*2750 mm
• Engine Model：Yto-Lr4b3 and Cumminsb3.3
• Track Base：1500 mm
• Wheel Base：2350 M
• Min.Swerve Diameter：4600 mm
• Min.Ground Clearance：350 mm
• Dump Height Fully Raised：2800-3100mm
• Transport Package：Nude Packing
• Specification：CE, ISO9001
• Trademark：Caise
• Origin：Henan, China
• HS Code：84295100
• Production Capacity：500 Set,Sets , Month

Basic Info.

Model NO. loader Condition New Color Yellow Rated Load 2 Tons Rated Bucket Capacity 1.00cbm~1.2cbm Operating Weight 5700kg Dimension 5800*2000*2750 mm Engine Model Yto-Lr4b3 and Cumminsb3.3 Track Base 1500 mm Wheel Base 2350 M Min.Swerve Diameter 4600 mm Min.Ground Clearance 350 mm Dump Height Fully Raised 2800-3100mm Transport Package Nude Packing Specification CE, ISO9001 Trademark Caise Origin Henan, China HS Code 84295100 Production Capacity 500 Set/Sets / Month

Product Description

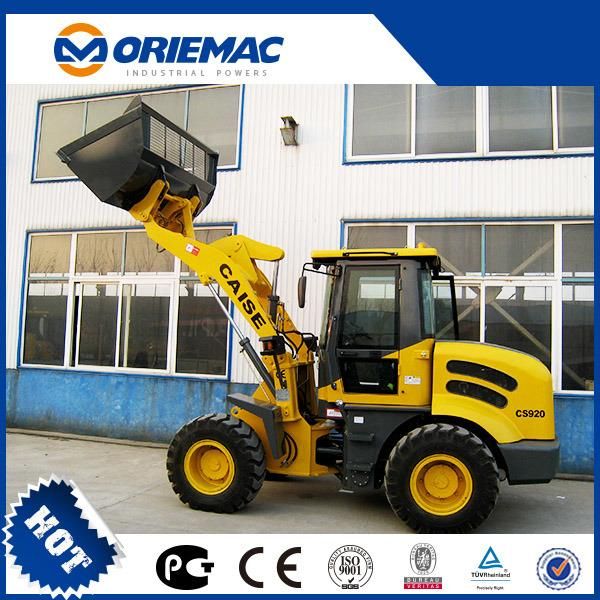

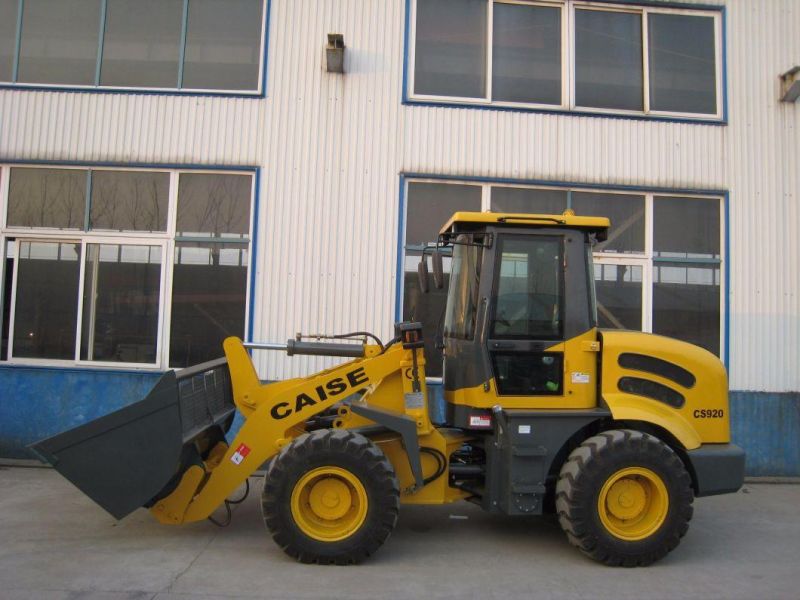

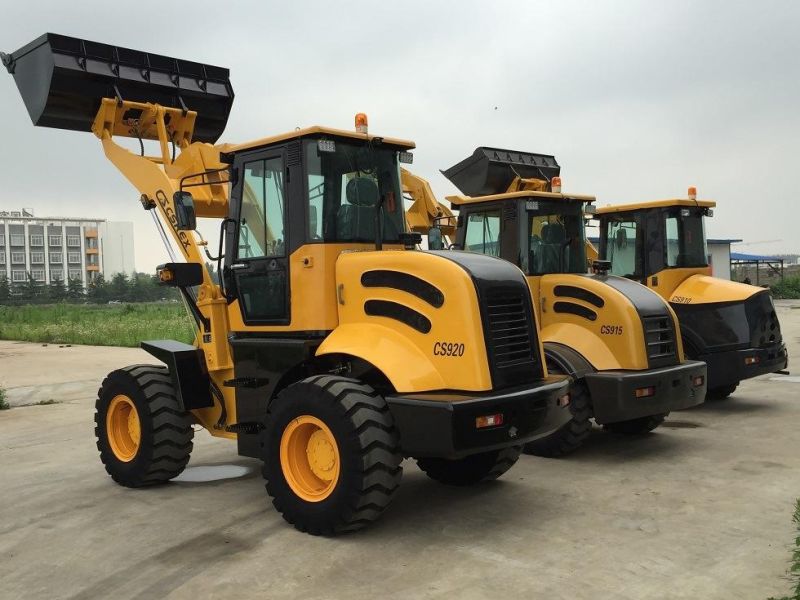

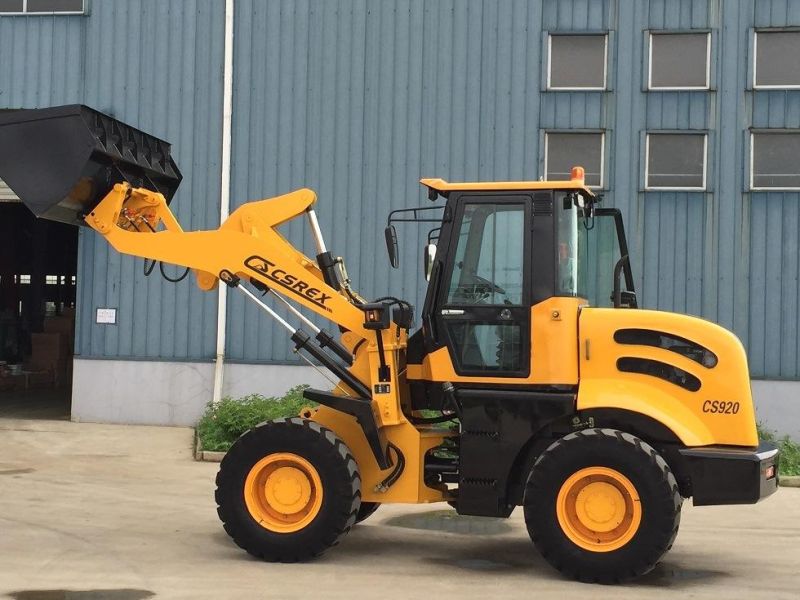

CAISE Earth Moving 2 Ton Mini Tractor Payloader CS920 Front End Wheel Loader

2 ton small wheel loader CS920
Reliable performance and high costperformance
CE, EPA approved

mode	CS920
Rated loading weight	2000kg
Overall weight	5800 kg
The minimal circle diameter	310mm
Rated bucket capacity	1.00 m3_1.2 m3
Track base	1500mm
Wheel base	2350mm
Min.swerve diameter	4600mm
Min.ground clearance	350mm
Dump height fully raised	2800-3100mm
Reach fully raised	1050mm
Lifting time	≤5.0s
Driving mode	Four-wheel full hydraulic drive
Transmission gear box form	2 gear hydraulic variable speed changes
Operating weight	5700kg
Dimension(L×W×H)	5800×2000×2750mm

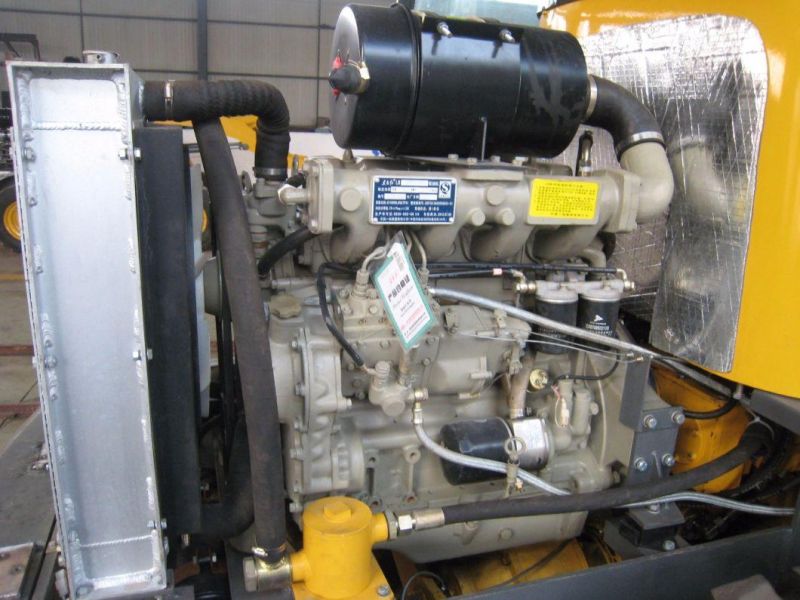

Engine model	YTO-LR4B3   and  CumminsB3.3
Engine Power	60KW
Rated speeds	2400rpm
Max.tilt anglle	30%
Max.bucket breakout force,lift cylinder	60KN
Maximum Speed	28m/h
Type Specification	16/70-20
Front wheel pressure	220kpa
Rear wheel pressure	180kpa
