New 21ton Hydraulic Crawler Excavator Loong Sheen Diggers Lx210-8 in Stock
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year Warranty
- Type：Crawler Excavator
- Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
- Bucket：Grab Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：LX210-8
- Drive Type：Internal Combustion Drive
- Bucket Capacity：1.2m3
- Size：Large-Scale
- Certification：CE, ISO9001: 2000
- Condition：New
- Operating Weight(Kg)：21500
- Bucket Capacity(M3)：1.2
- Engine Model：Cummins Qsb7.0
- Rated Power(Kw/R/Min)：125,2000
- Fuel Tank Capacity(L)：350
- Travel Speed(Km/H)：5.2,3.5
- Swing Speed(R/Min)：11.7
- Max. Climbing Degree(%)：70
- Bucket Digging Force(Kn) ISO：145
- Transport Package：as Your Needs
- Specification：21500Ton
- Trademark：Loong Sheen
- Origin：Shandong, China
- HS Code：84295212
- Production Capacity：1000 Units,Year
Description
Operating Range
N-TURNTABLE WIDTH(mm)
2700
O-MAX.DIGGING HEIGHT(mm)
9275
P-MAX.DUMPING HEIGHT(mm)
6560
Q-MAX.DIGGING DEPTH(mm)
6515
R-MAX.VERTICAL WALL DIGGING DEPTH(mm)
5915
S-MAX.DIGGING DEPTH FOR 2.5M HORIZONTAL PLANE (mm)
6380
T-MAX.DIGGING REACH
9865
U-MAX.DIGGING REACH AT GROUND LEVEL(mm)
9680
V-MIN. SWING RADIUS(mm)
3630
W-MAX. HEIGHT AT MIN. SWING RADIUS(mm)
7670
X-DISTANCE BETWEENCE CENTER OF ROTATION AND TALL LENGTH(mm)
2720
Z-HEIGHT OF COUNTERWEIGHT(mm)
2120
A1-GROUND LENGTH (IN TRANSPORTION)(mm)
4840
Technical parameters
Technical parameters

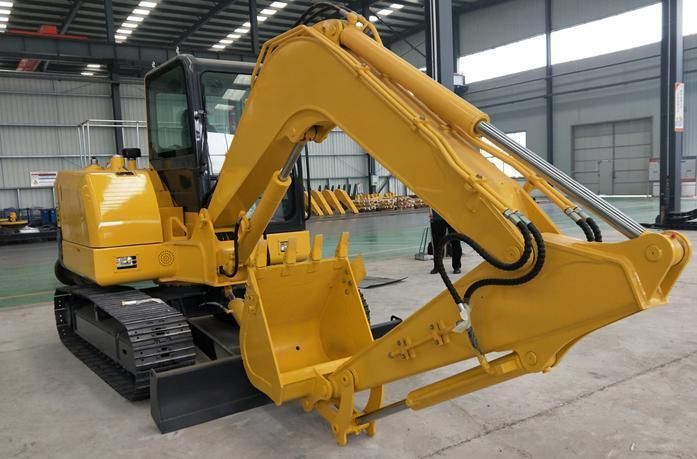

Pictures
