Trenchless Directional Drilling Machine (KDP-28)

Wuhan Kudat Industry & Trade Co., Ltd.
  • Type：Drill
  • Pressure Pile Driver Type：Hydraulic
  • Pile Hammer Type：Hydraulic Hammer
  • Power Source：Diesel
  • Motor Power：132kw
  • Noise：With Noise

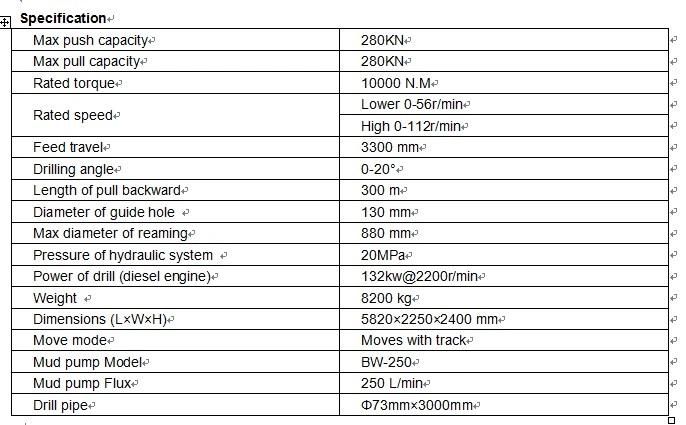

Base Info

  • Model NO.：KDP-28
  • Certification：ISO 9001:2000
  • Condition：New
  • Max Push Capacity：280kn
  • Max Pull Capacity：280kn
  • Rated Torque：10000nm
  • Feed Travel：3300 mm
  • Drilling Angle：0-20
  • Length of Pull Backward：300 M
  • Diameter of Guide Hole：130 mm
  • Max Diameter of Reaming：880 mm
  • Weight：8200 Kg
  • Dimensions (L×w×h)：5820*2250*2400 mm
  • Transport Package：Naked Packing
  • Specification：28T
  • Trademark：KUDAT
  • Origin：China
  • HS Code：8430412900
  • Production Capacity：1000PCS,Year

Description

Basic Info.

Model NO. KDP-28 Certification ISO 9001:2000 Condition New Max Push Capacity 280kn Max Pull Capacity 280kn Rated Torque 10000nm Feed Travel 3300 mm Drilling Angle 0-20 Length of Pull Backward 300 M Diameter of Guide Hole 130 mm Max Diameter of Reaming 880 mm Weight 8200 Kg Dimensions (L×w×h) 5820*2250*2400 mm Transport Package Naked Packing Specification 28T Trademark KUDAT Origin China HS Code 8430412900 Production Capacity 1000PCS/Year

Product Description

KDP-28 Hydraulic Directional Drilling Rig

The whole car-mounted integrated equipment of rubber track, adopt the domestic famous-brand CUMMINS' 6BT turbo-charged diesel engine, motive force is powerful. Motor - chain feed mechanism, Driller can use two hydraulic clamps for the making up and breaking away of drilling rods easily. Easy operation of all hydraulic drives and central control from the Control Panel. Pairs of hydraulic power wrench device and function console. High drilling rate , reliable functions, high efficiency to work. Mud mixing system with 2m3 tank has high efficiency to mix.

Trenchless Directional Drilling Machine (KDP-28)

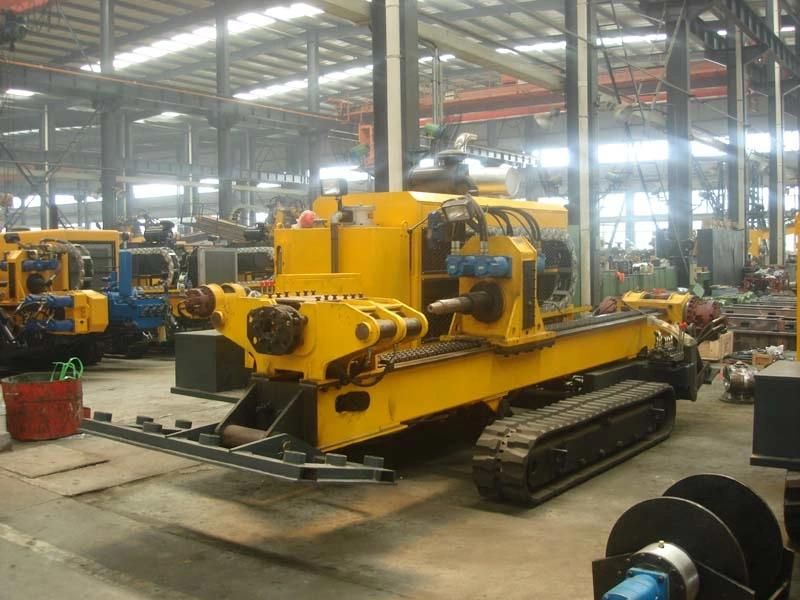

product sample Trenchless Directional Drilling Machine (KDP-28)
our company Trenchless Directional Drilling Machine (KDP-28)
Trenchless Directional Drilling Machine (KDP-28)
our engineer tecnology service
