Shantui Mini Compactor Srd04 4000kg Small Double Drum Road Roller
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Light Grind
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
Base Info
- Model NO.：SRD04
- Certification：ISO 9001:2008
- Condition：New
- Model：Shantui Srd04
- Operating Weight：3200kg
- Engine：Yanmar 488
- Transport Package：Container
- Specification：4200kg
- Trademark：SHANTUI
- Origin：Shandong, China
- HS Code：8429401100
- Production Capacity：10000 Units, Year
Description
Basic Info.
Model NO. SRD04 Certification ISO 9001:2008 Condition New Model Shantui Srd04 Operating Weight 3200kg Engine Yanmar 488 Transport Package Container Specification 4200kg Trademark SHANTUI Origin Shandong, China HS Code 8429401100 Production Capacity 10000 Units/ YearProduct Description

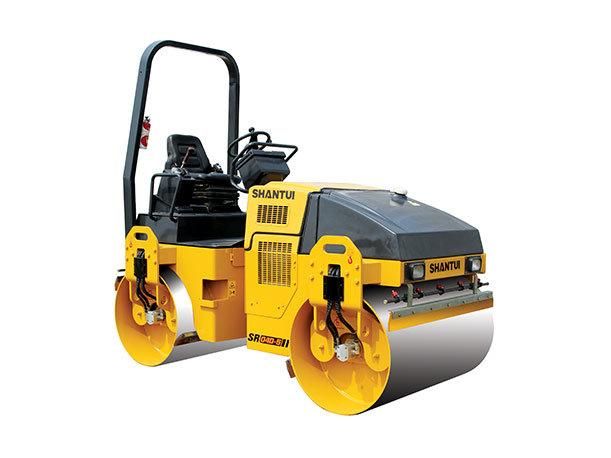

SHANTUI Mini Compactor SRD04 4000kg Small Double Drum Road RollerDOUBLE-DRUM ROLLER: SRD04
OVERALL WEIGHT: 4200kg
ENGINE POWER: 35kW/3000rpm China-III
COMPACTING WIDTH: 1400mm
Rich configuration
*Electrically controlled water-spray, highefficient and water- saving
*Emulsified liquid tank
*Wear-resistant scraper can be lift and fixed during transportation
Manipulation
*Forward/reverse and vibrating all controlled by the integrated control lever.
*The engine start is with neutral safty structure realised by the handle
*Integrated micro computer control panel
Hydraulic system
*It's applied with double drive traveling system composed of imported plunger pumps and plunger motors and is equipped with automatic parking brake mechanism.
*The vibrating drum is driven by imported hydraulic parts, with free changeover between single and double vibrating modes.
*The hydraulic articulated steering system features flexible motions and effectively adapts to diversified working conditions.
Engine
*Equipped with imported Yanmar engine, stronger power with less fuel consumption
| Parameter name | SRD04 |
| Performance parameters | |
| Operating weight (Kg) | 4200 |
| Exciting force (KN) | 40 |
| Vibration frequency (Hz) | 60 |
| Nominal amplitude (mm) | 0.5 |
| Ground pressure (KPa) | - |
| Gradeability (%) | 40 |
| Engine | |
| Engine model | Yanmar 488 |
| Rated power/rated speed (kW/rpm) | 35kw/3000rpm |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 3000*1670*2200 |
| Driving performance | |
| Forward speed (km/h) | 0-12 |
| Reversing speed (km/h) | 0-12 |
| Chassis System | |
| Wheelbase (mm) | 1950 |
| Tank capacity | |
| Fuel tank (L) | 70 |
| Working device | |
| Compacting width(mm) | 1400 |
