• Weight：380kg
• Jaw Opening：190mm
• Transport Package：Wooden Box
• Trademark：RAY ATTACHMENTS
• Origin：Jiangsu, China
• HS Code：8474209000
• Production Capacity：100 Set,Sets Per Month

Basic Info.

Weight 380kg Jaw Opening 190mm Transport Package Wooden Box Trademark RAY ATTACHMENTS Origin Jiangsu, China HS Code 8474209000 Production Capacity 100 Set/Sets Per Month

Product Description

Rotation scrap shear can be used in all industrial demolition sites for the cutting and recovery of ferrous materials such as iron sections, pipes, tanks, railway carriages etc. that later may be easily recycled.

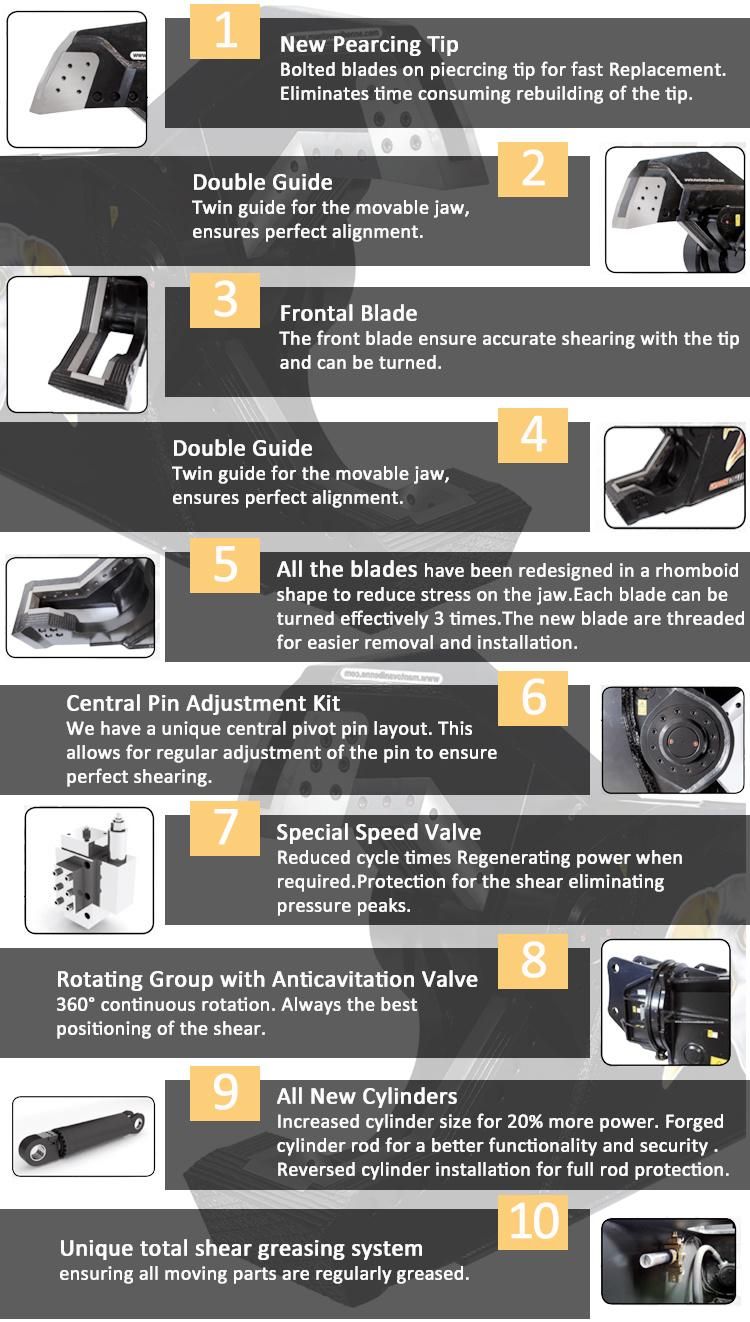

1.New Pearcing Tip:Bolted blades on piecrcing tip for fast Replacement.Eliminates time consuming rebuilding of the tip.
2.Double Guide:Twin guide for the movable jaw,ensures perfect alignment.
3.Frontal Blade:The front blade ensure accurate shearing with the tip and can be turned.
4.New Jaw design:New fixed jaw design increase cutting capacity,material is eased to fall away easily.
5.All New Blades:All the blades have been redesigned in a rhomboid shape to reduce stress on the jaw.Each blade can be turned effectively 3 times.The new blade are threaded for easier removal and installation.
6.Central Pin Adjustment Kit:Mantovanibenne have a unique central pivot pin layout. This allows for regular adjustment of the pin to ensure perfect shearing. While fully protected the pin can be removed for maintenance of all related parts.
7.Special Speed Valve:Reduced cycle times Regenerating power when required.Protection for the shear eliminating pressure peaks.
8.Rotating Group with Anticavitation Valve:360° continuous rotation. Always the best positioning of the shear.
9.All New Cylinders:Increased cylinder size for 20% more power. Forged cylinder rod for a better functionality and security.Reversed cylinder installation for full rod protection.
10.A unique total shear greasing system, ensuring all moving parts are regularly greased.


Model	Unit	SH25	SH130R	SH180R	SH310R	SH410R	SH550R
Suitable Carrier	T	4-5	13-17	18-27	28-37	38-50	50-60
Jaw opening (A)	mm	195	375	445	565	670	760
Jaw depth(B)	mm	200	395	525	630	720	780
Length(C)	mm	1350	2100	2700	3300	3700	3950
Tool Weight	Kg	380	1220	2100	3300	4700	5750
Speed valve	N	Y	Y	Y	Y	Y	Y
Interchangeable spare parts	Y	Y	Y	Y	Y	Y	Y

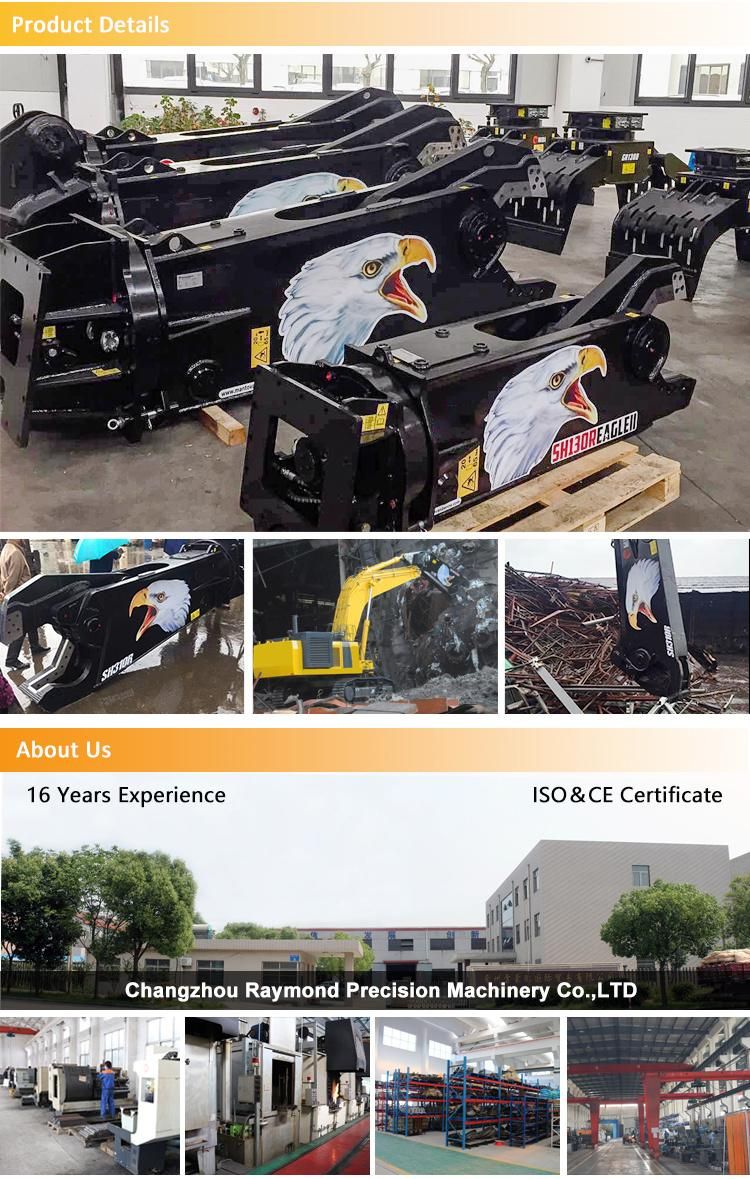

RAYMOND is a factory with authorized Imp. & Exp. right which including two companies,Raymond Precision Machinery Co.,Ltd and Raymond International Trading Co.,Ltd, located in Changzhou City,Jiangsu Province,China,Factory building areas cover around 20,000 Square Meters.Raymond Precision Machinery Co.,Ltd was established in 2002,committed to focus on the development, production and sales of construction machinery and their spare parts.

Q: Are you a manufacturer?
A: Yes,our factory was established in 2002 and we have our own trading company.

Q: Are you sure your product will fit my excavator?
A: Yes, we are professional about this, you can also tell me your excavator model, and we will check it for you.

Q: Can you provide customers' design?
A: Sure, we can provide OEM and ODM service.

Q: What's the MOQ and payment terms?
A: MOQ is 1set. Payment via T/T,L/C, Western Union accepted, other terms can be negotiated.

Q: How about delivery time?
A: 5-25 work days after the payment, depend on your quantity.

Q: How about the package?
A: Our Eagle shear packed by polywood case.

Q: Which country have you exported?
A: Vietnam, Saudi Arabia, America, Thailand, New Zealand, Canada, Australia, Peru, Chile, Brazil,Mexico, Iran, South Africa, etc.
