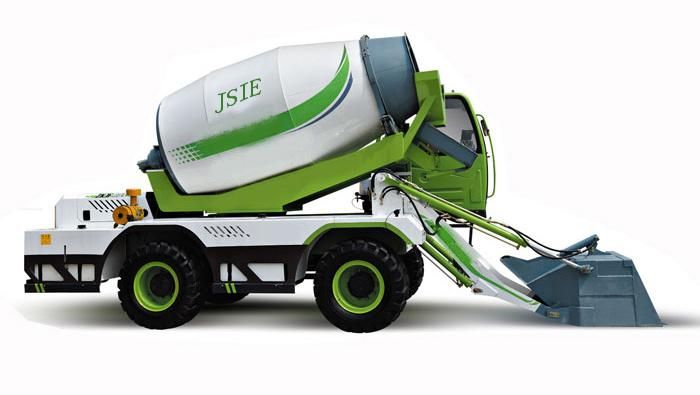

Self-Loading Mixer Truck 4m3
Xiamen Justsun Intelligent Equipment Co., Ltd.- After-sales Service:6 Months Warranty of Spare Parts
- Warranty:6 Months Warranty of Spare Parts
- Type:Concrete Mixing Truck
- Shotcrete Type:Wet
- Machining Process:Hydraulic
- Structure:Rotor Type
Base Info
- Model NO.:CMT3500RH
- Productivity:16m3,H
- Feeding Height:4350mm
- Vibrating Amplitude:Without
- Certification:ISO9001: 2000
- Condition:New
- Color:White
- Transport Package:Nude Packing
- Specification:7600x2850x4180mm
- Trademark:JSIE
- Origin:China
- HS Code:8705400000
- Production Capacity:1000units,Year
Description
Stiring and unloading:
The double cone roller has a double helical agitating screw and a convex bottom
Dum geometry capacity .6000L Drum rotation speed: .__ .17 pm Concrete yield. 4.0m' 1 can
The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90",but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard
The double cone roller has a double helical agitating screw and a convex bottom
Dum geometry capacity .6000L Drum rotation speed: .__ .17 pm Concrete yield. 4.0m' 1 can
The reaction frame mounted on the heavy duty' spherical saddle can be hydraulically rotated by 290 and automatically locked by a hydraulic brake Drum rotation is achieved via a gear pump and a plunger hydraulic motor in an open circuit with a manual electrical valve in the operator's room and at the rear of the mixer. The drum rises to a horizontal position through two double acting jacks. The unloading chute is tilted by manually adjustable handle and can be rotated by 90",but cannot be synchronized with the churning drum tilting operation, Removable chutes ensure unloading directly through the hopper, Two chute extensions are provided as standard
