CE EPA Truck Mounted Concrete Mixer with 4 Wheels
JINING HENGWANG CONSTRUCTION MACHINERY CO., LTD.- After-sales Service：Provide
- Warranty：One Year
- Type：Concrete Mixing Truck
- Shotcrete Type：Wet
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：4.5 cbm
- Productivity：30cbm,H
- Feeding Height：3000mm
- Vibrating Amplitude：0.8mm
- Certification：ISO9001: 2000, CE
- Condition：New
- Color：White
- Actual Mixing Capacity：4.5cbm
- Rotary Drum Capacity：4.6cbm
- Slump of Concrete：70-260mm
- Tank Capacity：540L
- Reducer Ratio：01:24
- Rated Power：103kw
- The Wheelbase：3000mm
- Max Running Speed：24km,H
- Min Steering Radius：5000mm
- Climbing Capacity：26
- Tire：16,70-20
- Driving Way：4*4
- Weight：9300kg
- Maximum Load Capacity：10240kg
- Whole Machinery Weight：19540kg
- Transport Package：Nude Package
- Specification：6650*3100*3450mm
- Trademark：HW
- Origin：China
- HS Code：8705400000
- Production Capacity：300sets,Month
Description
Model
HWJB450
Actual mixing capacity
4.5cbm
Engine model
Dongfanghong 6A3Z-22
Engine power
103Kw
Bucket capacity
0.6cbm
Drum capacity
6.0cbm
Total weight
10280Kg
Overall dimension
8400*3100*3350mm
Product Details
Mixer truck adapted air brake, more safety.

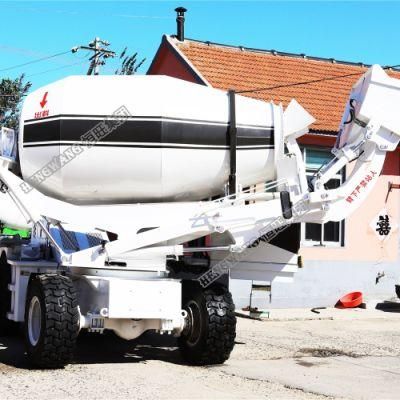

Four-wheel drive 4.5CBM self-loading concrete mixer truck.

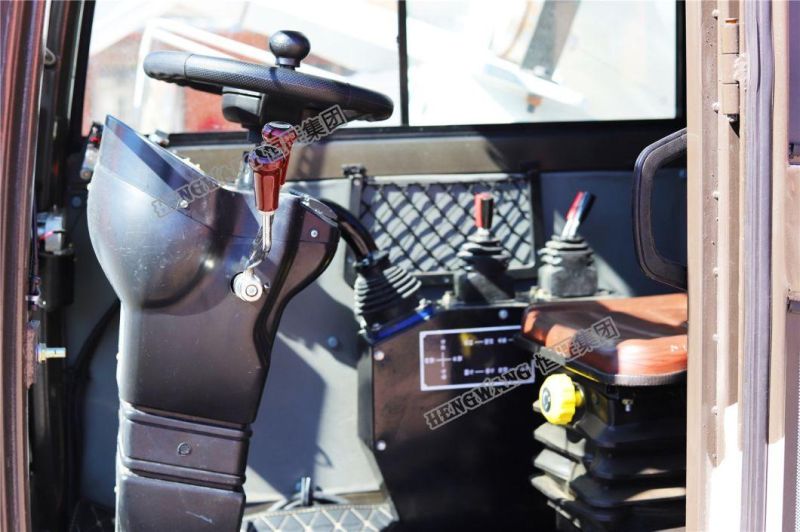

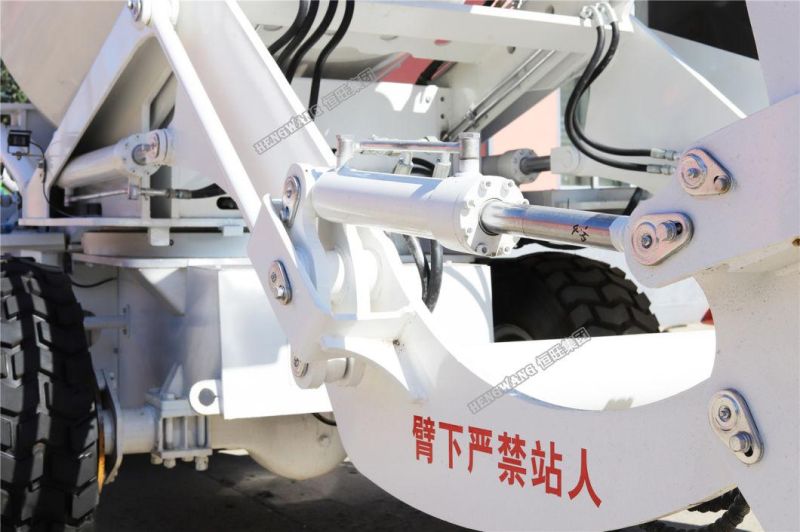

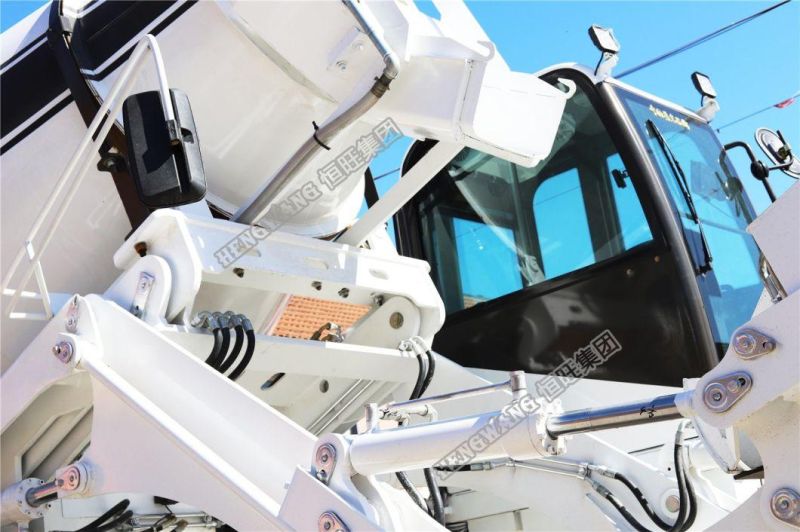

Automatic feeding concrete mixer truck Product details

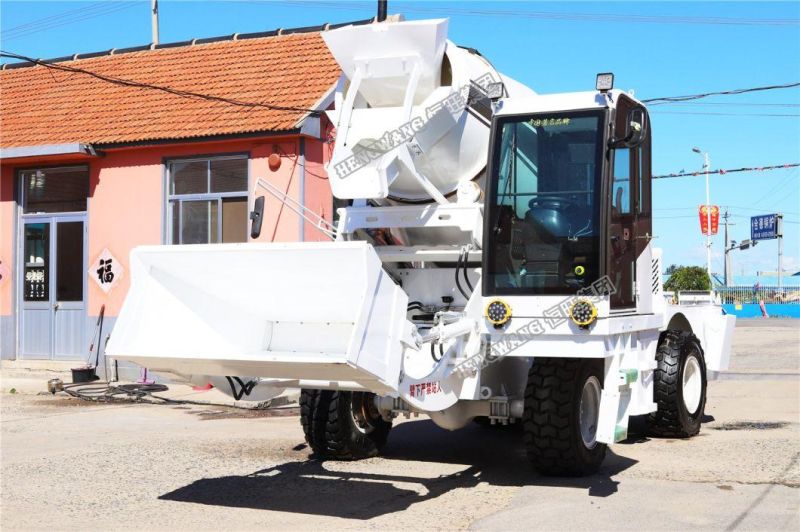

Self Loading concrete mixer truck 4.5cbm
Construction Site
One set of 3.5cbm concrete mixer truck can be loaded in 40HQ container
Company Profile
CertificationsHengwang concrete mixer trucks have CE Certification.
