• Model NO.：250*96*41
• Link：41 (Can Be Customized)
• Weight：90.61kg
• Delivery：30 Days
• Export Markets：Global
• Guarantee：12 Months Under Normal Use
• Color：Black
• Raw Material：Rubber and Steel
• Material：Natural Rubber
• Transport Package：Bare Packing or Wooden Pallets
• Specification：250*96*41
• Trademark：POOYERT , OEM
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Per Month

Basic Info.

Model NO. 250*96*41 Link 41 (Can Be Customized) Weight 90.61kg Delivery 30 Days Export Markets Global Guarantee 12 Months Under Normal Use Color Black Raw Material Rubber and Steel Material Natural Rubber Transport Package Bare Packing or Wooden Pallets Specification 250*96*41 Trademark POOYERT / OEM Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Per Month

Product Description

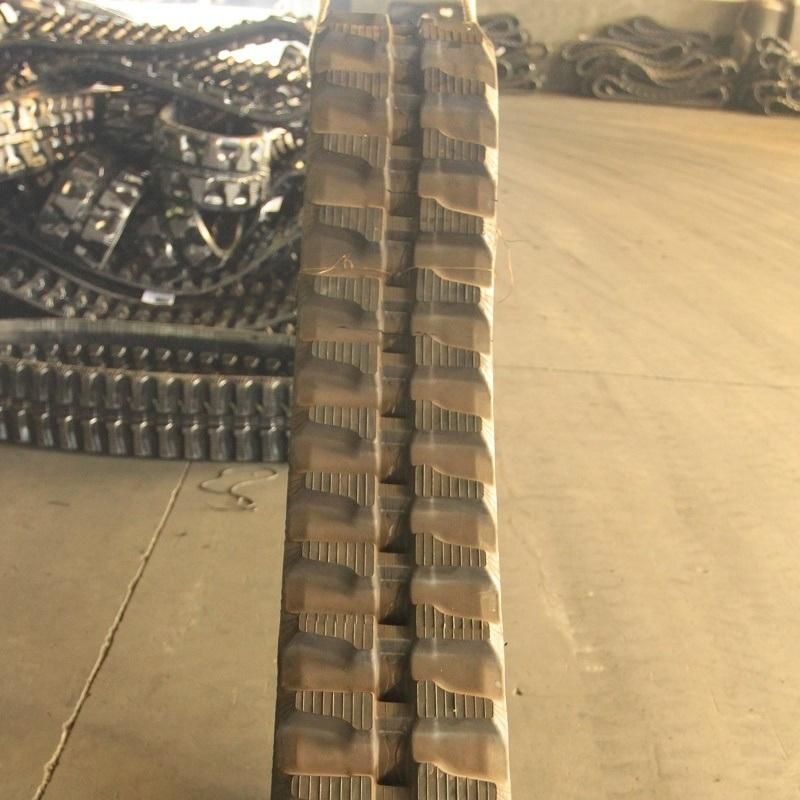

Puyi Rubber Tracks 250*96*41 for Ex20u/ U20 with weight 90KGProduct Information:

1.Name of commodity	Puyi Rubber Tracks 250*96*41 for Ex20u/ U20
2.Width	250mm
3.Pitch	96mm
4.Links	41
5.Total Length	3936mm
6.Weight	90.61kg
7.Material	Rubber & Steel
8.Steel cord type	Continuous inner steel cord with joint free
9.Warranty	Guarantee one year under normal use

  Application:

MODEL	Original Size	POOYERT Size1	Roller	POOYERT Size2	Roller
RX202	250x96x41	250x96x41	B1
U20	250x96x41	250x96x41	B1
AX20U	250x96x41	250x96x41	B1
K330	250x96x41	250x96x41	B1	230x96x41	B1
EX20U	250x96x41	250x96x41	B1
EX20U.1	250x96x41	250x96x41	B1

  (1) Specifications of rubber track :

1). Continuous rubber track

2). Conventional type or interchangeable type rubber track

3). Warranty: Guarantee one year under normal use

4). Conventional and interchangeable type

5). OEM orders of complete track systems are welcome

6). Comprehensive range of standard rubber crawler track systems are available

7). Undercarriages and bases are available for a wide range of machinery

8). Application: Mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine

9). Warranty: 12 months

10). Certification: ISO9001: 2000 (2) Installation of the Rubber Tracks
A. Too small strength: Easily causes jumping teeth, riding a tooth or steering failure of the guide wheels and supporting wheels and leads to track derailment or escapes.
B. Too large strength: Track wire will be deformed at the elongation by the excessive strain tensile, which will make the pitch changed, and track core iron and the drive wheels abnormally worn, also will make teeth touched and the track broken, the machine power loss larger, track wear exacerbated, belt crack easier as well as the track life shorter. After the track is strained, the maximum sag distance is 10-15mm, just as the pitch below.
(3) Attention
In order to extend the life of rubber tracks, please complete the following work:
A. Never turn urgently on the concrete floor, gravel road, or hard and sharp road, in order to avoid speeding up the wearing, twisting and chapping of the rubber track.
B. Try not to work in the rotten field, to avoid rubber track skid and wear.
C. When the stones or other objects come into the crawler and chassis, stop immediately, and clear gravels or obstacles.

(4) Warns
A. Do not travel on the road full of footstone, spinous-stone, scrap iron and other objects.
B. Do not drive in the rivers, streams and on the seacast or any rugged road.
C. Do not make the track unilaterial landing.
D. Forbid aggressive driving.
E. Avoid making a turn rapidly, please slow down and make a turn gradually.

The Parameter of the Rubber Track :
Ps: we can also customize for our customers

Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links	Width*Pitch length(mm)	Number of Links
130*72	28-53	300*52.5K	72-84	400*72.5KW	68-92
150*60	28-49	300*52.5KW	72-92	400*74	68-76
150*72	29-40	KB300*52.5	72-92	400*75.5K	74
170*60	30-40	KB300*52.5N	72-98	B400*86	52-55
180*60	30-40	JD300*52.5N	72-98	400*90	42-56
180*72	30-58	300*53K	80-84	Y400*142	36-37
180*72K	30-37	300*55	70-86	400*144	36-41
B180*72K	34-51	300*55.5K	76-82	Y400*144K	36-41
B180*72A	30-51	300*71K	72-55	420*100	50-58
H180*72	30-50	300*109N	25-42	450*71	76-88
190*60	30-40	K300*109	37-41	DW450*71	76-88
190*72	34-39	300*109WK	35-42	450*73.5	76-84
200*72	34-47	B300*84	78-52	450*76	80-84
200-*72K	37-47	T300*86K	48-52	450*81N	72-80
230*48	60-84	320*52.5	72-98	450*81W	72-78
230*48K	60-84	B320*52.5	68-98	KB450*81.5	72-80
230*72	42-56	320*54	70-84	K450*83.5	72-74
230*72K	42-56	B320*86	49-52	B450*84	53-56
230*96	30-48	320*90	52-56	B450*86	52-55
230*101	30-36	320*100	38-54	450*90	58-76
250*47K	84	320*100W	37-65	KU450*90	58-76
250*48.5K	80-88	Y320*106K	39-43	T450*100K	48-65
250*52.5K	72-78	350*52.5	70-92	K450*163	38
250*72	47-57	350*54.5K	80-86	485*92W	74
B250*72	34-60	B350*55K	77-98	500*90	76-82
B250*72B	42-58	350*56	80-86	500-92	72-84
E250*72	37-58	350*75.5K	74	500*92W	78-84
250*96	35-38	350*90	42-56	500*100	71
250*109	35-38	350*100	46-60	K500*146	35
260*55.5K	74-80	350*108	40-46	600*100	76-80
Y260*96	38-41	350*109	41-44	600*125	56-64
260*109	35-39	Y370*107K	39-41	700*100	80-98
280*72	45-64	400*72.5N	70-80	750*150	66
Y280*106K	35-42	400*72.5W	68-92	800*125	80
300*52.5N	72-98	Y400*72.5K	72-74
300*52.5W	72-92	KB400*72.5K	68-76

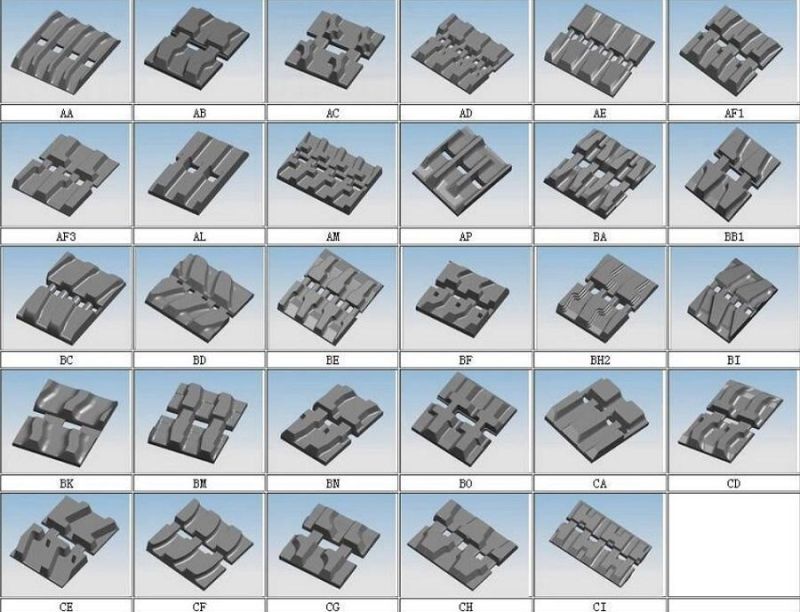

 Patterns of Lug
