• Model NO.：SWD165YL
• Condition：New
• Color：Yellow
• Brand：Sinoway
• Model：Swd165yl
• Blade Capacity：5.4 M3
• Blade Type：Landfill Blade
• Blade Width：3416mm
• Track Width：1000 mm
• Max. Tractive Force：143.3 Kn
• Warranty：One Year
• on-Site Service：Available
• After Warranty Service：Available
• Spare Parts Supply：Available
• Unique Selling Point：High Operating Efficiency
• Transport Package：Nude
• Specification：ISO
• Trademark：Sinoway
• Origin：China
• HS Code：84291110
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. SWD165YL Condition New Color Yellow Brand Sinoway Model Swd165yl Blade Capacity 5.4 M3 Blade Type Landfill Blade Blade Width 3416mm Track Width 1000 mm Max. Tractive Force 143.3 Kn Warranty One Year on-Site Service Available After Warranty Service Available Spare Parts Supply Available Unique Selling Point High Operating Efficiency Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84291110 Production Capacity 200 PCS/Month

Product Description

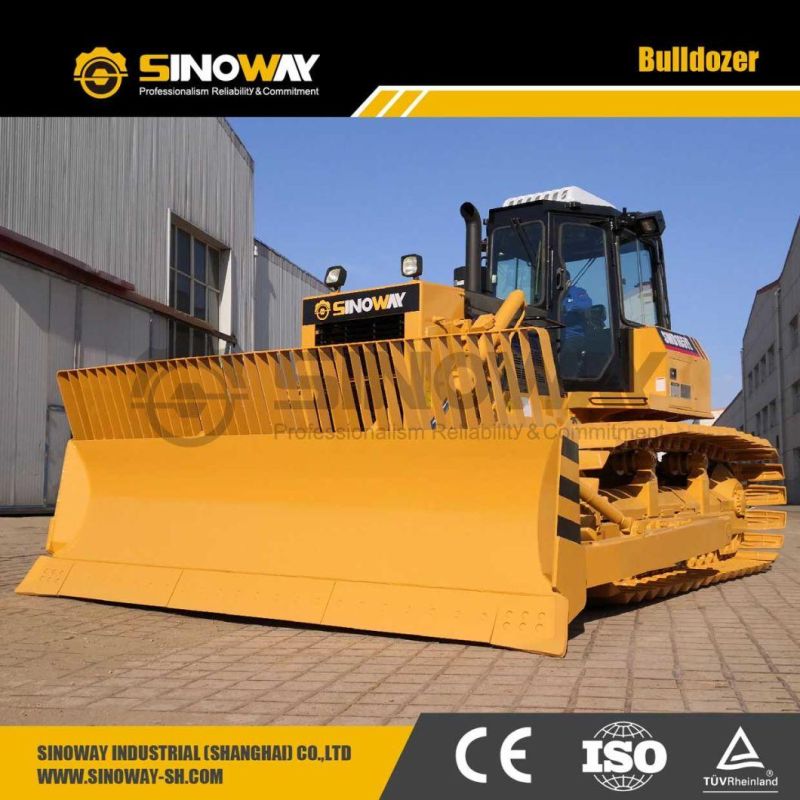

SINOWAY Bulldozer SWD165YL


Product Show


Machine Introduction




Main Technical Specifications

Engine
Model	WEICHAI
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	131KW
Rated speed	1900rpm
Implement Hydraulic System
Hydraulic flow rate	243L/min
Hydraulic pressure	14MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	1880mm
Track pitch	203mm
Track width	510mm
Number of track shoes (each side)	37
Track length on ground	2430mm
Ground clearance	400mm
Main Technical Specification
Operating weight(without ripper)	17800Kg
Ground pressure(without ripper)	0.072MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	5085×3416×3254mm
Max. tractive force	139.6 KN
Working Equipment
Blade type	Straight
Width	3416mm
Height	1150mm
Max. digging depth	540mm
Max. lift above ground	1095mm
Tilting angle	8.5°
Blade capacity	4.5m3
Transmission System
Gear box	Power shift, forced lubrication,planetary gear
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.3/4.0
Forward/Reverse II	6.3/8.0
Forward/Reverse III	11.4/13.9
Service Capacities
Fuel tank	315L
Water tank	62.8L
Steering clutch	Hydraulically actuated, multiple-disc oil clutches,spring pressed,hydraulic separated
Steering brake	Oil, two-direction floating band with mechanism foot pedals, hydraulic boosted.
