160HP Small Motor Grader Gr1603 with Back Ripper
Evangel Industrial (Shanghai) Co., Ltd.- Certification：ISO
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Hydraulic - Mechanical
- Walking Mode：Wheeled
- Type：Medium-sized Grader
Base Info
- Model NO.：GR1603
- Color：Yellow
- Gross Weight：13000kgs
- Power：125,2200kw,Rpm
- Tread：2020mm
- Min Turning Radius：6.6m
- Transport Package：Nude Packing
- Specification：8420*2380*3150mm
- Trademark：EVANGEL
- Origin：China
- Production Capacity：200units,Month
Description
Basic Info.

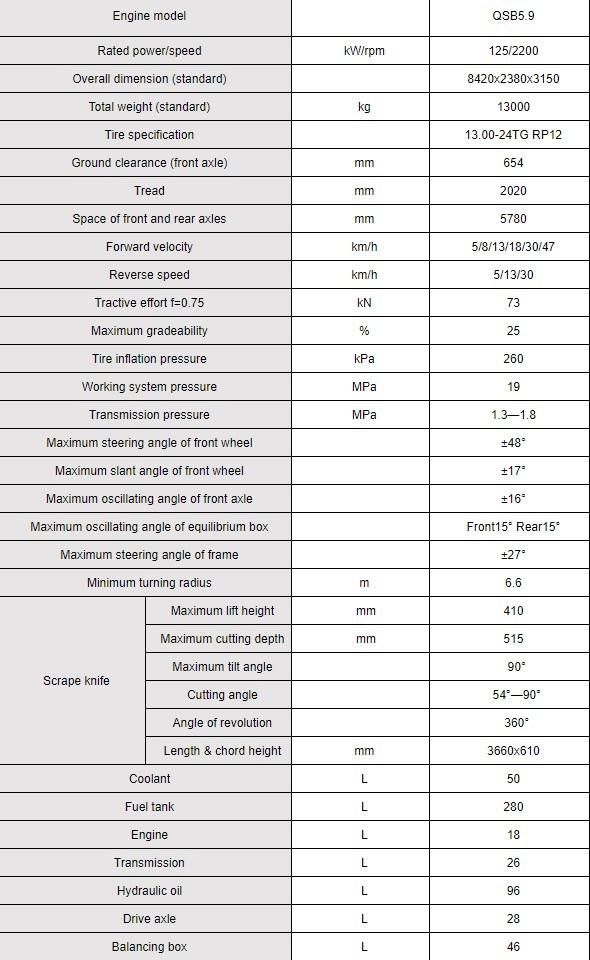

Model NO. GR1603 Color Yellow Gross Weight 13000kgs Power 125/2200kw/Rpm Tread 2020mm Min Turning Radius 6.6m Transport Package Nude Packing Specification 8420*2380*3150mm Trademark EVANGEL Origin China Production Capacity 200units/MonthProduct Description

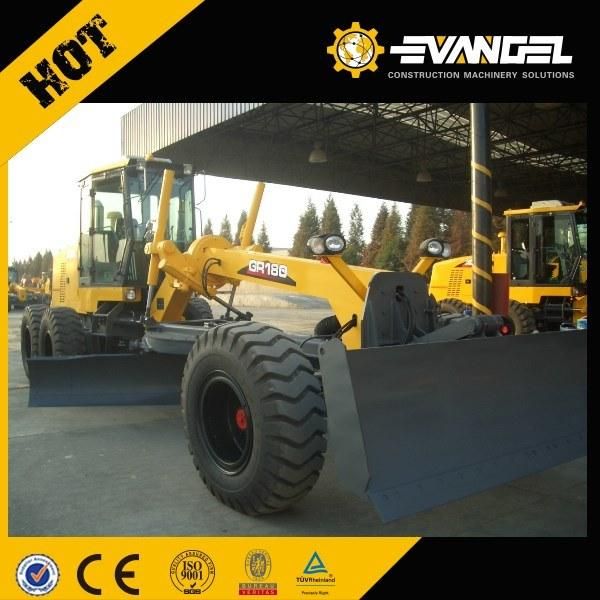

160hp small motor grader GR1603 with back ripperGR1603 Motor Grader
1.The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2.The drive axle is a dedicated Xugong axle.
3.Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4.The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
5.The sealed cab is used to configure the air conditioning system. The interior parts are sleek and compact plastic parts, which fully reflects the needs of ergonomics.
6.Hydraulic system uses load-sensitive technology to increase work efficiency.
