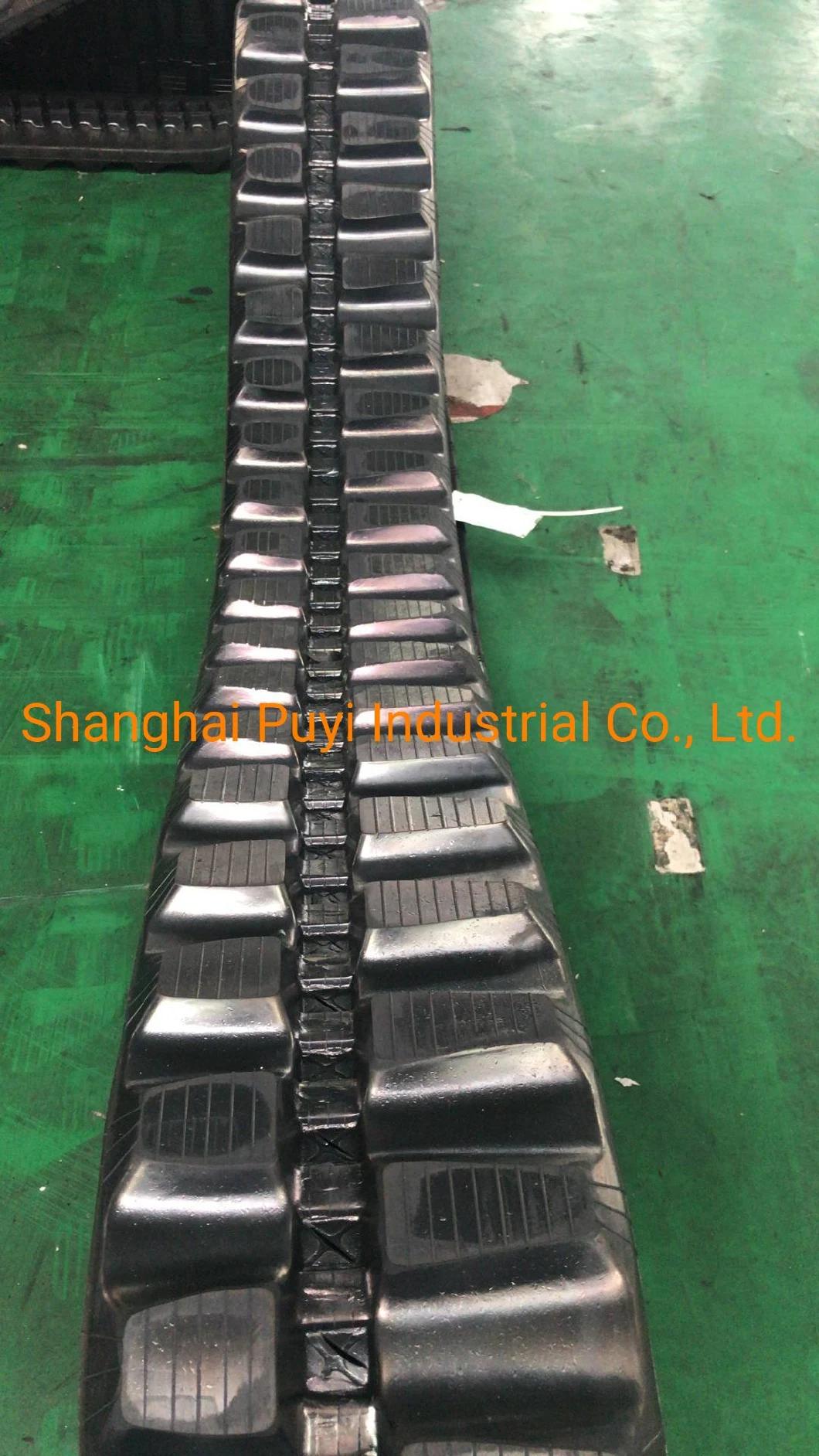

Rubber Crawler 250X48.5X84 for Ym Sv20/ Vio20 Global Excavator

Shanghai Puyi Industrial Co., Ltd.
  • Type:Crawler
  • Application:Excavator
  • Certification:ISO9001: 2000
  • Condition:New
  • Model Number:250*48.5k*84
  • Width:250mm

Base Info

  • Model NO.:250*48.5K*84
  • Pitch Length:48.5mm
  • Links:84
  • Total Length:4074mm
  • Weight:94.92kg
  • MOQ:2PCS
  • Suit for Machine:Excavators
  • Transport Package:Bare Package or Pallets
  • Specification:250*48.5*84
  • Trademark:No Marks or As buyer′s requests
  • Origin:Shanghai, China(Mainland)
  • HS Code:8431499900
  • Production Capacity:3000PCS,Month

Description

ModelVIO20 SV20VIO20.1VIO20.2VIO20.3VIO20CRVIO20PR.1VIO20.4SV22

 Rubber Crawler 250X48.5X84 for Ym Sv20/ Vio20 Global Excavator

2.Our rubber track:

All the Rubber Tracks have been designed and developed as a result of years of hands-on experience to handle the demanding conditions of the work site.



Our Rubber Tracks are the choice of the most discerning operators who are looking at the big picture and know that quality is remembered long after the price is forgotten.



Manufactured in state of the art ISO9001 certified facilities to the highest level of specification, rubber tracks offer you the following benefits:

Stronger - high tensile corrosion resistant steel core with forged drive links, we take no short-cuts with quality.

Longer Lasting - optimal blend of virgin natural and synthetic rubbers for maximum wear resistance. Unlike the recycled rubbers used by many cheap Chinese factories, natural rubber is more dense and flexible, giving greater protection against cracks, cuts and wear.


Guaranteed Fit - we fit a lot of what we sell; a container load of cheap Chinese tracks does not make a track expert, but experience does. We have fitted a lot of tracks in the past 10 years, so..... if it doesn't fit and it is our fault - we will fix it!!!

Peace-of-mind - 12 month warranty direct from the importer and distributor, no middle man and no excuses!

3.Advantages of our rubber tracks:

Continuous rubber track

We use continuous structure technology, which means the steel cord inside the rubber track is joint free. Compared to common rubber track, our rubber track with jonit free steel cord can offer a uniform tensile strength for the steel wire internal which makes the steel wire not easy to break and appear on the surface of the rubber track.

To sum up our rubber track have good tensile strength, low elongation, good anti-slip ability, stable dimension for pitch and not easy to break.

4.Why choose rubber track?

*Less ground damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks.

*Low Noise
A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks.

*High speed
Rubber tracks permit machines to travel at a higher speed than steel tracks.

*Less vibration
Rubber tracks insulate machine and operator from vibration, extending the service life of machine and decreasing operator's fatigue.

*Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30kg/m2, a major reason for its use on wet and soft terrain.

*Superior traction
The added traction of rubber  tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

*Light machinery weight
Rubber track's pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.
 5.Parameters
Width*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of LinksWidth*Pitch length(mm)Number of Links
130*7228-53300*52.5K72-84400*72.5KW68-92
150*6028-49300*52.5KW72-92400*7468-76
150*7229-40KB300*52.572-92400*75.5K74
170*6030-40KB300*52.5N72-98B400*8652-55
180*6030-40JD300*52.5N72-98400*9042-56
180*7230-58300*53K80-84Y400*14236-37
180*72K30-37300*5570-86400*14436-41
B180*72K34-51300*55.5K76-82Y400*144K36-41
B180*72A30-51300*71K72-55420*10050-58
H180*7230-50300*109N25-42450*7176-88
190*6030-40K300*10937-41DW450*7176-88
190*7234-39300*109WK35-42450*73.576-84
200*7234-47B300*8478-52450*7680-84
200-*72K37-47T300*86K48-52450*81N72-80
230*4860-84320*52.572-98450*81W72-78
230*48K60-84B320*52.568-98KB450*81.572-80
230*7242-56320*5470-84K450*83.572-74
230*72K42-56B320*8649-52B450*8453-56
230*9630-48320*9052-56B450*8652-55
230*10130-36320*10038-54450*9058-76
250*47K84320*100W37-65KU450*9058-76
250*48.5K80-88Y320*106K39-43T450*100K48-65
250*52.5K72-78350*52.570-92K450*16338
250*7247-57350*54.5K80-86485*92W74
B250*7234-60B350*55K77-98500*9076-82
B250*72B42-58350*5680-86500-9272-84
E250*7237-58350*75.5K74500*92W78-84
250*9635-38350*9042-56500*10071
250*10935-38350*10046-60K500*14635
260*55.5K74-80350*10840-46600*10076-80
Y260*9638-41350*10941-44600*12556-64
260*10935-39Y370*107K39-41700*10080-98
280*7245-64400*72.5N70-80750*15066
Y280*106K35-42400*72.5W68-92800*12580
300*52.5N72-98Y400*72.5K72-74
300*52.5W72-92KB400*72.5K68-76
