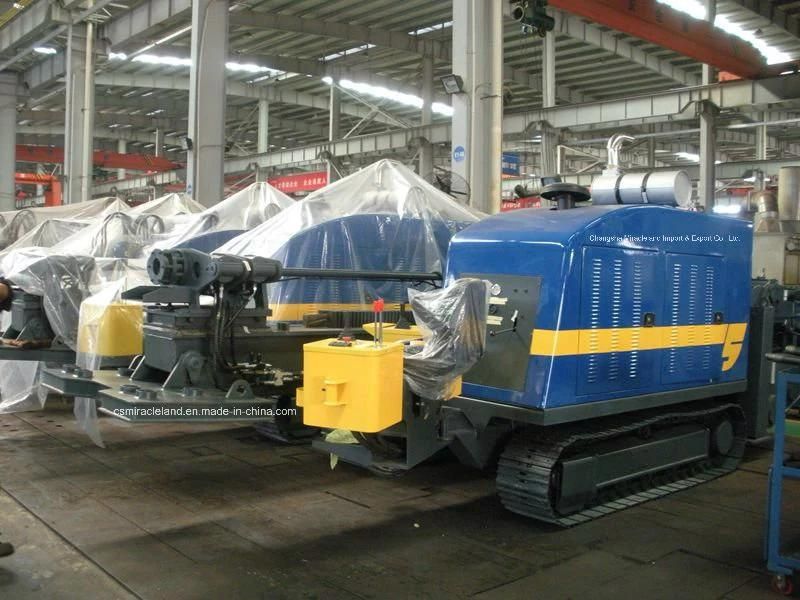

38ton Horizontal Directional Drill Rig (JVD-380 HDD)
Changsha Miracleland Import & Export Co., Ltd.- Quality：High Quality
- Diameter of Drill Pipe：3m
- Transport Package：in Plywood Case
- Specification：ISO9001: 2008
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
Base Info
- Model NO.：JVD-380
- HS Code：8430691900
- Production Capacity：20 Sets,Month
Description
Basic Info.
Model NO. JVD-380 HS Code 8430691900 Production Capacity 20 Sets/MonthProduct Description

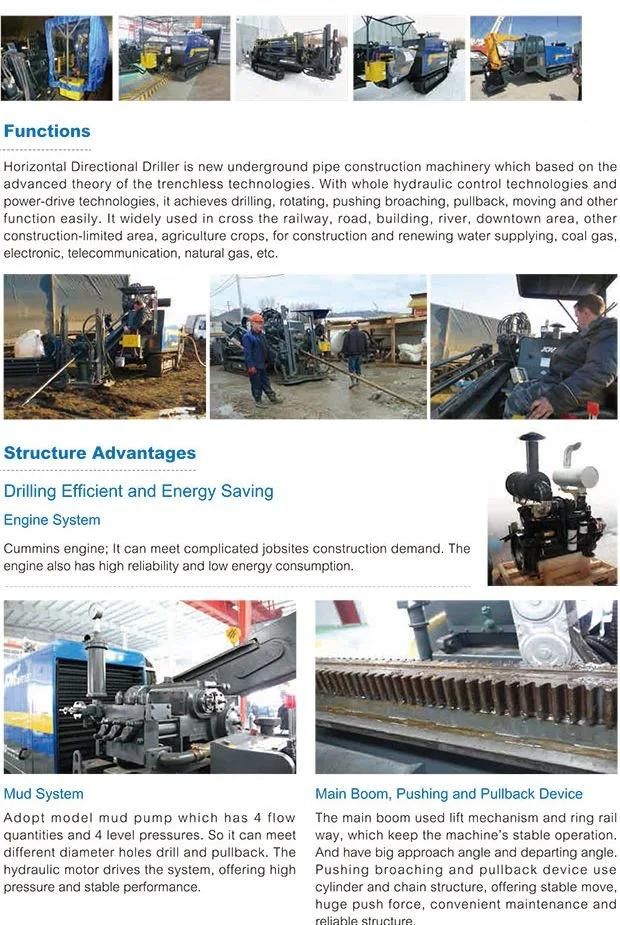

Main Characteristics1. The hydraulic system and layout is simple, which is fewer breakout and easy to maintain
2. The oil cylinder push-pull system can still keep incomparable power which has the advantage of high transmission efficiency, stable work and convenient maintenance
3. The main parts are from first-class producers in China and establish long term relationship with them, which improves the performance reliability of our products.
4. It equips with extra strong φ73*3000 mm drill pipe, which make full use of the ability
5. It is equipped with 320L/min mud pump, which is suitable for construction.
6. Imported powerful torque stepped motor, two gear speed controlled; It adopts steel crawler is suitable for various roads
7. Excellent engine is the guarantee of powerful drilling.
8. The operating platform of humanization design, rotary, good sight and front-back movable chair make the operator comfortable; the walking system equipped with wire remote controller is safe and convenient for the mail machine to load ,unload and walk.
Configurations:
| Item | Name | Model | Unit | Qty. | Remark |
| Main Components | Engine | 179KW | Set | 1 | Cummins |
| Hydraulic pump | 140/63/50 | Set | 1 | Heifei | |
| Main motor | 390 | Set | 4 | Eaton | |
| Travel motor | Set | 1 | Korea TIC | ||
| Main valve | Set | 1 | Taiwang | ||
| Main cylinder | Set | 1 | Heifei | ||
| Main multi-valve | Set | 1 | Heifei | ||
| Steel Crawler | set | 1 | Dalian | ||
| Mud pump | 320 | Set | 1 | Hengtang | |
| Spare parts | cost-free | ||||
| tool box | 1 | ||||
| engine filter | |||||
| Mud pump accessories | |||||
| Documents | Certificateoperator manual | 1 | |||
| Optional equipment | semiautomatic Rod change Device | set | 1 | Self-manufacture | |
| Auto Anchor Device | set | 1 | |||
| Drilling tool | Oriented Drill Bit | Set | 1 | outsourcing | |
| director plate | piece | 1 | outsourcing | ||
| Coupling connector | Set | 1 | outsourcing | ||
| Reducing coupling pipe | Transfer Case | piece | 1 | outsourcing | |
| Hexagonal sleeves | piece | 1 | outsourcing | ||
| Transfer devices | 40T | piece | 1 | outsourcing | |
| drilling pipe | Φ76×3000 | piece | 67 | Welded drill pipe | |
| back reamer | Φ300,Φ400,Φ500,Φ600,Φ700,Φ800 | piece | 6 | Pressure-fed | |
| Optional items | Slurry Mixing Station | joints and 15 meters water pipe | set | 1 | |
| Guide Instrument System | 3 m³ | set | 1 |
Main Specifications:
| Weight KG | 10700 | (L×W×H mm)dimension | 6800×2240×2420 |
| Max.thrust&pullback force KN | 380 | Max. torque N·M | 15500 |
| Max.thrust&pullback speed m/min | 7 | Max. Rotary speed r/min | 100 |
| Rated power KW | 179 | Max. mud pump flow L/MIN | 320 |
| Running speed KM/H | 2.7 | Max.mud pump pressure Mpa | 8 |
| Entry drill angle | 8~20° | Max. grade | 25° |
| Max.diameter of back reamer (soil dependent) MM | 900 | Max. distance (soil dependent) | 400 |
