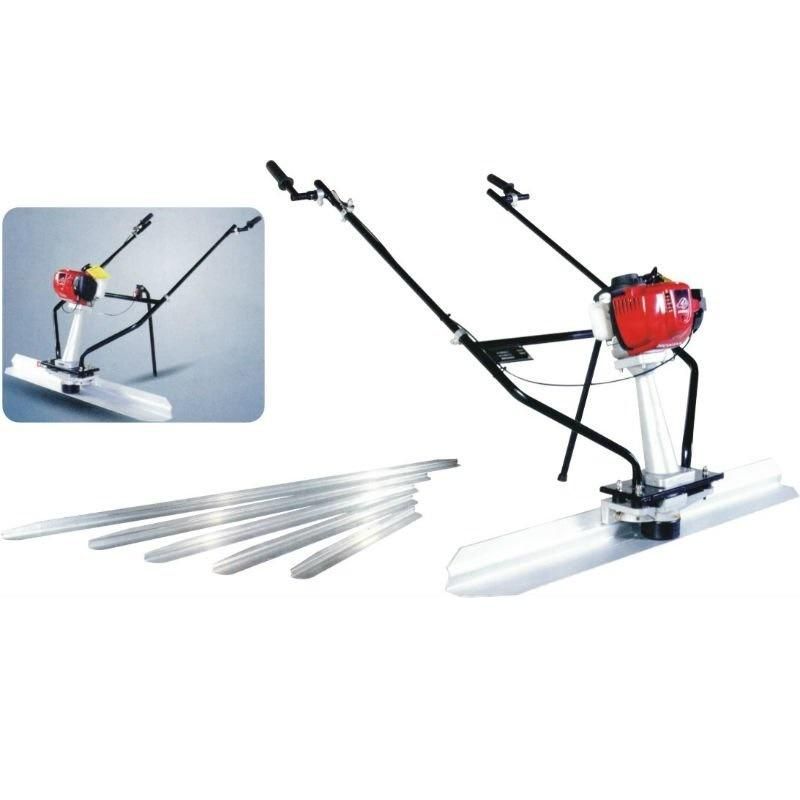

Concrete Vibrating Screed with Honda Engine
Ningbo Ace Machinery Co., Ltd.- Type：Trowel Machine
- Shotcrete Type：Semi-Dry
- Machining Process：Gasoline Engine Drive
- Structure：Rotor Type
- Productivity：75m²,h
- Vibrating Amplitude：1.2mm
Base Info
- Model NO.：KCD-4
- Certification：CE
- Condition：New
- Color：Red
- Product Name：Concrete Vibrating Screed
- Engine Type：4-Stroke
- Engine Model：Honda Gx35 1.5HP
- Power Kw(HP)：1.2(1.6)
- Weight Kg(Lbs)：12.5(28)
- Transport Package：Carton
- Specification：CE
- Trademark：KZW
- Origin：China
- HS Code：84306100
- Production Capacity：1000PCS,Month
Description
Weigh of BladesThe total weight of the machine should be the weight of engines assembly plus weight of blades. Blade Model CB4 CB6 CB8 CB10 CB12 CB14 CB16 Blade Size (mtr) 1.22 1.8 2.44 3 3.66 4.47 4.88 Blade Size ( ft ) 4 6 8 10 12 14 16 Weight kg 2.9 4.36 5.81 7.27 8.72 10.16 11.61
ADVANGE:
How much you can save with Screed
Comparison for screeding a 2000 sq.m concrete slab
ADVANGE:
How much you can save with Screed
Comparison for screeding a 2000 sq.m concrete slab
| Method | conventional | Screed |
| Labour required | 4 men | 1man |
| Screeding per man | 500 sq.m | 2000 sq.m |
| Time required | 10 hours | 7hours |
