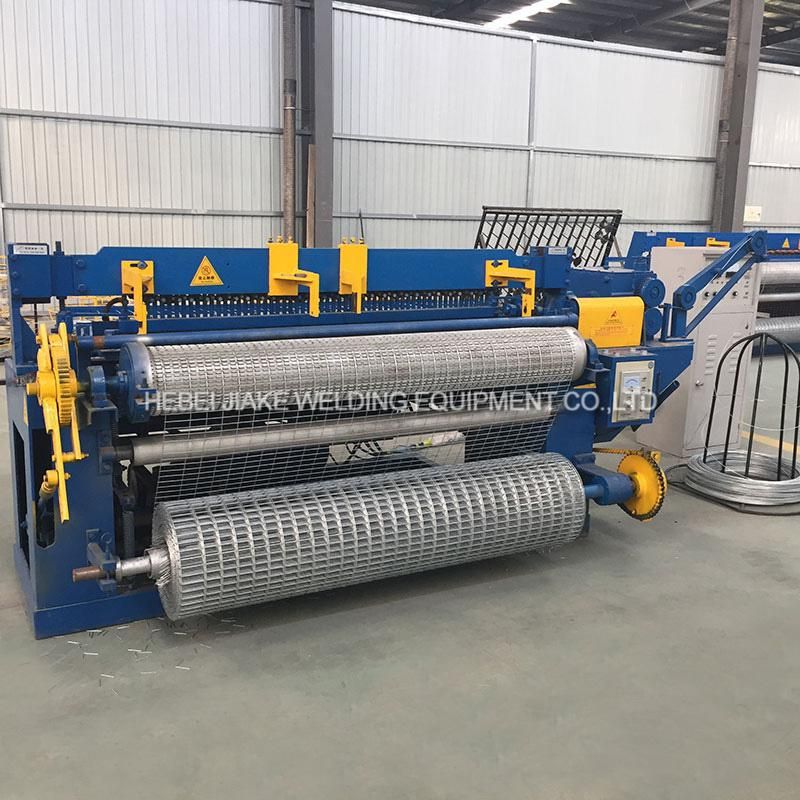

Popular Roll Mesh Welding Machine Manufacturer
Hebei Jiake Welding Equipment Co., Ltd.- Wire Diameter:0.4-2.5mm
- Pitch:1,4", 1,2", 1", 2", 3", 4"
- Mesh Width:1m, 1.2m, 1.5m, 2m, 2.5m
- Motor:2.2kw, 4kw, 5.5kw, 7.5kw
- Welding Speed:75-180rows,Min
- Longitude Wire Feeding:Pay-off
Base Info
- Model NO.:DP-DNW
- Cross Wire Feeding:Pay-off
- Raw Material:Low-Carbon Steel Wire, Galvanized Wire
- Certification:Ce
- Transport Package:Plastic Film in Container
- Specification:CE
- Trademark:JIAKE
- Origin:Hebei, China
- HS Code:8463300000
- Production Capacity:30 Sets Per Month
Description
Basic Info.
Model NO. DP-DNW Cross Wire Feeding Pay-off Raw Material Low-Carbon Steel Wire, Galvanized Wire Certification Ce Transport Package Plastic Film in Container Specification CE Trademark JIAKE Origin Hebei, China HS Code 8463300000 Production Capacity 30 Sets Per MonthProduct Description
Popular Roll Mesh Welding Machine ManufacturerTechnical Parameters
Type | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
Wire diameter | 0.4-0.65mm | 0.65-1.8mm/0.8-2mm/0.65-2mm | 1.0-2.2mm/1.2-2.5mm |
Aperture/pitch | 1/4", 1/2" 6.25, 12.5mm | 1/2", 1", 2" 12.5, 25, 50mm | 1", 2", 3", 4" 25, 50, 75, 100mm |
Mesh width | Max.1m, 1.2m | Max.1.2m,1.5m, 2m | Max.1.2m, 1.5m, 2m, 2.5m |
Motor | 2.2kw | 2.2kw; 4kw | 4kw; 5.5kw, 7.5kw |
Welding speed | Max.75 rows/min | Max.120-180 rows/min | Max.80-120 rows/min |
Transformer | 50kva*3 | 60kva*4;60kva*5, 60kva*7 | 70kva/80kva*5/6/7/8 |
Weight | 1.5T | 2T, 2.5T | 2T, 2.5T, 3T, 3.5T |
The longitude wire and cross wire can be fed from wire coils automatically.

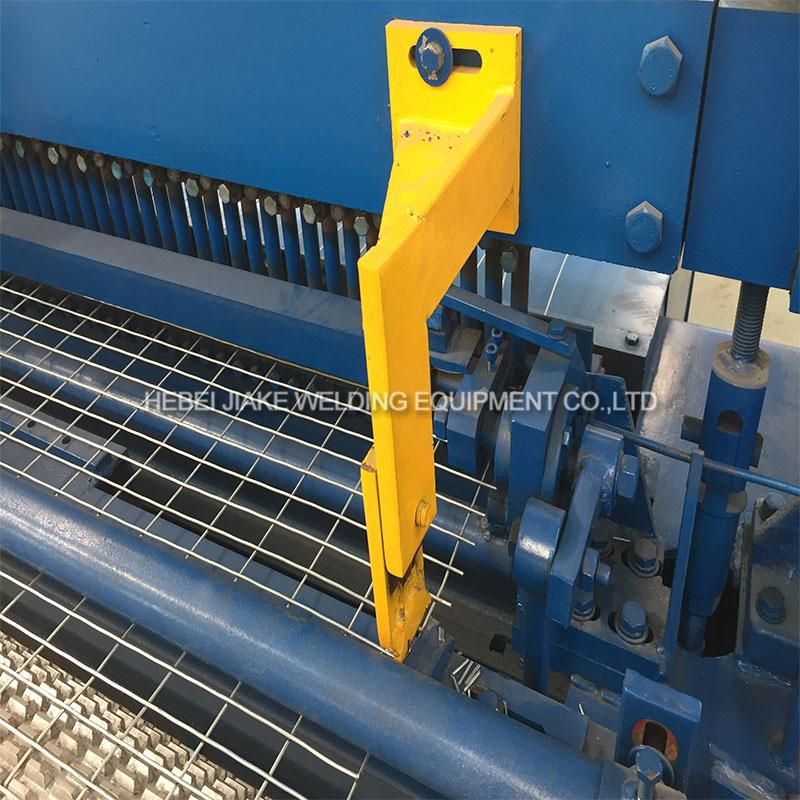

The middle cutter and sider cutters can be adjusted randomly to make two mesh rolls at same time.
We use Schneider electric components, Delta inverter in the electric control cabinet.

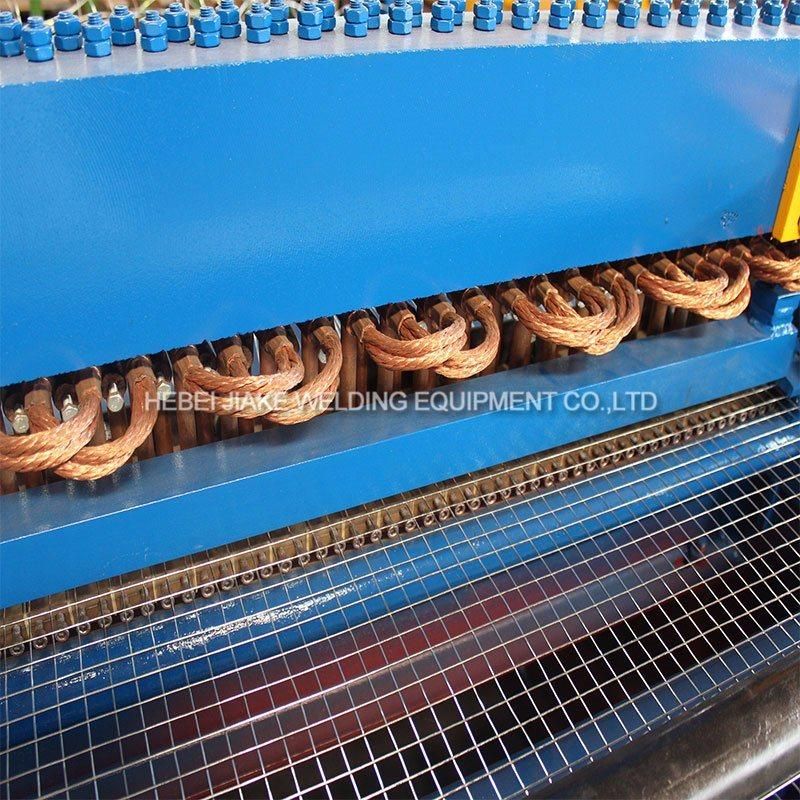

The welding transformers have 8 degrees and can be adjusted for different wire diameters.
The mesh roll length can be set by counter switch on the control panel
The welding time and welding current can be adjusted on the control panel to adjust the welding degree.

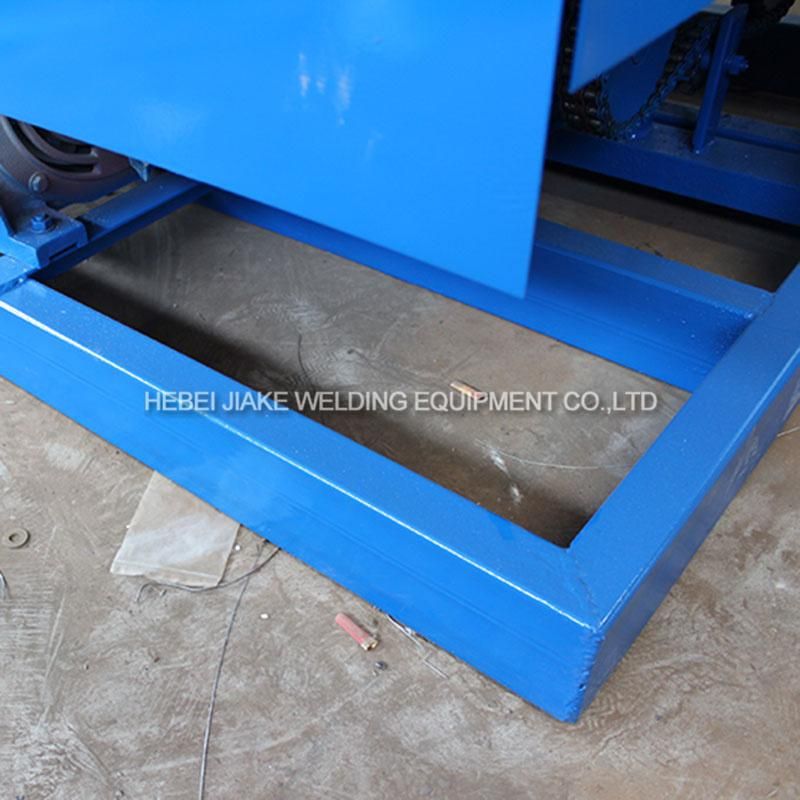

Detailed Photos
