120ton Asphalt Batching Plant/Hot Mix Asphalt Mixing Plant
Sinoway Industrial (Shanghai) Co., Ltd.- Type：Asphalt Mixing Plant
- Object：Asphalt Concrete Pavement
- Moving Type：Fixed
- Mixing Method：Continuous Drum
- Automatic Grade：Automatic
- Product Capacity：120t,H

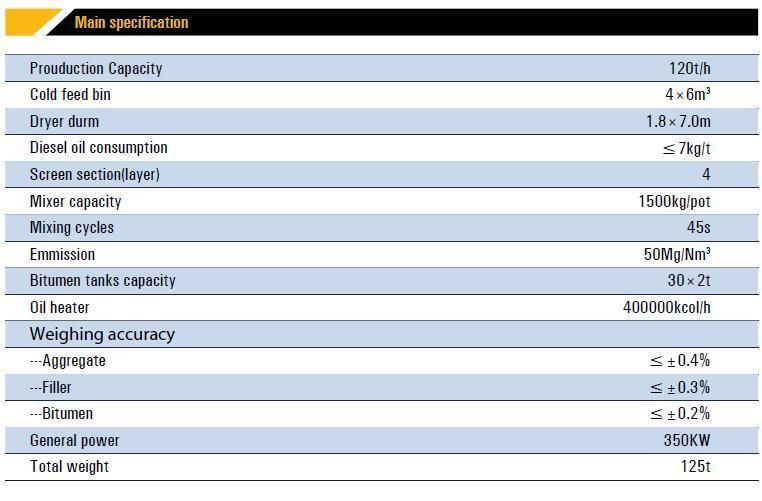

Base Info
- Model NO.：SWABP1500
- Certification：ISO9001: 2000
- Condition：New
- Bitumen Tanks：2X 30 Ton
- Mixer Capacity：1500 Kg,Pot
- Mixer Cycles：50s
- Total Power：350kw
- Min.Order：1 Set
- Transport Package：Container
- Specification：ISO9001
- Trademark：SINOWAY
- Origin：China
- HS Code：84743200
- Production Capacity：5000 units per year
Description
Cold Feed SystemAggregate bin 4pcs Ring Frequency belt feeder 4sets Belt 500mmx3.2m 4pcs frequency variation Electric roller 1.5kw 4sets Collector belt conveyer 1set Belt 500mmx26m 1pc Electrical roller 4kw 1pc Vibrator MVE200/3 1pc Belt Conveyer Belt 500mmx23m 1pc Electrical roller 4kw 1pc Belt conveyor frame and Filter net 1set Burning System Burner 45kw 1set Supply valve, gas control valves, filters 1set Heavy diesel oil gas control switch, electric heater 1set Automatic temperature control system 1set Diesel oil pot 1set Dry Roller Roller φ1800×7200 1set Machine frame, idler roll, Bearing 1set Feed box, discharge box 1set Drive chain 1set Gear motor 30kw 1set Hot Feed Hoister Box body 1set Chain 1set Gear Braking motor 11kw 1set Vibrating Screen 4LZSF1534 (Four sieve) 1set Hot Aggregate Bin Bin body, feed door ,sealing 1pc Level indicator 4pcs Cylinder 100 4sets Aggregate Metering Bin Metering hopper, Sealed enclosures, check gate 1pc Weighing sensor 4pcs Cylinder φ100 1set Powder Metering Bin Weighing hopper 1pc Weighing sensor 3pcs Pneumatic butterfly valve 1set Powder screw 1set Vibrator 1pc Asphalt Weighing Weighing box (Conducting oil heating) 1pc Weighing sensor 1pc Asphalt pump 1set Mixing Main Machine Mixing main machine 1set Reducer 2sets Motor 22kw 2sets Weighing mixing frame 1set Cylinder 2pcs Pneumatic System Air compressor 1set Air tank 1set Solenoid valve 1set Three Units 2pcs Pipe passage system (New aluminum tube) 1set Bag Type Dust Collector One grade dust collector 1set Bag-type dust collector box body Nomix Bag-type pulse valve 1set Ash valve, Helical reducer 1set Wind pipe 1set Discharge fan and electric wind door 1set Powder Supply System New powder weighing and return powder spiral 2sets High-low Powder tank 2pcs Fluidization Pads 12pcs Reclaiming powder Surge bin 1set Reclaiming powder weighing screw 1set Level Indicator 4pcs Weighing powder butterfly valve ( pneumatic) 2pcs Butterfly valve(manual) 3pcs Return powder hoist 1set Top dust collector 1set Asphalt Supply System Asphalt Storage Tank(Insulation, heating) 1set Asphalt heating insulation double pipe, valves 1set Metal hose and thermometer, thermocouple 1set Weighing three insulation valve (U.S. Technology) 1pc Weighing cylinder 1pc Asphalt weighing Pump 1set Hot Oil Supply System Hot oil furnace and high-low level tank 1set Burner 1set Hot oil piping, valve and feeding pump 1set Hot oil pump 1set Control cabinet 1set Electric Control System Insulation control room 5mx2.4mx2.6m 1set Insulation control room 5mx2.4mx2.6m Control component part 1set Frequency Conversion Equipment 4sets PLC 1set Industry Control Machine 2sets LCD Color Display 2sets Printer 1set Cable 1set Air condition 1set Power supply 2sets
