• Model NO.：DP-CRZZ150
• Load-Bearing：300kg
• Color：Black
• Transport Package：Bare Packing, Bag, Pallet
• Specification：150
• Trademark：PY
• Origin：China
• HS Code：8708996000
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. DP-CRZZ150 Load-Bearing 300kg Color Black Transport Package Bare Packing, Bag, Pallet Specification 150 Trademark PY Origin China HS Code 8708996000 Production Capacity 100 Sets/Month

Product Description

Item: Rubber track undercarriage

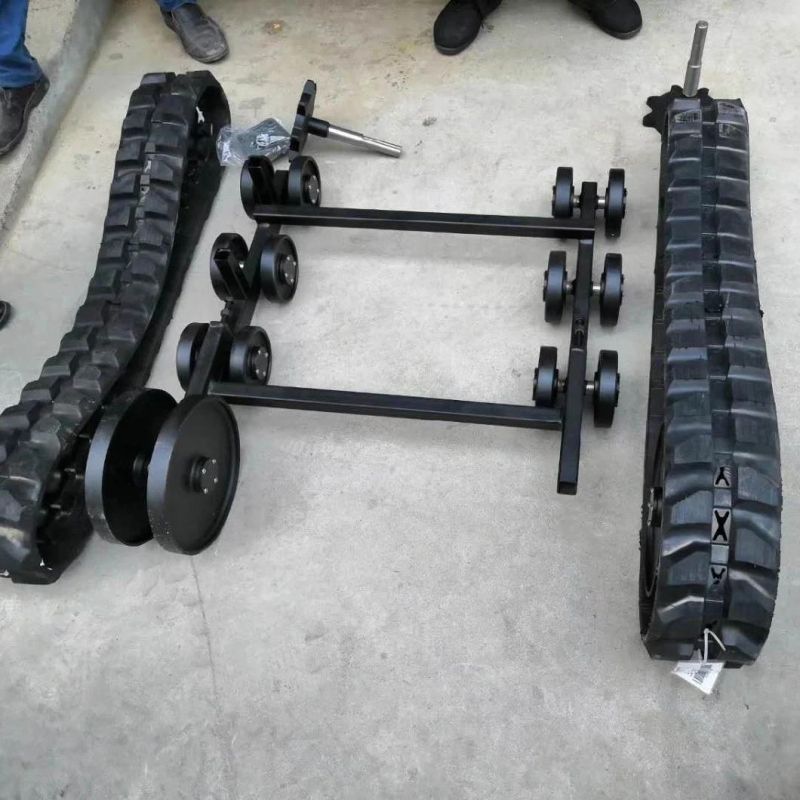

Main Parts:Rubber track;construction frame;tensioning screw,drive wheel/sprocket; support wheels,and idler,etc.
Material:Steel,rubber,UHMW-PE(wheels)

Description of the rubber track undercarriage:
1. Wide used on snow blower,paver,dumper,mini excavator,small harvester,anti-fire robot,raw mower,and other small or mid size machine design.

2. Easy for vehicles to run on hill land, mud road, sand ground...

3.Max load only 300kgs,if your idea of design is over 300kgs,please contact us for choosing other models.

4.Application: All terrain/season;

5.Warranty: 12 months

Their choice of operating environment and notice are as follows:
(1) rubber track,temperature is generally between -25 ~ + 55'C.

(2) chemical, oil, sea salt will accelerate the aging track, after use in such an environment, need to clean track.

(3) sharp edge (such as steel, stone, etc.) of the road will cause damage to the rubber track.

(4) the curb of the road, rutted or uneven pavement can cause side edge of the ground track pattern to be cracked, but the rubber track can be used continuously if the inside steel cord has no injuries.

(5)gravel, gravel road will result in abrasion earlier where the idlers connect with the rubber track, and formation of small cracks. Serious water ingress, causing iron core loss, wire breakage.

(6)35 degree slope and 20 degree side slope,for climbing


You can send us message with your size for the undercarriage as we can customized for you
1.Max loaded weight and what kind of machine to fit is necessary to determine the rubber track type

2.The entire size of the rubber track undercarriage,like the Width,Length,Height is also very important for us to make a recommendation for you.

3.The undercarriage in the ads,please have a reference,if you like,we can adjust the size for you.Special customized size is also acceptable.

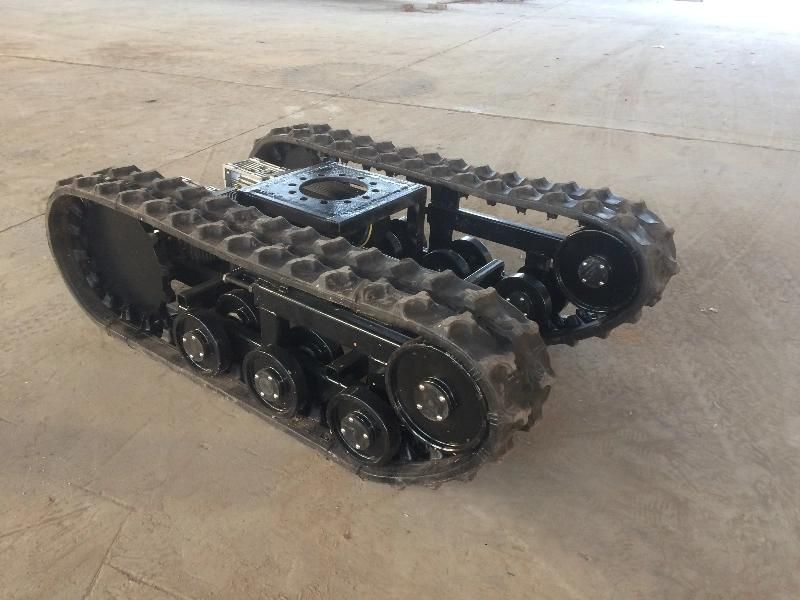

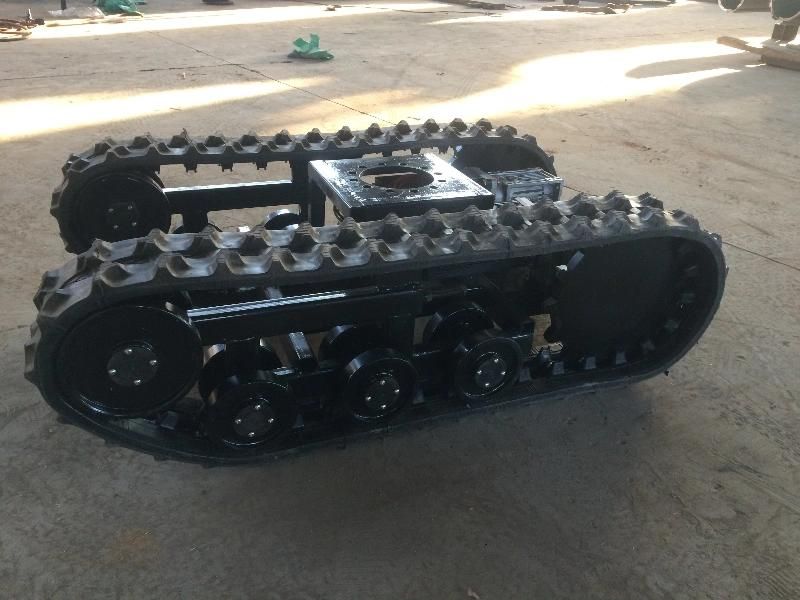

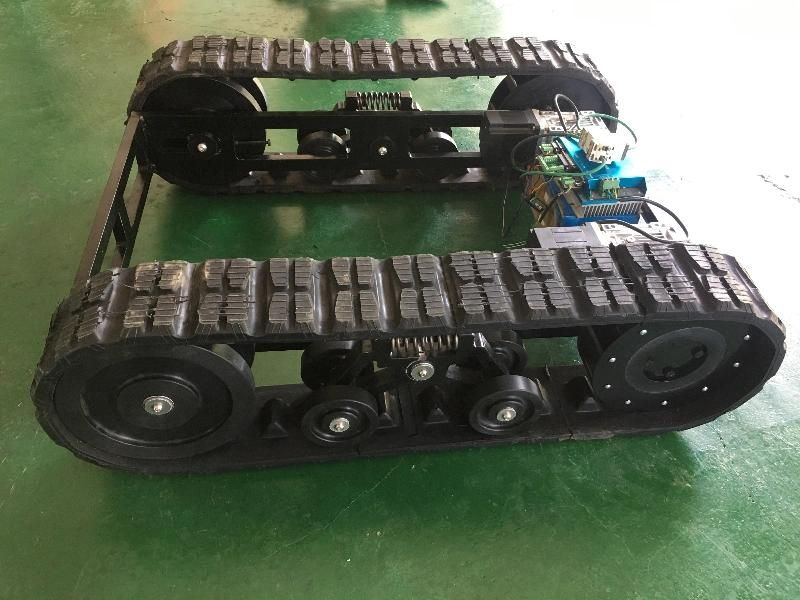

More pictures for reference,rubber track undercarriage with power part

Spec in the ads

Items	Qty	Spec
Support wheel assembly	16	136*35
Drive wheel assembly	2	200*20
Adjusting wheel assembly	4	180*35
frame	1	customized
Support shaft	10	customized
Bearing room	2	customized
electric motor	2	48V
Reducer	2	customized
Drive assembly	1	customized
lithium battery	1	48V
Rubber track	2	150*72
Packing box	1	customized

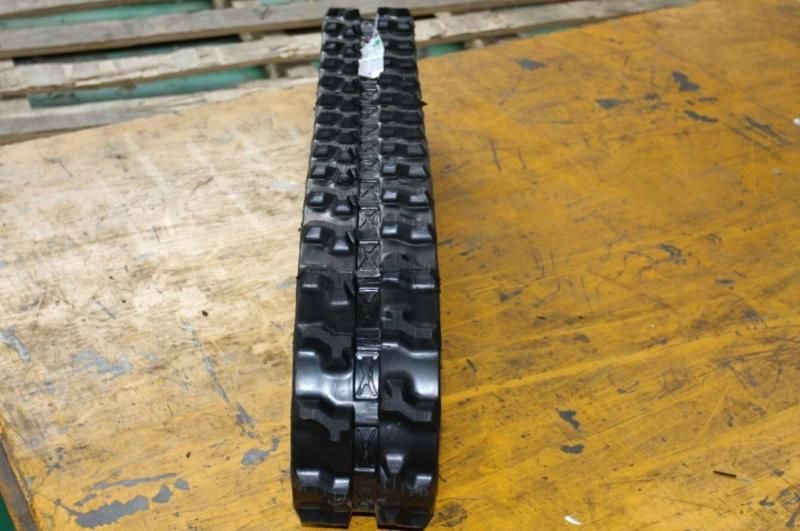

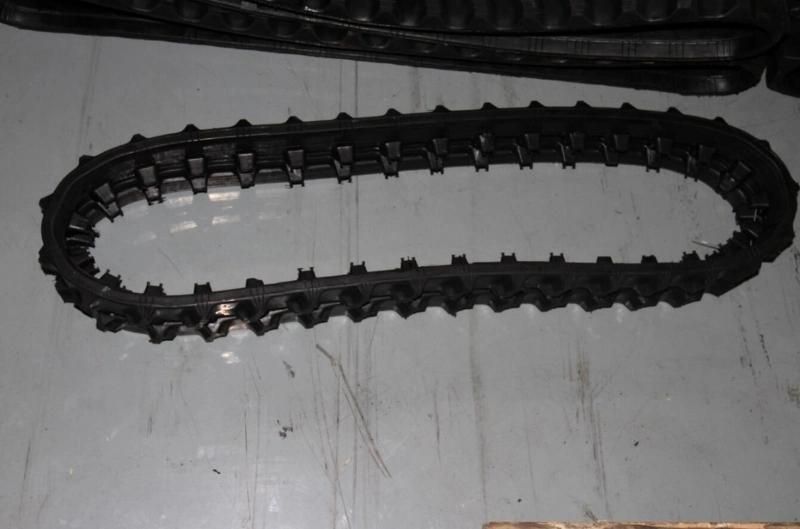

RUBBER TRACKS

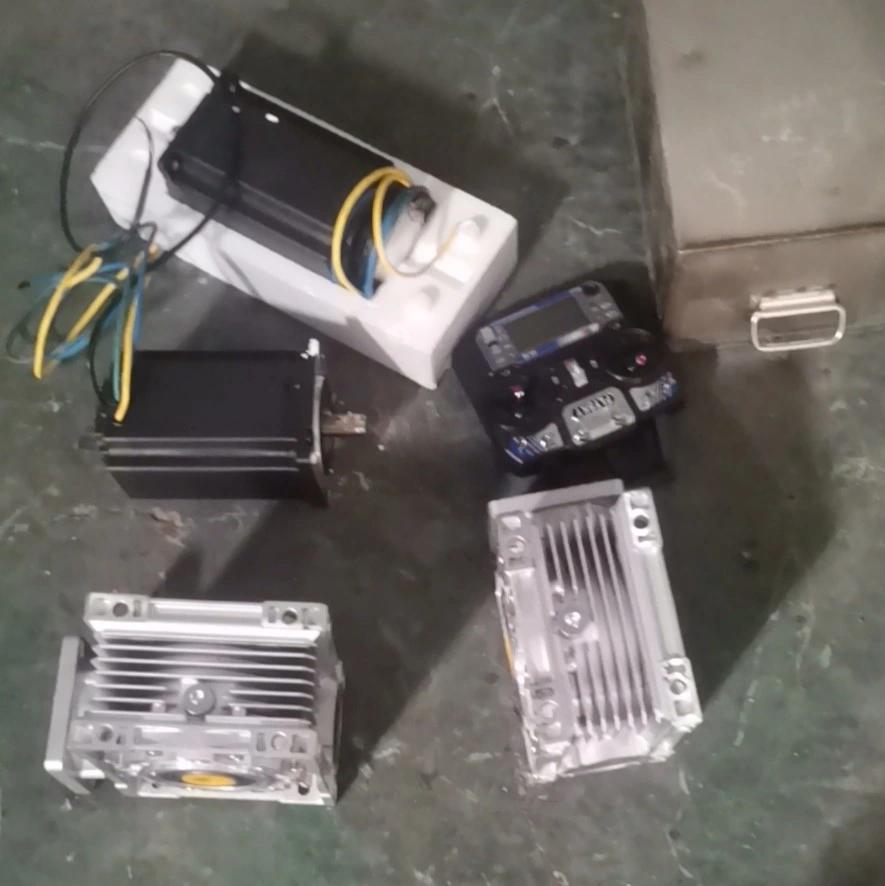

One whole  set including 2*motor with reducer+1*controller+1*remote control
(not including battery)







Similar design for this set is available
