Brand New Se135 Crawler Excavator with Good Prices
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year Warranty
- Type：Crawler Excavator
- Usage：GM Excavator
- Bucket：Shovel
- Transmission：Hydraulic Transmission
Base Info
- Model NO.：SE135
- Drive Type：Electric Drive
- Bucket Capacity：0.1~0.5m³
- Size：Medium-Sized
- Certification：CE
- Condition：New
- Power：86kw
- Operating Weight：13500kg
- Transport Package：Nude Package
- Trademark：Sinomada
- Origin：China
- HS Code：8429510000
- Production Capacity：20untis,Month
Description
Basic Info.
Model NO. SE135 Drive Type Electric Drive Bucket Capacity 0.1~0.5m³ Size Medium-Sized Certification CE Condition New Power 86kw Operating Weight 13500kg Transport Package Nude Package Trademark Sinomada Origin China HS Code 8429510000 Production Capacity 20untis/MonthProduct Description
Brand New SE135 Crawler Excavator with Good PricesSpecification
World's leading high-adaptability turbocharged engine.
The world's first-class hydraulic configuration features high working pressure and low pressure loss.
| Comparative item | SE135 (Standard version) | SE135W(Weichai engine version) |
| Overall dimensions | ||
| Overall length (mm) | 7860 | 7860 |
| Ground length (During transport) (mm) | 4320 | 4320 |
| Overall height (To the top of boom) (mm) | 2800 | 2800 |
| Overall width (mm) | 2500 | 2500 |
| Overall height (To top of cab) (mm) | 2855 | 2855 |
| Ground clearance of counterweight (mm) | 915 | 915 |
| Minimum ground clearance (mm) | 425 | 425 |
| Tail turning radius (mm) | 2380 | 2380 |
| Track length (mm) | 3645 | 3645 |
| Track gauge (mm) | 2000 | 2000 |
| Track width (mm) | 2500 | 2500 |
| Standard track shoe width (mm) | 500 | 500 |
| Turntable width (mm) | 2490 | 2490 |
| Distance from slewing center to tail (mm) | 2375 | 2375 |
| Working range | ||
| Maximum digging height (mm) | 8495 | 8495 |
| Maximum dumping height (mm) | 6060 | 6060 |
| Maximum digging depth (mm) | 5490 | 5490 |
| Maximum vertical digging depth (mm) | 4625 | 4625 |
| Maximum digging distance (mm) | 8300 | 8300 |
| Maximum digging distance at ground level (mm) | 8175 | 8175 |
| Working device minimum turning radius (mm) | 2445 | 2445 |
| Maximum lifting height of bulldozer blade (mm) | - | - |
| Maximum digging depth of bulldozer blade (mm) | - | - |
| Engine | ||
| Model | QSF3.8T(China III) | WP4.1(China III) |
| Type | 4-cylinder inline and water-cooled and turbocharged | Inline 4-cylinder, high pressure common rail, and water-cooled and turbocharged |
| Displacement (L) | 3.76 | 3.76 |
| Rated power (kW/rpm) | 86/2200 | 92/2200 |
| Hydraulic system | ||
| Type of hydraulic pump | Variable displacement duplex plunger pump | Variable displacement duplex plunger pump |
| Rated working flow (L/min) | 2x130 | 2x130 |
| Bucket | ||
| Bucket capacity (m³) | 0.4~0.65(0.55) | 0.4~0.65(0.55) |
| Swing system | ||
| Maximum swing speed (r/min) | 11.3 | 11.3 |
| Brake type | Mechanically applied and pressure released | Mechanically applied and pressure released |
| Digging force | ||
| Bucket arm digging force (KN) | 70 | 70 |
| Bucket digging force (KN) | 97 | 97 |
| Operating weight and ground pressure | ||
| Operating weight (kg) | 13500 | 13500 |
| Ground pressure (kPa) | 41.5 | 41.5 |
| Traveling system | ||
| Traveling motor | Axial variable displacement plunger motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 3.25/5.2 | 3.25/5.3 |
| Traction force (KN) | 118 | 118 |
| Gradeability | 70%(35°) | 70%(35°) |
| Tank capacity | ||
| Fuel tank capacity (L) | 220 | 245 |
| Cooling system (L) | 20 | 20 |
| Engine oil capacity (L) | 12 | 12 |
| Hydraulic oil tank/system capacity (L) | 177/205L | 177/205L |

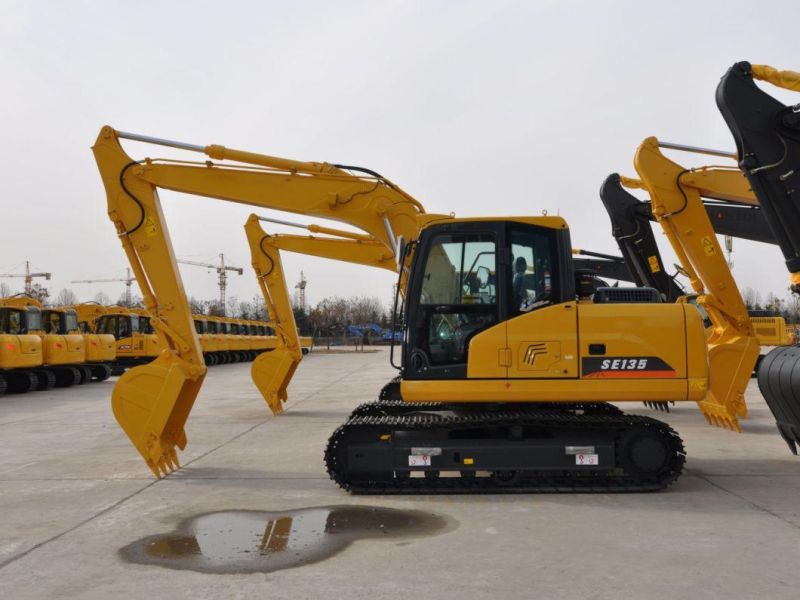

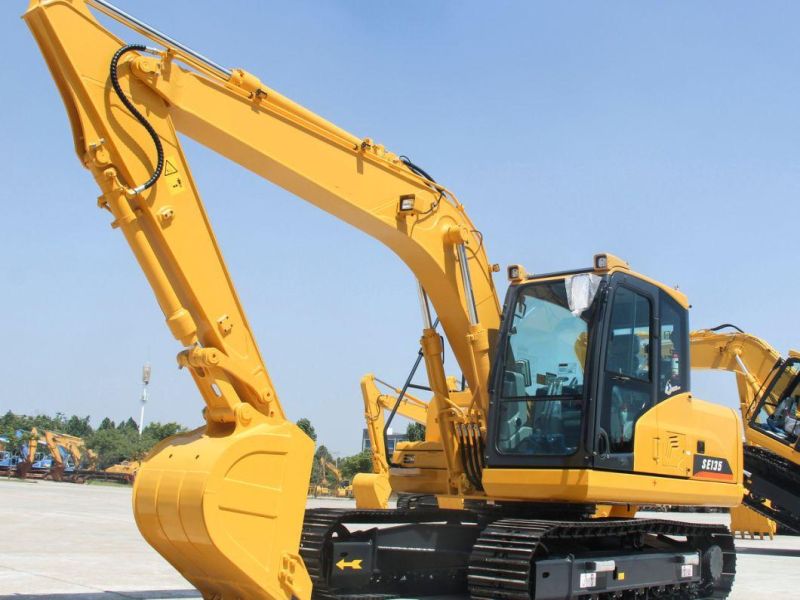

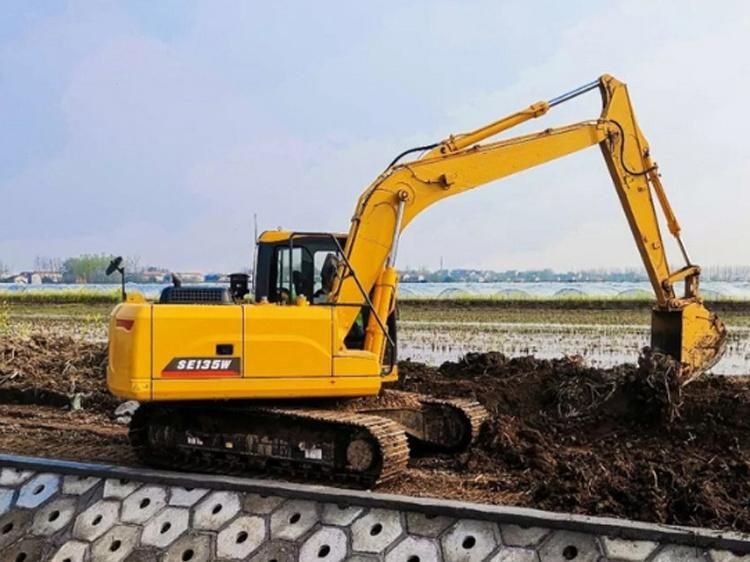

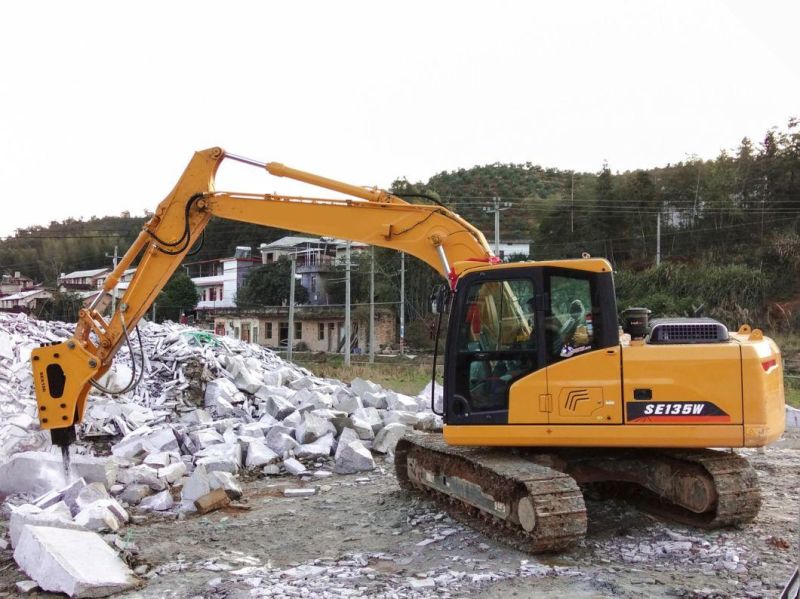

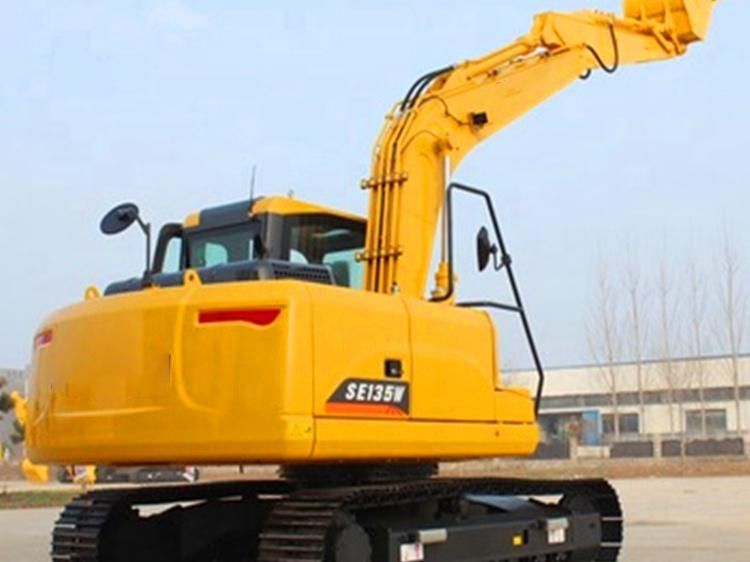

Product pictures
