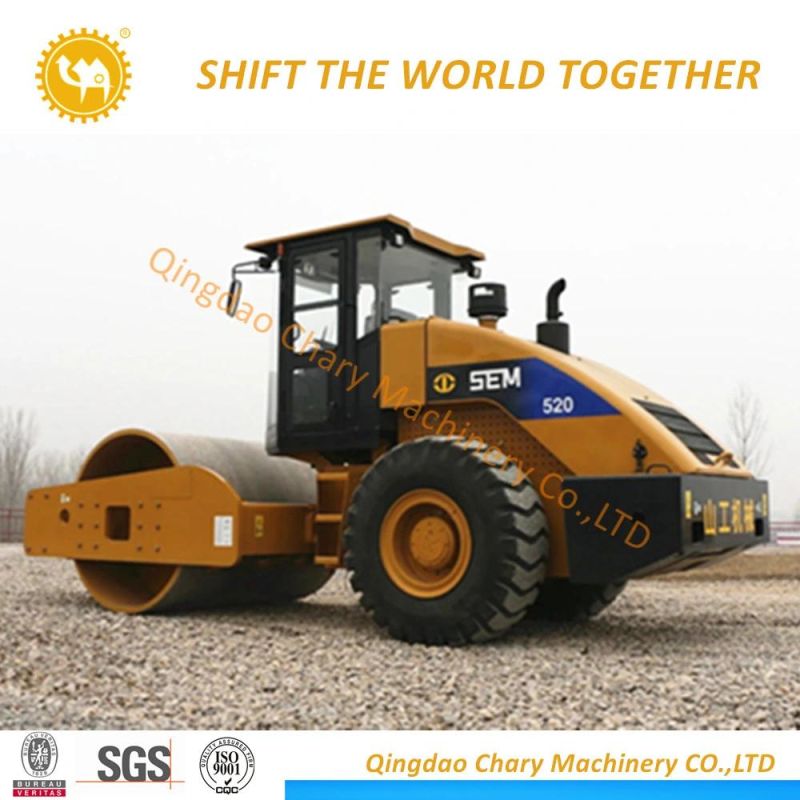

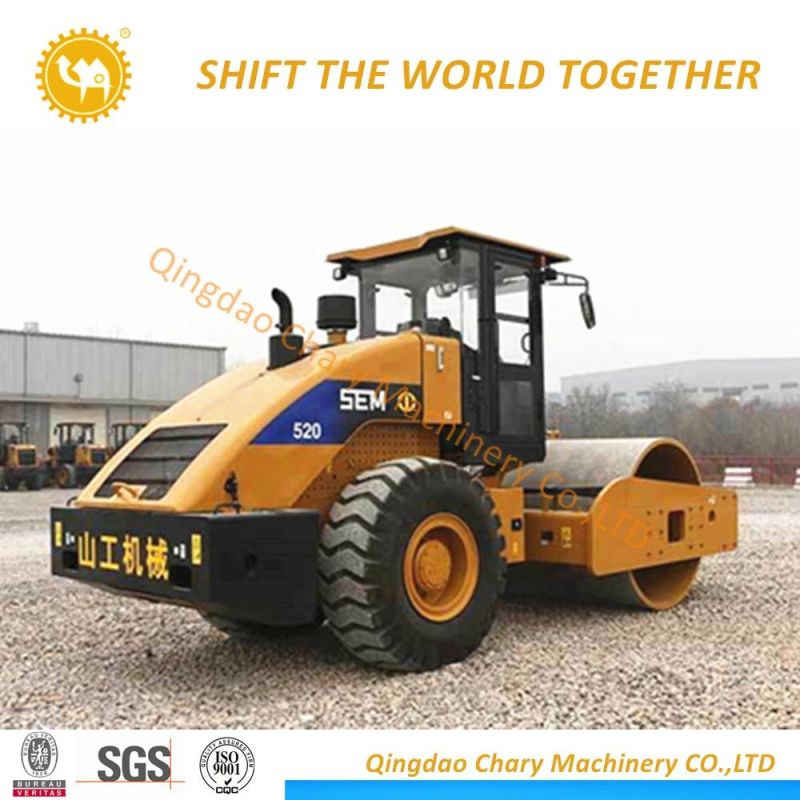

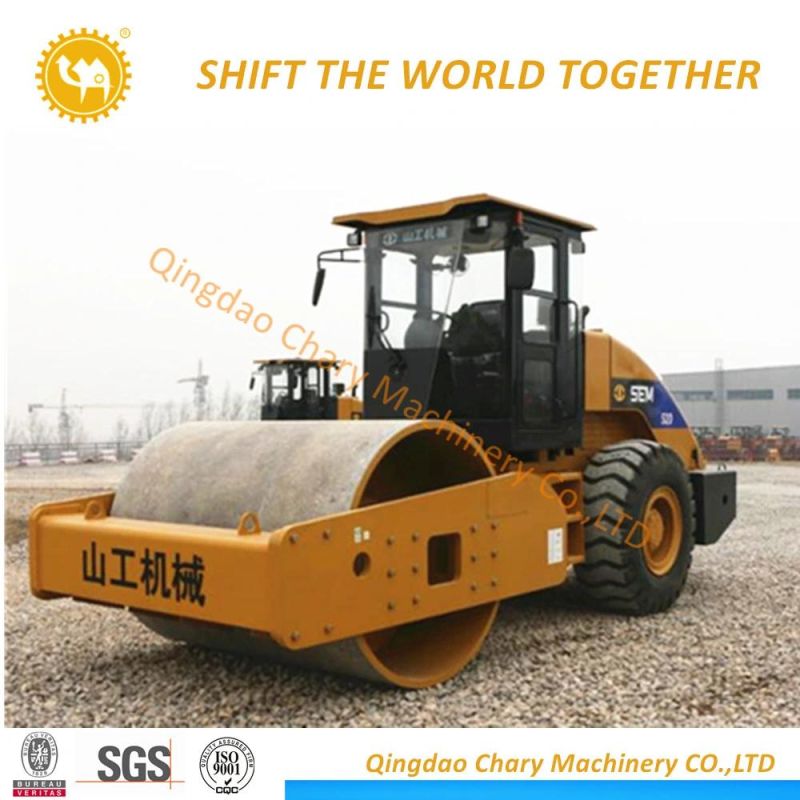

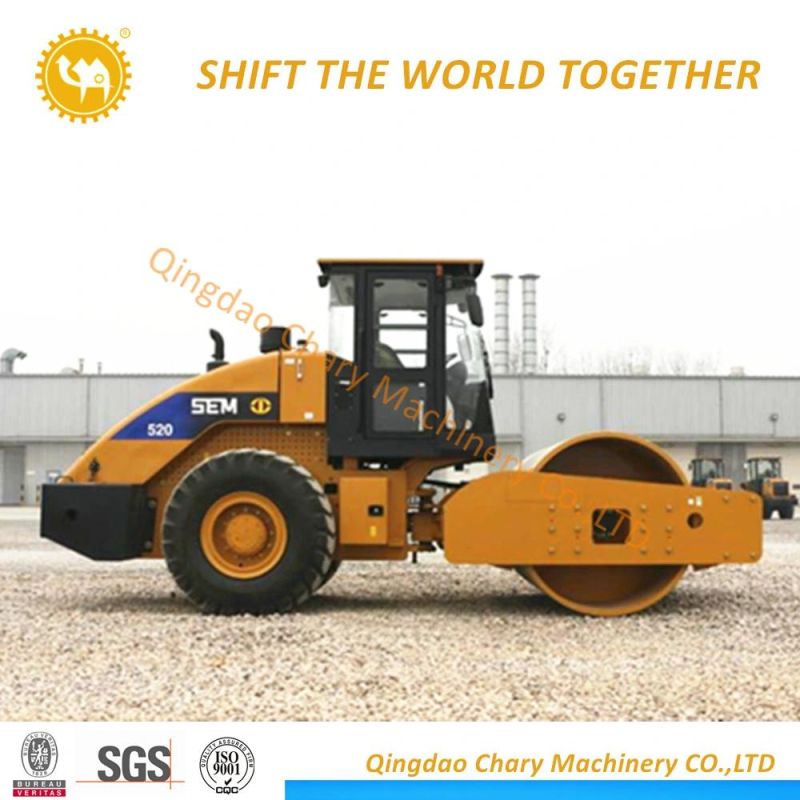

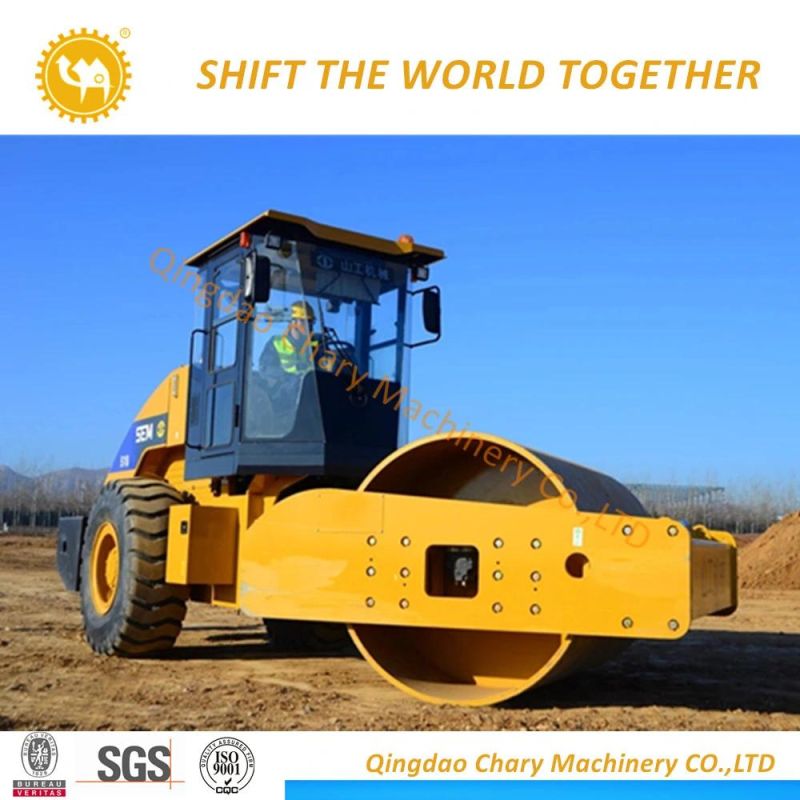

Road Roller Sem520 20 Ton Soil Compactor
Qingdao Chary Machinery Co., Ltd.- Type：Road Roller
- Working Method：Wheeled
- Axle：Triaxial Three-Wheel
- Grinding Wheel Type：Tire Grind
- Compaction Depth：35cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：Road Roller SEM520
- Centrifugal Force：18KN
- Certification：EPA, CS, CE, ISO 9001:2000
- Condition：New
- Use：Road Roller
- Product Name：Road Compactor
- Delivery Time：Shipped in 30 Days After Payment
- Color：Customers′ Optional
- Operating Weight (Kg)：20000
- Vibration Frequency (High/Low) (Hz)：30,28
- Amplitude (High/Low) (mm)：2,1
- Excitation Force (High/Low) (Kn)：360,208
- Rated Power(Kw)：129
- Fuel Tank Volume (L)：262
- Transport Package：Nude Packing, Container
- Specification：6370x2360x3185mm
- Trademark：SEM
- Origin：China
- HS Code：8429209000
- Production Capacity：500 Unit,Month
Description
Main Specifications
Operating weight (kg)
20000
Compaction (% of XS122)
Vibration frequency (high/low) (HZ)
30/28
Amplitude (high/low) (mm)
2/1
Excitation force (high/low) (KN)
360/208
Static pressure (N/cm)
461
Engine
Rated power(kw)
129
Speed (r/min)
2000
Fuel tank volume (L)
262
Hydraulic oil tank volume (L)
80
Drum
Drum width (mm)
2130
Drum diameter (mm)
1600
Drum thickness (mm)
50
Tires
Tires type
20.5-25
Speed
F/R I (km/h)
2.98
F/R II(km/h)
5.88
F/R III (km/h)
9.60
Swing angle (°)
±12
Steering angle (°)
±33
Outer turning radius (mm)
6350
Max.gradeability
34%

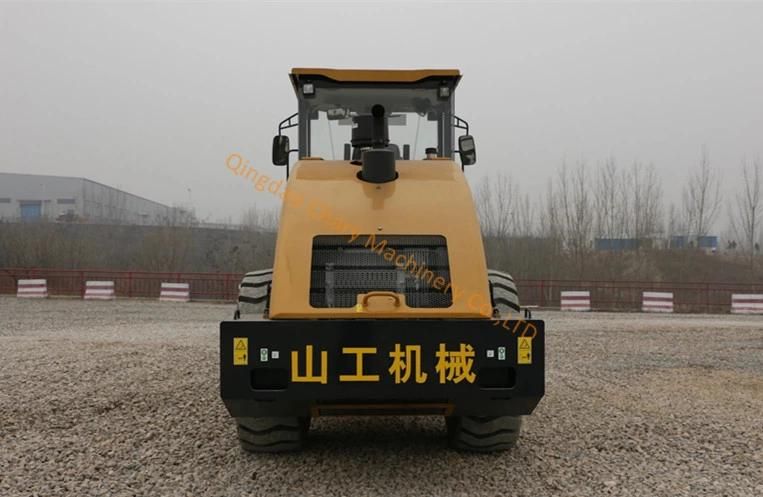

Road Roller SEM520 20 Ton Soil Compactor
Advantages of SEM520:
* High Efficiency: The unique vibratory pod design along with 50 mm thick drum provides superior compaction performance
* Reliability: Vibration system utilizes eccentric vibe pod design, extends life over 50%
* Operation: Digital frequency meter and three level alarm system monitor machine performance
Remarkable Features:
Vibe Pod Design
-Eccentric vibe pod design, extends system life by 50%
-Steel shot moving inside closed eccentric block, stable and reliable vibe amplitude, reduces impact to motor, prolongs maintenance period of vibratory system
-Completely sealed eccentric gear eliminates contamination, prolongs bearing life
-SEM520 are equipped with a 50 mm thick drum compared to competitors with a 40 mm thick drum, provides increased compaction performance versus the competition
Cooling System
-Isolated modular cooling system
-Suction style fan pulls low temperature air through the radiator, providing superior cooling capability
-Optional high ambient cooling system allows the machine to work in ambient temperature up to 50 ºC
-Shunt tank provides constant system pressure and provides easy visual check of coolant level
Vibratory Hydraulic System
-Closed center hydraulic system
-Improves efficiency by 20% over the open center system
-Reduces oil contamination, prolongs life of hydraulic system
-Maintains higher pressure and smaller energy loss
-Allows for simpler hose routing
-Requires smaller volume hydraulic tank, reduces maintenance cost
-World class vibratory hydraulic components
-SEM520 utilize Sauer piston pump and motor
Vibratory hose
-Utilize Eton hoses and joints, high reliability
-Optimized hose routing, prolongs hose life
Cat ® Product Link™
-Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.
Powertrain
-Electronically controlled transmission
-Easier to shift, reduces operator fatigue and improves working efficiency
High reliability
-Axle equipped with Proportional Torque differential (PTD)
-PTD controls torque applied to the wheels based on ground conditions, improves overall traction
-Grade ability is 34% compared to competitors' at 30%
-Optimized transmission ratio, 1st gear has higher travel speed
Dashboard
-Vibratory Frequency Meter
-Continuously displays machine compaction frequency
-Operator may select appropriate frequency to avoid excessive compaction
Three Level Alarm System
-Machine will diagnose system issues and notify the operator with 3 levels of warning indicator lights and audio alarms
Tiltable Cab
SEM offers a tiltable cabin which provides more convenient maintenance of the pump, transmission, hose and electronic components
Hydraulic tiltable cab is optional
Qingdao Chary Machinery CO., LTD
Call:+86 150 5328 9929
MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU
Qingdao Chary Machinery CO., LTD
Call:+86 150 5328 9929
WHY CHOOSE US?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.
Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.
Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.
OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

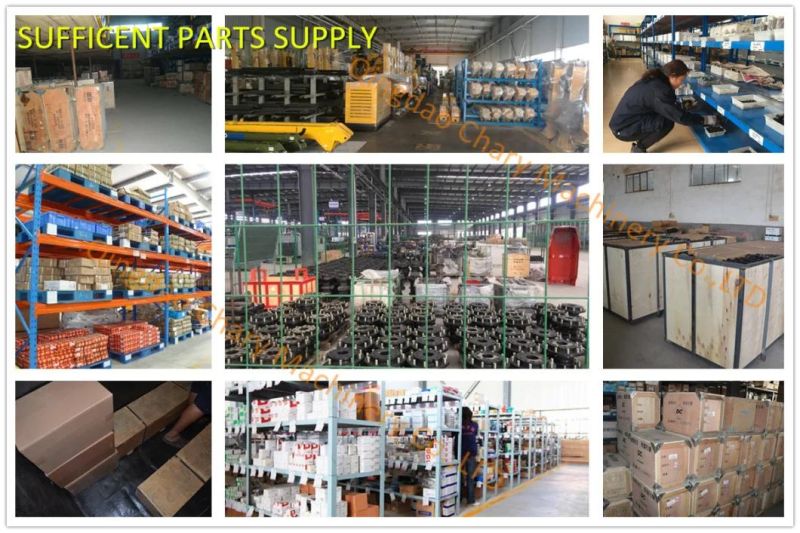

(6) Spare Parts Supply:
