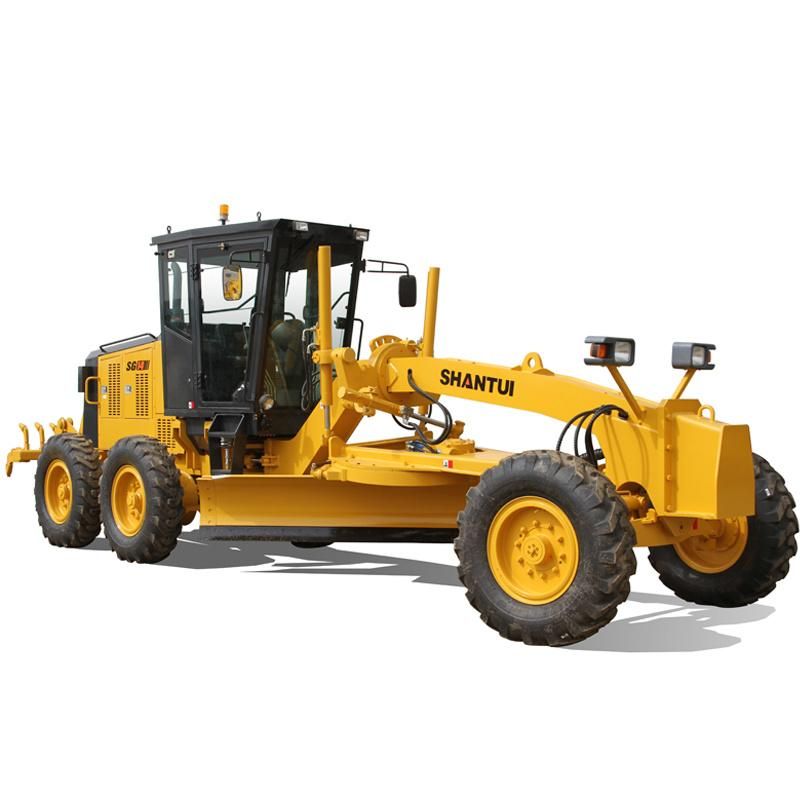

11.6 Ton Shantui Motor Grader (Sg14) for Sale with CE Approved

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service:Available
  • Warranty:2 Years
  • Certification:CE
  • Condition:New
  • Application:Railway, Mine, Farmland, Highway
  • Transmission:Hydraulic

Base Info

  • Model NO.:Sg14
  • Walking Mode:Wheeled
  • Type:Small Grader
  • Transport Package:Nude
  • Specification:As below
  • Trademark:Shantui
  • Origin:Hunan
  • HS Code:843229000
  • Production Capacity:1000 Pieces,Month

Description

Basic Info.

Model NO. Sg14 Walking Mode Wheeled Type Small Grader Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 843229000 Production Capacity 1000 Pieces/Month

Product Description

 Various brands and prices available, just send me inquiry, product list will be offered!!!Power System

It's powered by Dongfeng Cummins 6BTAA5.9-C180 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.

The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.


Driving/Riding Environment

The high-grade full-sealed luxury cab with full visual field and the high-efficiency shock-absorbing seat maximize the operating comfort.

The cab and the main frame are connected by shock absorber to ensure the operating safety and reliability.


Working adaptability

With 6 forward gears and 3 reverse gears, the electro-hydraulically controlled power shift transmission can select the optimal gear based on the working road condition to realize the best match between traveling and operation.

The integral three-segment drive axle is built internally with imported no-spin automatic limited slip differential to guarantee stable and reliable drive.

The balance box is capable of 15° angular swing in vertical direction and the heavy-duty roller chain drive guarantees better terrain adaptability of the machine. It can meet the normal operations under special road conditions, featuring stable power output and strong drive force.

Product nameSG14
Performance parameters
Operating weight of machine (kg)11600
Wheelbase (mm)5812
Wheel tread (mm)2050
Minimum ground clearance (mm)430
Steering angle of front wheels (°)±45
Articulated steering angle (°)±25
Maximum traction force (kN)65(f=0.75)
Turning radius (mm)6600 (Outer side of front wheel)
Maximum gradeability (°)20
Width of shovel blade (mm)3660
Height of shovel blade (mm)615
Blade slewing angle (º)360
Blade cutting angle (º)30-68
Maximum digging depth of blade (mm)500
Length (mm)8036
Width (mm)2380
Heigh (mm)3170
Engine
Engine model6BTAA5.9-C150
EmissionChina-II
TypeMechanical direct injection
Rated power/rated speed (kw/rpm)112kW/2200
Drive system
Torque converterSingle-stage single-phase three-element
TransmissionCountershaft power shift
GearsSix forward and three reverse
Speed for forward gear I (km/h)5.4
Speed for forward gear II (km/h)8.3
Speed for forward gear III (km/h)13.2
Speed for forward gear IV (km/h)20.6
Speed for forward gear V (km/h)29.6
Speed for forward gear VI (km/h)44
Speed for reverse gear I (km/h)5.4
Speed for reverse gear II (km/h)13.2
Speed for reverse gear III (km/h)29.6
Brake system
Service brake typeHydraulic brake
Parking brake typeMechanical brake
Brake oil pressure (MPa)10
Hydraulic system
Working pumpConstant displacement gear pump, with flow at 28ml/r
Operating valveIntegral multi-way valve
Pressure setting of safety valve (MPa)16
Pressure setting of safety valve (MPa)12.5
Filling of fuel/oils/fluids
Fuel tank (L)220
Working hydraulic fuel tank (L)85
Transmission (L)28
Drive axle (L)28
Balance box (L)2X23

Construction Case Picture
