Strongbull Py9100 100HP Motor Grader

Hebei Xiaojiangniu Engineering Machinery Co., Ltd.
  • Certification:TUV, UL, ISO, RoHS, CE
  • Condition:New
  • Application:Railway, Mine, Farmland, Highway, Road Construction Equipment
  • Transmission:Hydraulic
  • Walking Mode:Wheeled
  • Type:Small Grader

Base Info

  • Model NO.:PY9100
  • Transport Package:Nude
  • Specification:100hp 7 tons
  • Trademark:Strongbull,CGMG
  • Origin:China
  • HS Code:8429209000
  • Production Capacity:500000pieces,Year

Description

Overall dimensionL×W×H5900×2050×3150mmMini ground clearance of front axle440mmGround clearance of rear axle380mmWheel tread1685mmwheel base4155mmLength of blade3736mmWheelbase of rear axles1410mmEngineBrandCummins 4BTA3.9-C100Rated power/speed100hp/2400Certified capacity4.8LMinimum fuel consumption rate≤225g/(kw.h)Overall parametersOverall weight7000kgMax.swinging angle of front axle±16°Ma.steering angle of front wheel±45°Steering angle of articulated frame±23°Cutter diameter1250mmCutter size(L×H×T)2736×480×18mmSwing angle of balde360°Ground clearance of blade450mmCutting depth of blade260mmIncination angle of bladeForward 47°/backward 5°Sliding range of bladeLeft 550/right 550mmHydraulic systemTypeOpen-type systemSystem pressure16LFill capacityFuel90LHyfraulic oil70L

Strongbull Py9100 100HP Motor Grader

3.Warranty and payment term

1) Payment terms: T/T
2) Delivery time: in 15-30 days after we receive the deposit
3) Warranty period:1 year or 2000 working hours which comes first.
Strongbull Py9100 100HP Motor Grader

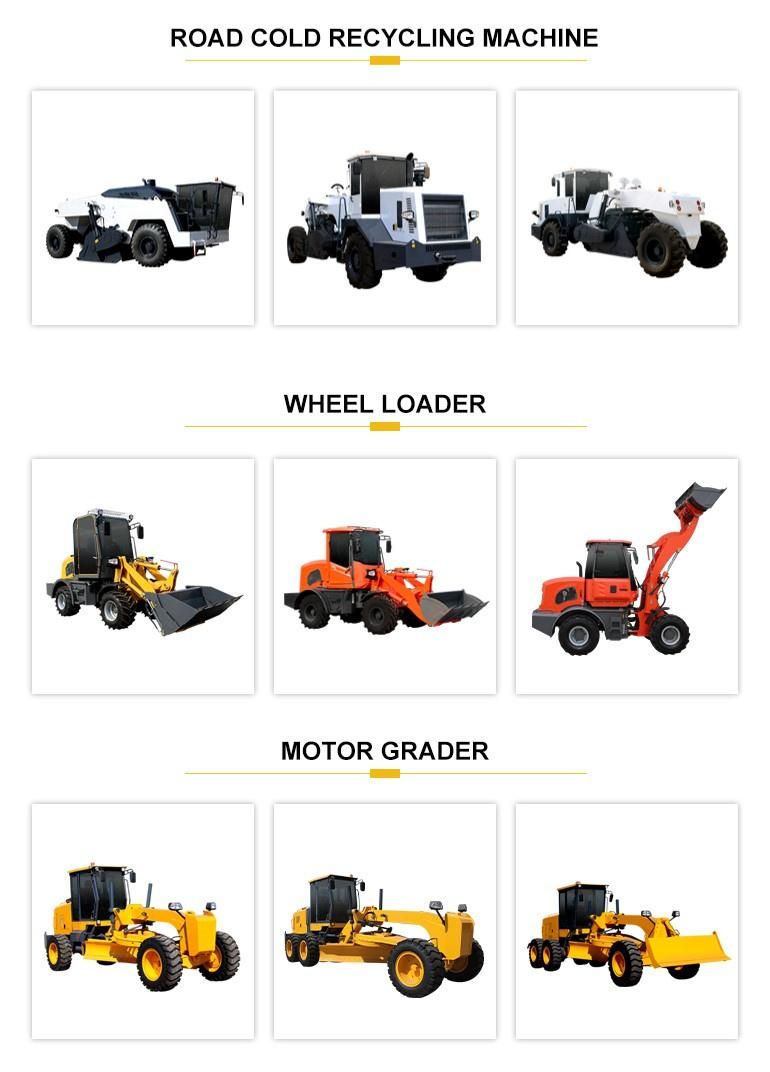

4.Other products

1) We have 220HP 200HP 180HP 160HP 140HP 130HP 120HP 100HP 80HP Motor Grader for sale.
2) We have ZL08F, ZL12F, ZL16, ZL20/ZL26, ZL22/ZL30, ZL25/ZL33, ZL28/ZL36, ZL30/ZL939, 0.8T 1.0T 1.2T 1.5T 1.6T 1.8T 2.0T 2.5T 2.8T 3.0T Wheel loader for sale.
3) we have road mixer, backhoe loader.


Strongbull Py9100 100HP Motor Grader


5.Exhibition and Customers visiting our factory
Strongbull Py9100 100HP Motor Grader



Strongbull Py9100 100HP Motor Grader

6.FAQ


Q1.: What's the MOQ?

A: Min.Order Quantity:1 unit;
More than 3 units we provide OEM service.


Q2.: What's your delivery time?

A: Within 25-30 days after receipt of deposit.


Q3.: Can I print my own logo?

A: Yes,we offer OEM service and we provide one-on-one designing assistance.


Q4.: Can I take a sample for quality check?

A: Yes,you could buy 1 unit to test quality.


Q5.: What dose your factory do regarding quality control?

A: Quality is priority!
Firstly,we have CE,EPA,ROPS,FOPS,TUV,SGS,EMC certificate for all production process,we have standard rules.
Secondly,we have quality control team,two parts,one is in the factory to control producing ,the other is as third party,inspect the goods for our customers,once everything is ok,our logistics department can book the vessel,then ship it.
Thirdly,we have all detailed records for nonconformity products,then we will make summary according to these records,avoid it happen again.
Finally,we do observe the relevant codes of conduct &laws from government in environment human rights and other aspects like no children labor,no prisoners labor and so on.


Q6.: How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.



Q7.: I want to be your agent in my country , is that ok?

A: It's ok.



Thanks for your times and welcome to contact us: We promise to solve every problem from you in 24 hours.




QUALITY BEST !!!

Choose Strongbull, and then better after-service will be guaranteed.

Contact me right now for more information!  Online 24 hours a day!
