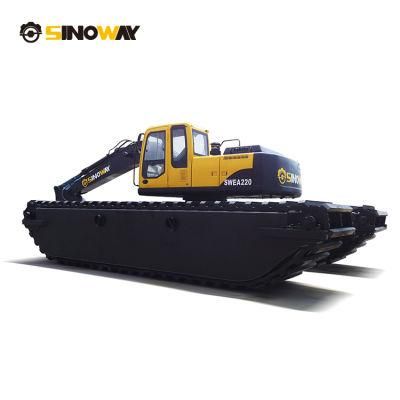

Long Rearch Doosan Amphibious Undercarriage Excavator with Dredging Bucket

Sinoway Industrial (Shanghai) Co., Ltd.
  • After-sales Service：Available
  • Warranty：One Year
  • Type：Crawler Excavator
  • Usage：Special Excavator, Marine Excavator, Mining Excavator
  • Bucket：Backhoe
  • Transmission：Hydraulic Transmission

Base Info

  • Model NO.：SWEA220
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：1.0~1.5m³
  • Size：Large-Scale
  • Certification：ISO9001: 2000, ISO14001
  • Condition：New
  • Model：Dx215
  • Engine：Doosan
  • Engine Power：155HP
  • Hydraulic System：Doosan
  • Operating Weight：30.5 Ton
  • Chain Number：Three
  • Track Cleats：Bolted
  • Pontoon Longth：10m
  • Pontoon Width：1.8m
  • Pntoon Height：1.84m
  • Service Manhole：Optional
  • Painting：Epoxy Painting
  • Additional Pontoons：Optional
  • Spud Pile：Optional
  • Transport Package：Nude
  • Specification：ISO2008
  • Trademark：SINOWAY
  • Origin：China
  • HS Code：84294090
  • Production Capacity：100 PCS , Year

Description

Engine ModelDoosanTypeSix-cylinder,water-cooled turbocharged,mechanical injectionRated power115KWRated speed2100rpmMain Technical Specification Operating weight30000~42000KgStandard bucket capacity0.5~1.1m³Slewing speed 11rpm11rpmStick digging force110KNBucket digging force150KNMain pumpDoosanMain valveDoosanMotorDoosanHydraulic flow rate2x235L/minHydraulic pressure32MPaTravelling System Travelling speed0~5.4km/hGrade ability65%Ground pressure0.0135MPaNo. of chains3Dimensions Overall length11200mmOverall width5350mmOverall height3900mmGround clearance1192mmLength of pontoon8500~10200mmWidth of pontoon1760mmHeight of pontoon1700mmOperating Scope Stick length3000mmA: Max. cutting height10980mmB: Max. dumping height8140mmC: Max. digging depth6940mmD: Max. reach10290mm
