Rubber Track Undercarriage for Drilling Rig

Ningbo Kingbonny Machinery Imp. & Exp. Co., Ltd.
  • Warranty：6 Months
  • Type：Crawler

Base Info

  • Model NO.：RT series
  • Application：Crawler Machine
  • Certification：ISO9001: 2000
  • Condition：New
  • Load Capacity：0.5-20ton
  • Transport Package：Pallet
  • Specification：ISO 9001: 2008
  • Trademark：Bonny Hydraulic
  • Origin：China
  • HS Code：8431499900
  • Production Capacity：1000sets Per Month
  • Package size per unit product：130.00cm * 50.00cm * 45.00cm
  • Gross weight per unit product：300.000kg

Description

MODEL

Dinamic
capacity

Static
capacity

Weight
kg.

Press.Bar

oil flow
L/min

Torque
Nm to
engine

Grad.

Speed
km/h

RT-1500

1200

1500

330

270

17

2000

65%

1.7

RT-2500

2500

3000

380

220

35

4723

65%

2/3.2

RT-3500

3500

4000

650

220

35

4723

65%

2/3.5

RT-5000

5000

6000

900

220

55

8330

65%

2/3.7

RT-6000

6000

7000

1280

220

55

8330

65%

2/3.7

RT-8000

8000

9500

1550

300

82

11700

65%

2.8/4.7



MODEL

A
Length

B
Center Distance

C
Height

D
Total Width

E
Width of track shoe

F
Height of Cross beam

No. of
roller

RT-1500

1420

1066

350

980

230

165

3+3

RT-2500

1850

1370

480

1220

250

245

4+4

RT-3500

1980

1511

500

1520

300

250

5+5

RT-5000

2500

1950

550

1800

350

265

6+6

RT-6000

2905

2355

550

1800

400

265

7+7

RT-8000

2950

2450

600

1800

400

310

7+7

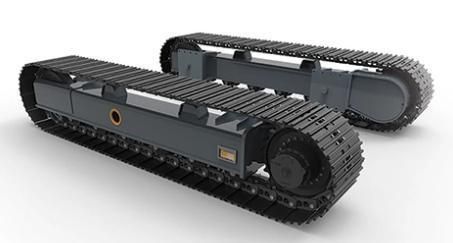

Bracketed Frame

Rubber Track Undercarriage for Drilling Rig


A bracketed frame with machined plates provide a simple bolt on interface reducing assembly time. Standard bracketed models are available in many sizes.

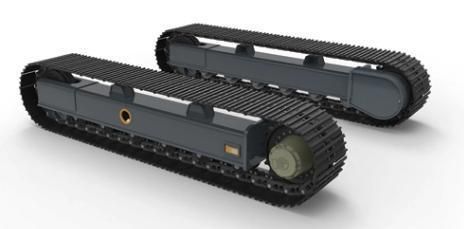

Weld-On Frame (Unbracketed)

Rubber Track Undercarriage for Drilling RigA plain sided frame for your own connection method. This style can be incorporated into your chassis design allowing for the narrowest machine width. Our substantial frames allow a secure interface.

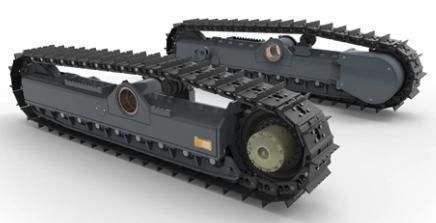

Oscillating Frame

Rubber Track Undercarriage for Drilling Rig

Oscillating frames, typically found on drilling rigs, precision manufactured to your specific requirements, or a collaboratively engineered solution.

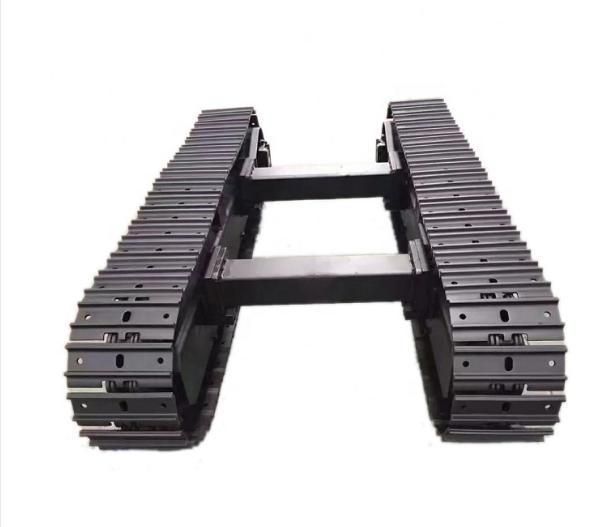

Cross Beam Track Systems

Rubber Track Undercarriage for Drilling Rig

Our fabricated cross beam chassis design offers the customer the ultimate in assembly simplicity. This connection method allows the machine to simply be placed on top and fixed in place.



FAQ



 1. Are you the manufacturer or trader of crawler undercarriage?

We are the manufacturer with more than 20 years experience engaged in designing and manufacturing of rubber crawler track undercarriage.

2. How long is the delivery?

Usually it is 20 days for the production.

3. What's the warranty of your product?

We can offer you 12 months quality guarantee period after receipt of product.

4. Can you custom make the product?

Yes, all dimensions and specifications of rubber crawler track undercarriage can be designed and made based on your requirements.

5. How to order?

To make sure the offered rubber crawler undercarriage is suitable for your application, please offer the following details:

1. Rubber or steel track undercarriage:

2. What is the payload of undercarriage:

Note: it is the weight of machine excluding the weight of undercarriage.

3. length of track undercarriage (mm):

4. width of each side of track undercarriage (mm):

5. height of track undercarriage (mm):

6. total width of track undercarriage (mm):
7. working flow rate per each side of undercarriage (L/min):
8. working pressure (MPa):

9. travelling speed (km/hr):

10. climbing capacity:
