• Model NO.：H280x72x47
• Width：280mm
• Pitch：72mm
• Link：47
• Color：Black
• Transport Package：Wood Pallet or Bare Packaging
• Specification：280x72x47
• Trademark：No Marks or As Buyer′s Requests
• Origin：Shanghai, China
• HS Code：8431499900
• Production Capacity：5000 Pieces,Month

Basic Info.

Model NO. H280x72x47 Width 280mm Pitch 72mm Link 47 Color Black Transport Package Wood Pallet or Bare Packaging Specification 280x72x47 Trademark No Marks or As Buyer′s Requests Origin Shanghai, China HS Code 8431499900 Production Capacity 5000 Pieces/Month

Product Description

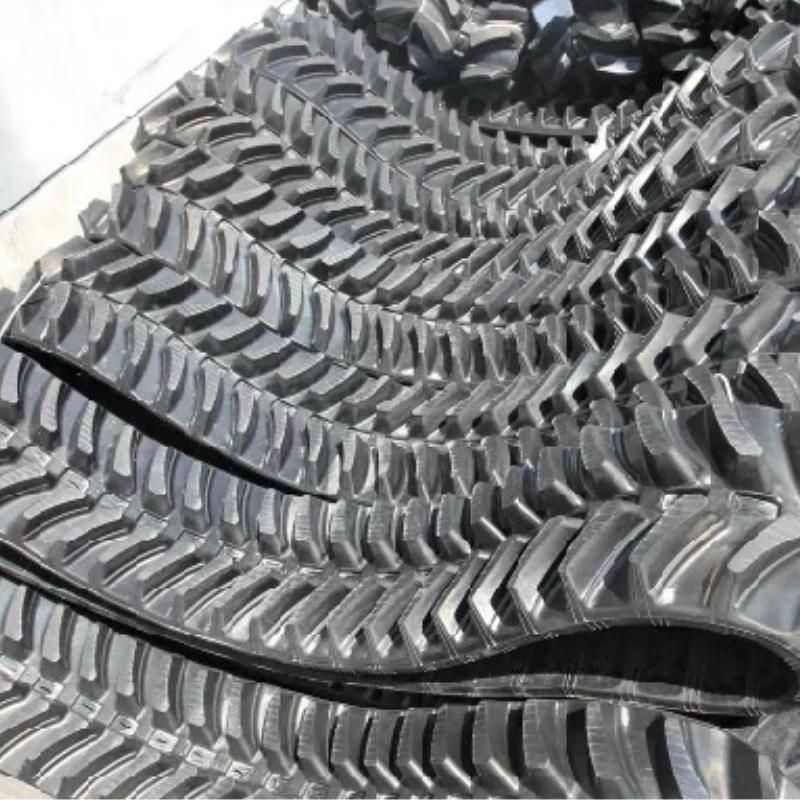

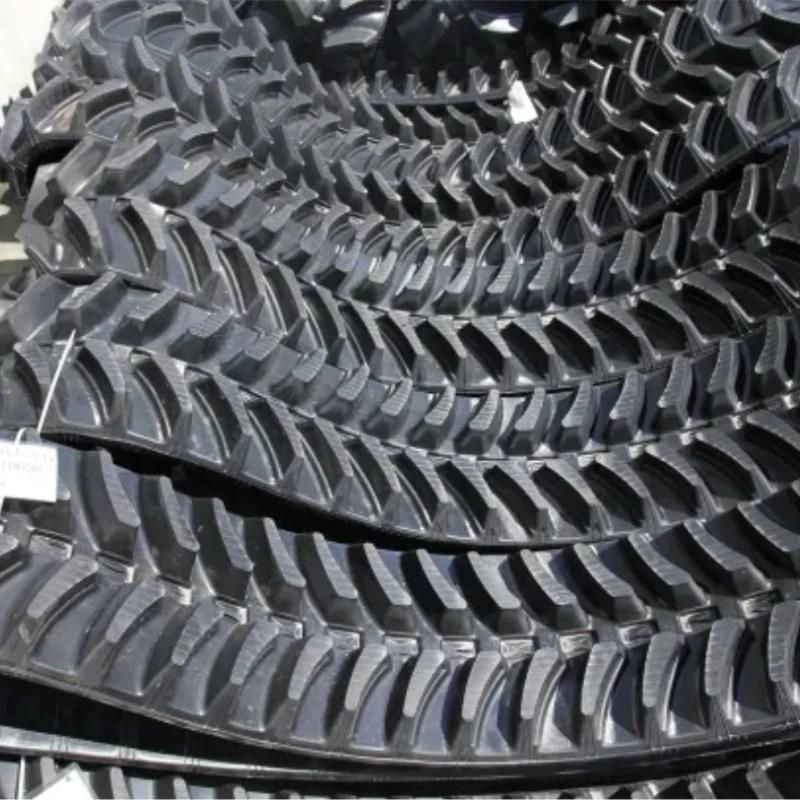

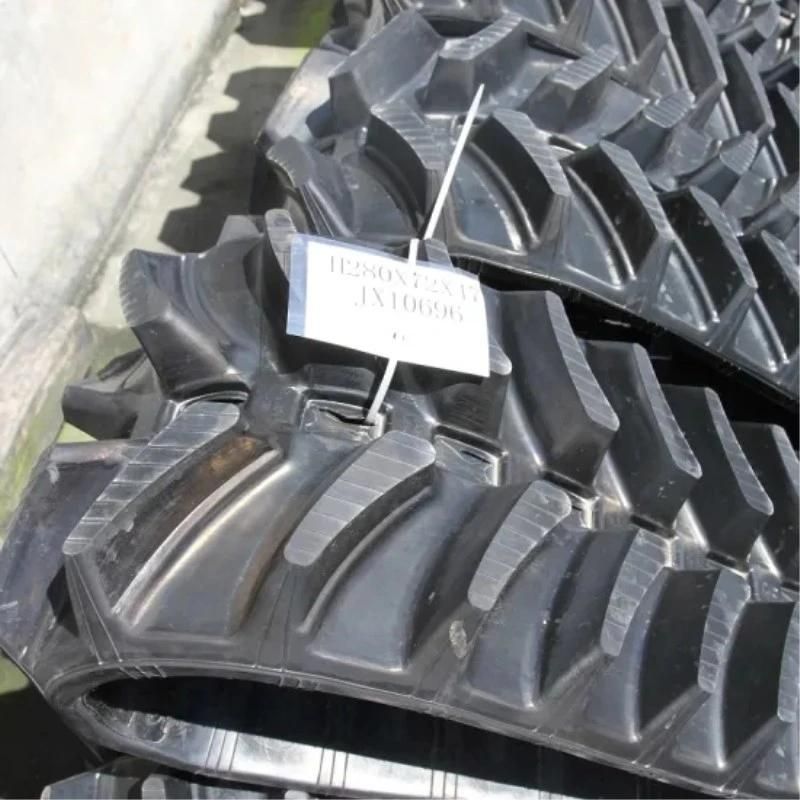

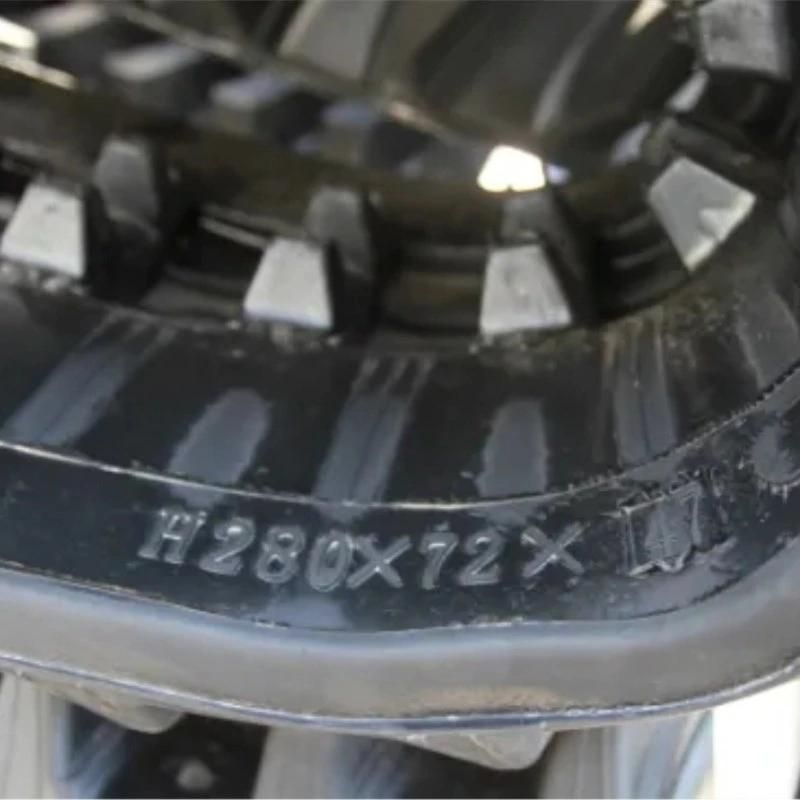

Rubber track 280x72x47 fits for sweeping machine ENERGREEN ROBOGREEN

Applicable machines	various kinds of excavators
Material	rubber and steel
Specification	280x72x47(can be customized)
Installation position	Installed on the sweeping machine

Product characteristics:

1. Rubber tracks cause less damage to roads than steel tracks, and less rutting on soft ground than steel tracks.

2. A benefit to equipment operating in congested areas, rubber tracks make less noise than steel tracks.

3. Rubber tracks permit machines to travel at a higher speed than steel tracks.

4. Rubber tracks insulated machine and operator from vibraion, exteding the service life of machine and decreasing operator's fatigue.

5. The ground pressure of rubbr tracks equipped machinery can be fairly low, about 0.14-2.30 kg/m2, a major reason for its use on wet and soft terrain.

6. The added traction of rubber tracked vehicles permits them to pull twice the load of wheeled vehicles of the same weight.

7. Rubber tracks' pulling performance being twice that of wheels, it permits the lighter vehicles equip with rubber track to do the same pulling work than that of wheeled vehicles.


The notices of using rubber tracks:

1. Adjust the tension of the rubber crawler so that the height, the variable range is 10-20mm when the machine is lifted. Readjust when the tension decreases. (Be careful because the rubber crawler may come off if the tension is too low).

2. Avoid projection from the frame around the rubber crawler, especially on its inner circumference. (Rubber crawlers are easily deformed; If it comes into contact with the frame, an accident such the rubber being cut can occur).

3. Avoid sharp projections when traveling.

4. Avoid turning too fast on concrete roads with a high coefficient of frction because this can cause accidents such as cutting the rubber.

5. Be careful that no oil, etc adheres to the rubber track. If it does, wipe it off immediately.

6. When storing for long periods, keep indoors, away from direct sunshine and rain.

7. Replace as soon as possible when abrasion of sprockets is observed.


 Fit for more models as below:


NO.:	SIZE	NO.:	SIZE	NO.:	SIZE
1	150X72	23	300X55	45	400X75.5
2	180X60	24	300X55.5	46	400X107K
3	180X72	25	300X109K	47	400X142K
4	180X72K	26	300X109N	48	420X100
5	200X72	27	300X109W	49	450X71
6	200X72K	28	320X54	50	450X73.5
7	230X48	29	320X84	51	450X76
8	230X72	30	320X86	52	450X81N
9	230X96	31	320X90	53	450X81W
10	250X47	32	320X100	54	450X83.5
11	250X48.5Y	33	320X106	55	450X83.5Y
12	250X52.5K	34	350X54.5	56	450X84K
13	250X72	35	350X56	57	450X86
14	250X96	36	350X56R	58	450X100
15	260X96	37	350X75.5	59	450X163
16	260X109	38	350X109	60	500X90
17	280X72	39	370X107	61	500X92
18	280X106	40	400X72.5K	62	600X100
19	300X52.5K	41	400X72.5N	63	700X100
20	300X52.5N	42	400X72.5W	64	750X150
21	300X52.5W	43	400X72.5Y	65	800X150

Rubber track warranty

 Rubber Tracks are 12 months warranty,If there is any quality problem,during the warranty period,we are responsible for the replacement of the new rubber track,just need to provide photos of the tracks as they sit on the machine and serial number on the tracks.

Company introduction:

Serving since 2000,POOYERT has been supplying the construction industry with premium grade replacement rubber track and rubber pads that can be widely applied in construction machinery,agricultural machinery and other specialized vehicles.

Made of all natural rubber and high quantity synthetic rubber compounds including carbon black,and continuous steel cords that are protected with thick vulcanized rubber,POOYERT leads the way in today's modem track manufacturing.POOYERT tracks are produces under strict quality guidelines and have ISO9001 Accredited Certification.

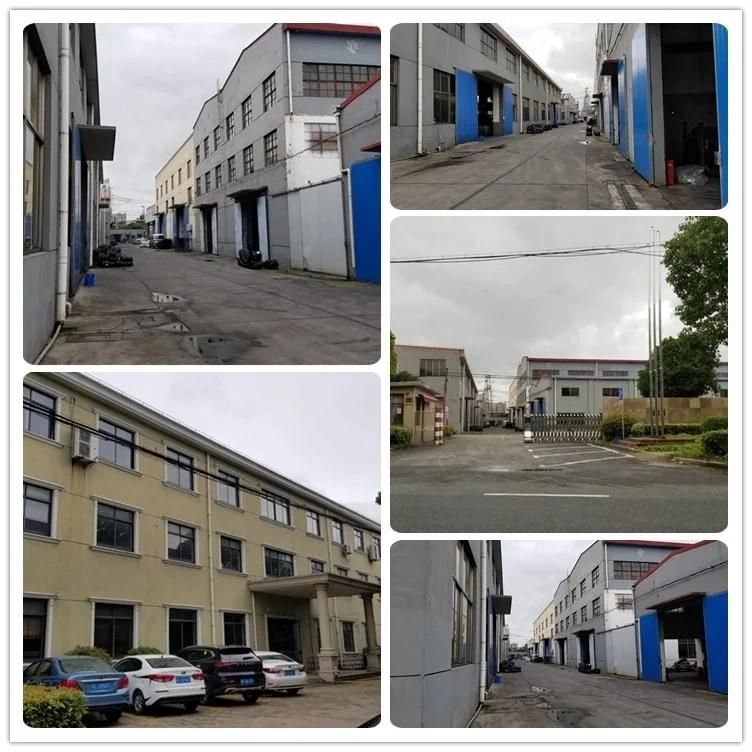

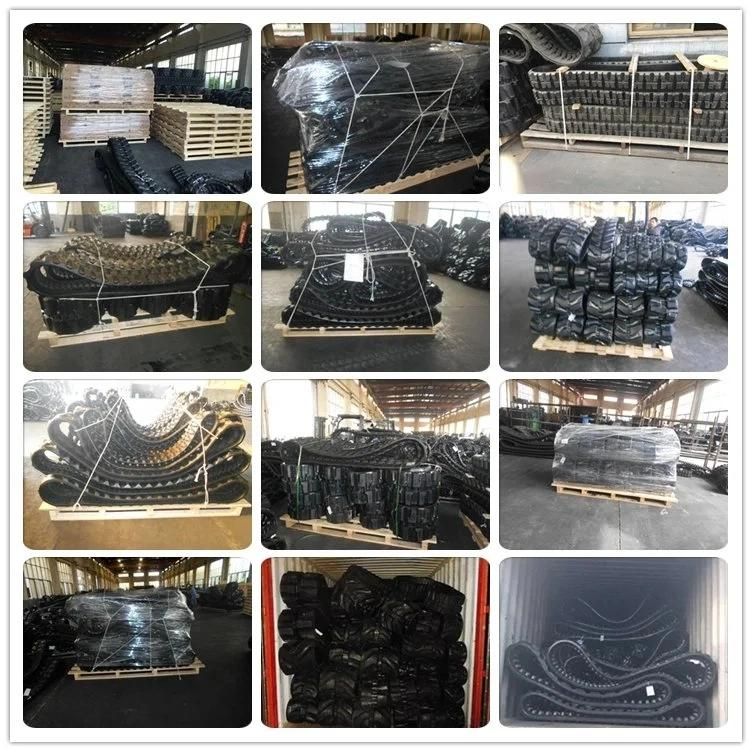

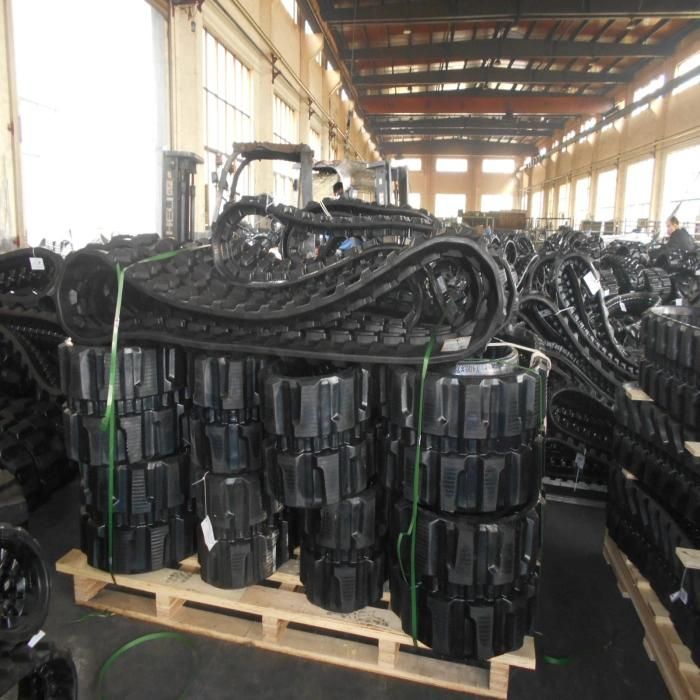

Warehouse:
