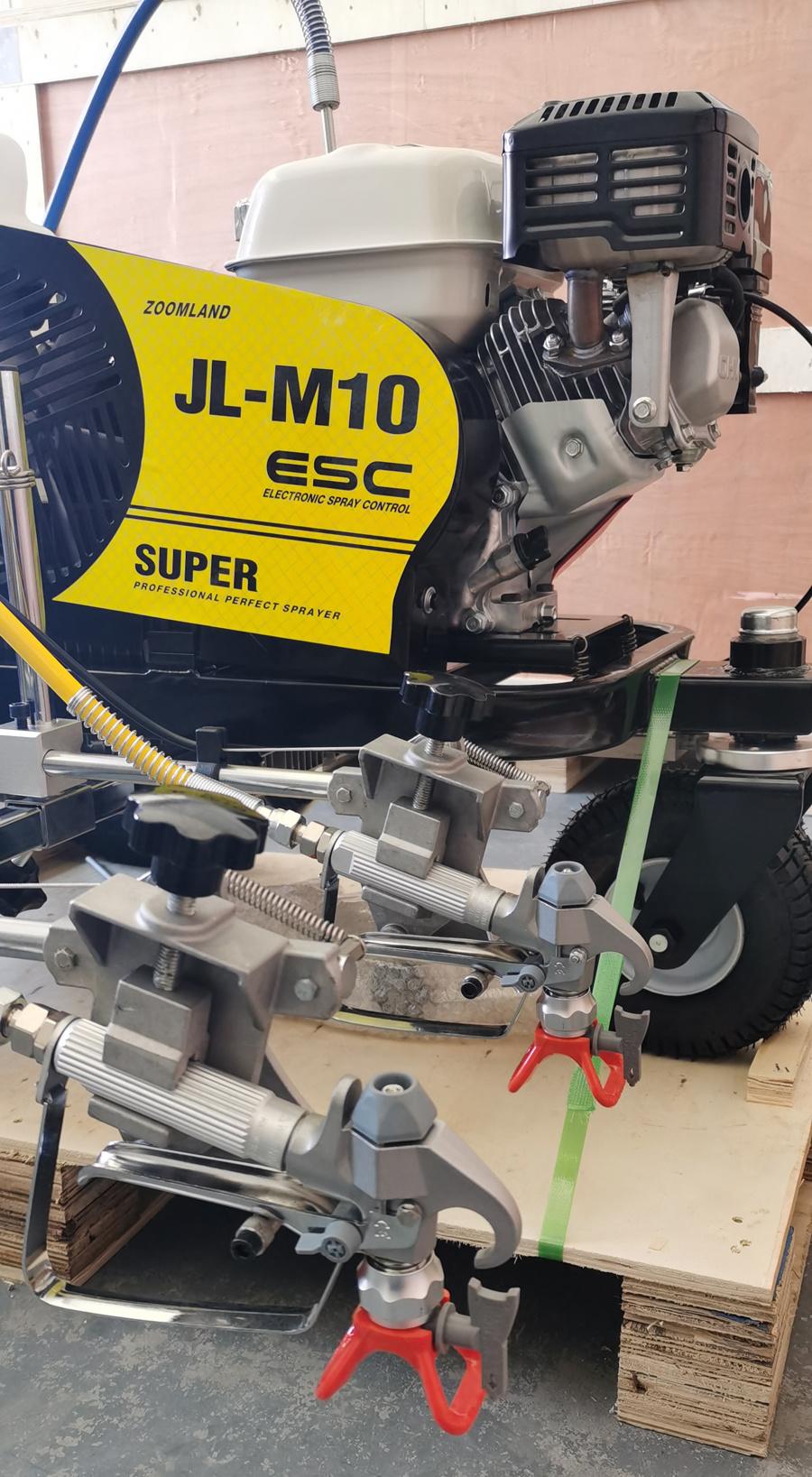

Gasoline Road Marking Line Machine with Hydraulic Piston Pump for Line Marking
FUZHOU ZOOMLAND IMPORT AND EXPORT TRADE CO., LTD.- After-sales Service：1 Year for Core Components
- Warranty：1 Year Machinery Warranty
- Type：Marking Vehicle
- Object：Road Line Marking
- Moving Type：Fixed
- Mixing Method：Continuous Drum
Base Info
- Model NO.：JL-M10
- Automatic Grade：Non-Automatic
- Certification：CE
- Condition：New
- Gasoline Engine：6.5 HP
- Max. Working Pressure：250 Bar
- Max. Displacement：10 L,Min
- Max. Marking Width：500-700 mm
- Transport Package：Wooden Pallet
- Specification：82*102*65cm
- Trademark：ZOOMLAND
- Origin：Fuzhou, China
- Production Capacity：500 Sets,Month
Description
Basic Info.
Model NO. JL-M10 Automatic Grade Non-Automatic Certification CE Condition New Gasoline Engine 6.5 HP Max. Working Pressure 250 Bar Max. Displacement 10 L/Min Max. Marking Width 500-700 mm Transport Package Wooden Pallet Specification 82*102*65cm Trademark ZOOMLAND Origin Fuzhou, China Production Capacity 500 Sets/MonthProduct Description

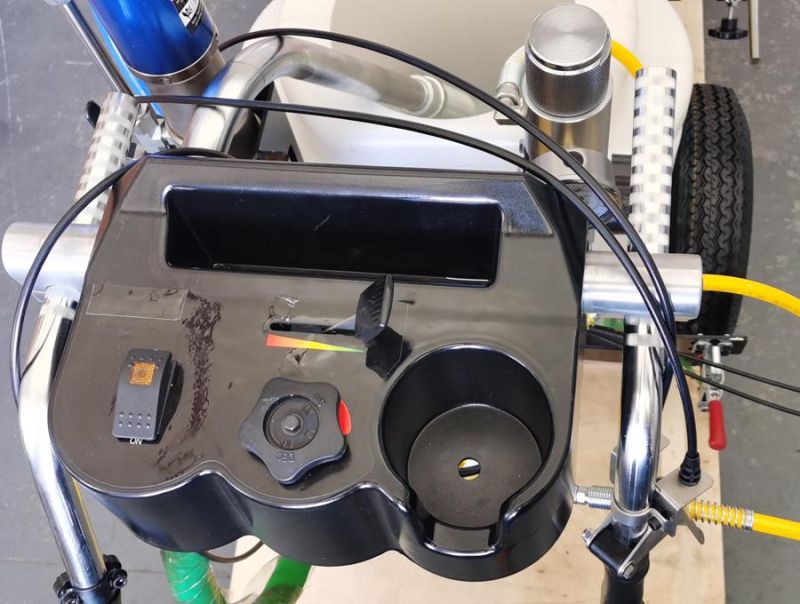

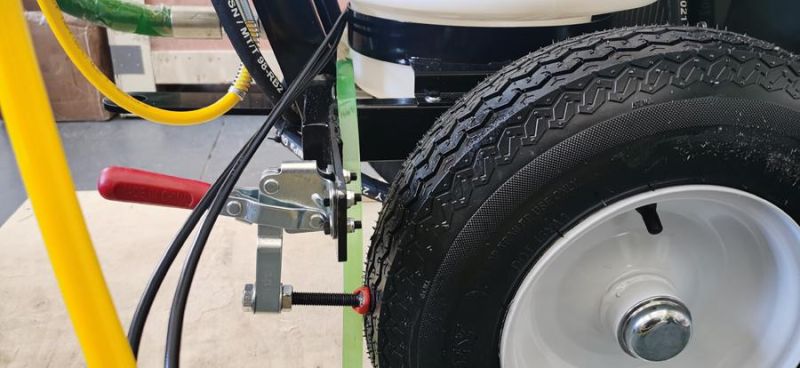

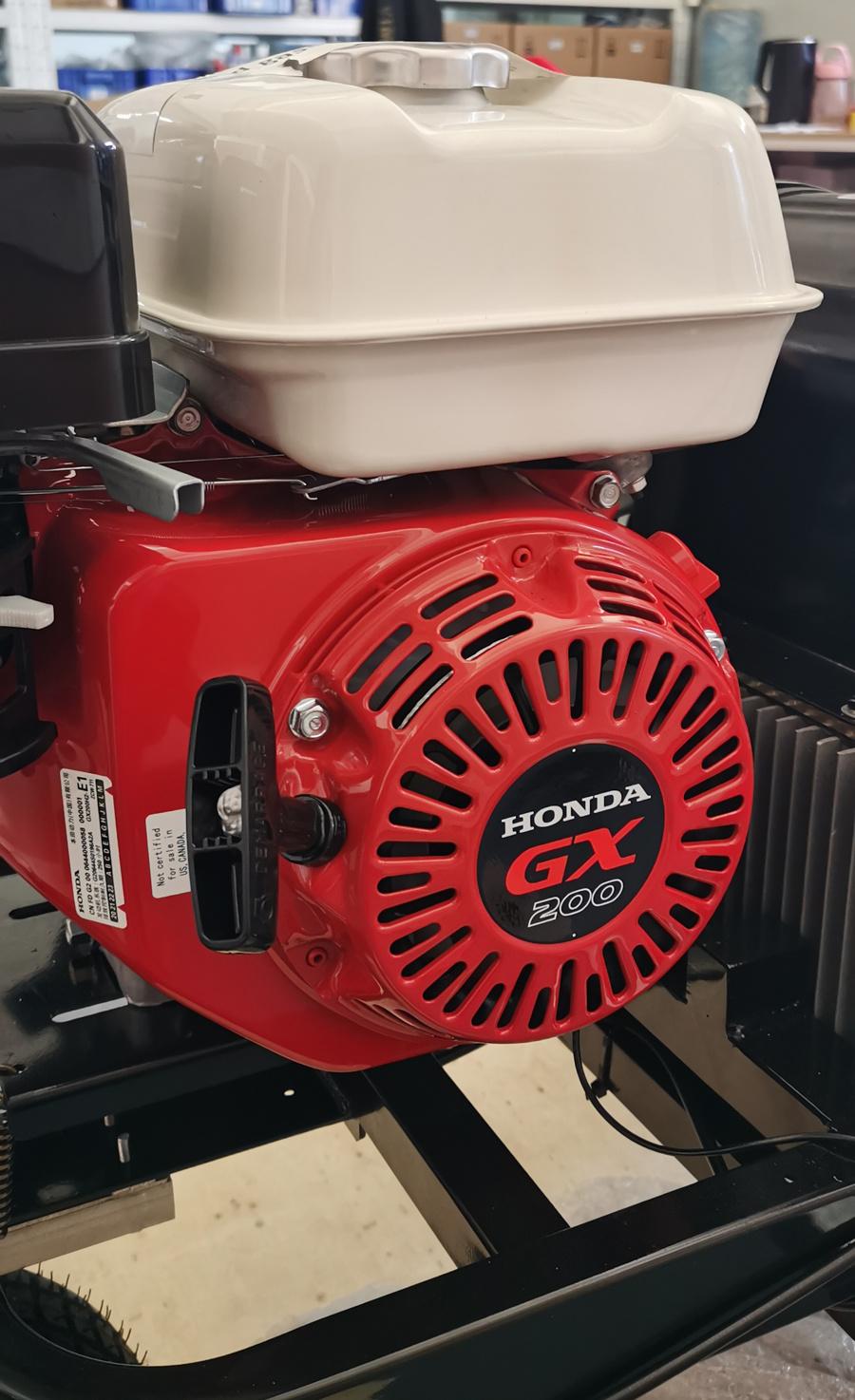

1. Features :1). Powerful Engine Gx200 Honda Engine2). Hydraulic Cooling System3). Long-life Hydraulic Motor4). Multi-Function Control Board5). Strong Power and High Stability6). Quick-Resemble Spray gun Holder7). 360°Adjustable front wheel8). Vehicle Warning Light ,Eusure safe driving
Come with :Spray gun * 1 pc Spray Hose * 1 pc Spray tip * 2 pcsTool box*1 set
2. Technical Specifications:
| Gasoline Engine | Max. Working Pressure | Max. Marking Width (cm) | Max Displacement ( L/min) | Nozzle Support ( Inch) | Net Weight ( kgs) | Gross Weight (kgs) |
| 6.5HP | 250 Bar | 50-70 | 10 | 1.Single Gun:0.046" 2. Double Gun:0.033" | 180.00 | 200.00 |
